6-4. Wiring Optional 120/240 Volt Plug
120 813-D

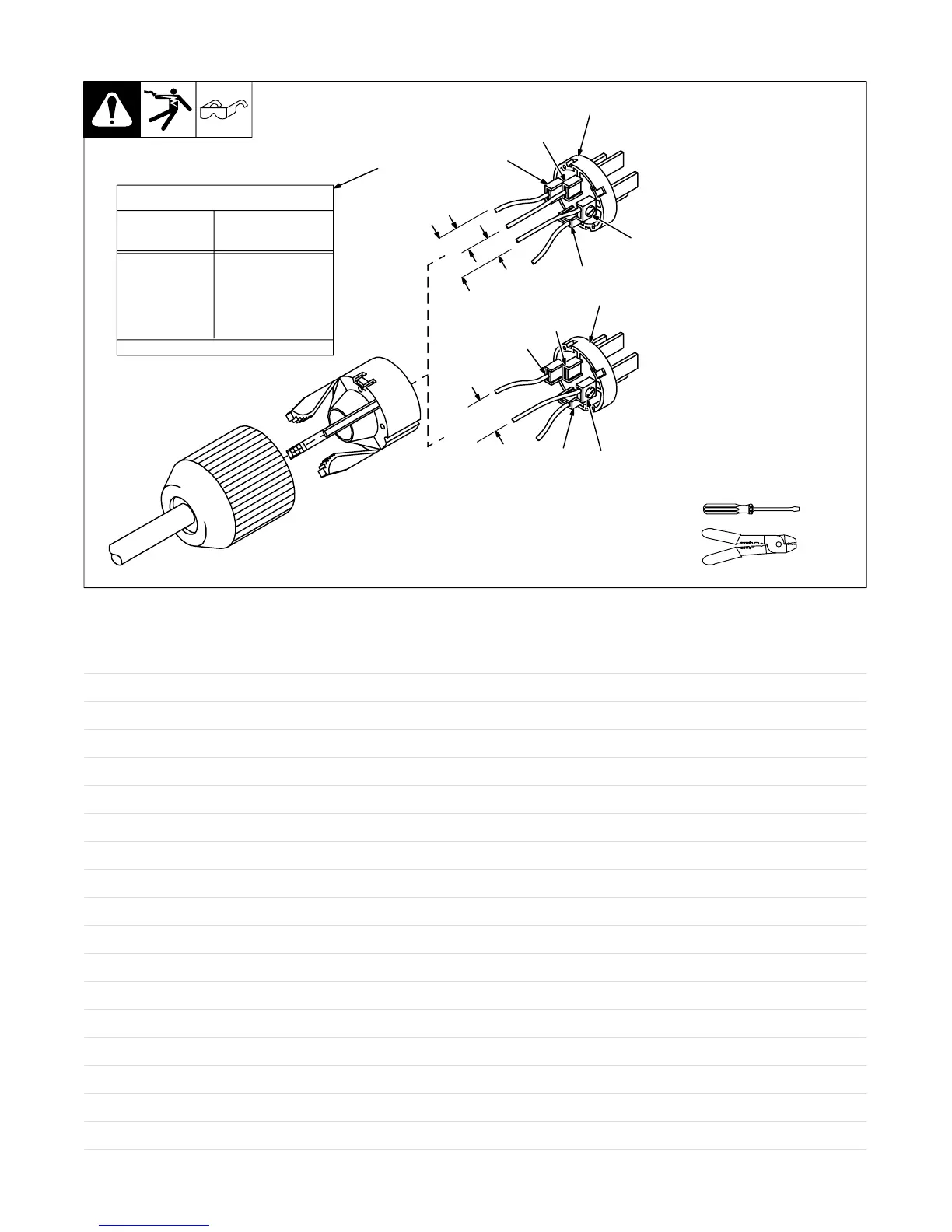

The plug can be wired for a 240 V,
2-wire load or a 120/240V, 3-wire
load. See circuit diagram.
1 Plug Wired For 120/240 V,
3-Wire Load
When wired for 120 V loads, each
duplex receptacle shares a load
with one half of 240 V receptacle.
2 Plug Wired For 240 V, 2-Wire
Load
3 Neutral (Silver) Terminal
4 Load 1 (Brass)Terminal
5 Load 2 (Brass) Terminal
6 Ground (Green) Terminal
7 Amperes Available Using
120/240 V Plug
1
2
3
4
5
6
3
4
5
6
240V
240V
120V
120V
*One 240 V load or two 120 V loads.
7
Current Available In Amperes
240 V
Receptacle*
Each 120 V Duplex
Receptacle
V x A = Watts
35
30
25
20
15
0
5
10
15
20
Tools Needed:
Notes
