OM-404 Page 11

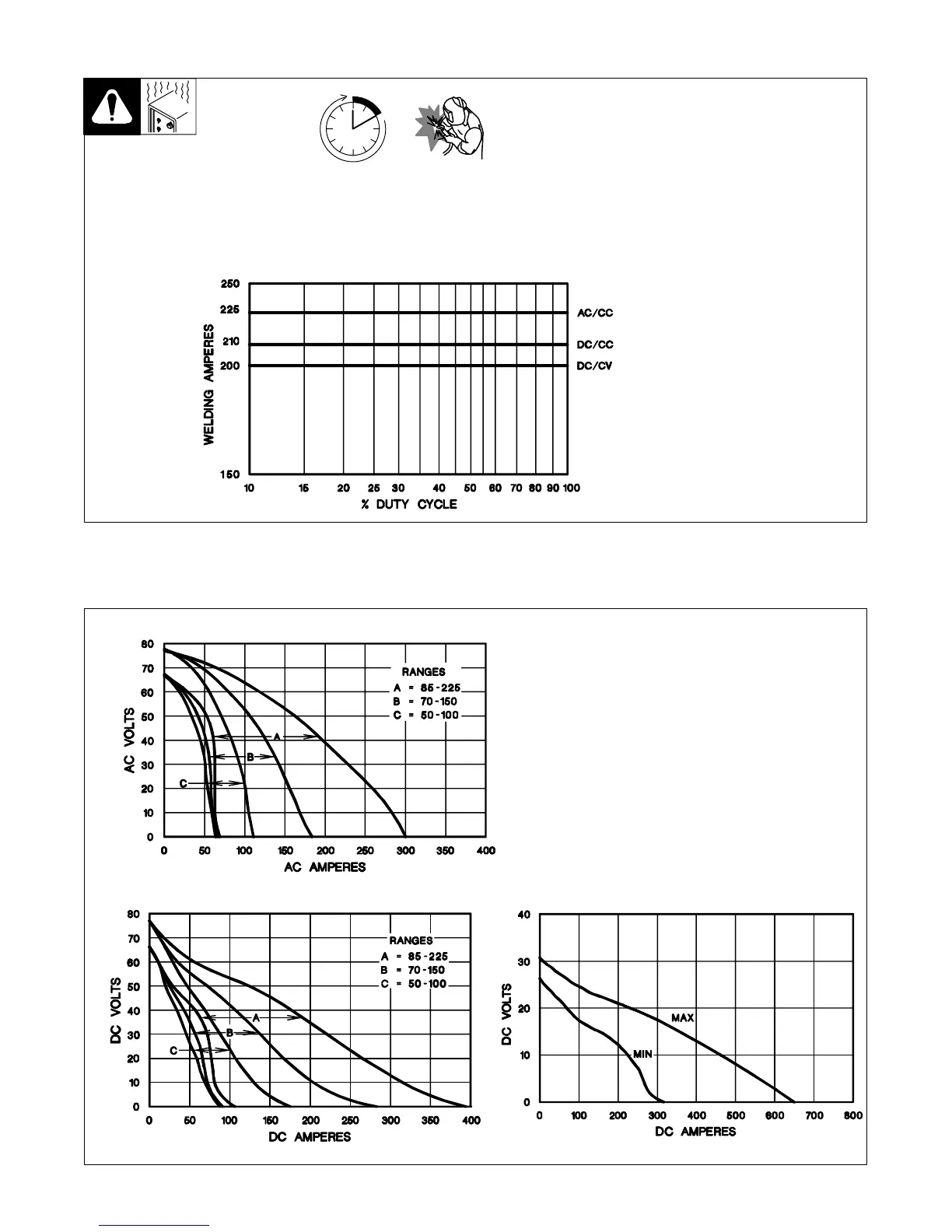

3-5. Duty Cycle
Continuous Welding
SB-119 454-A
Duty cycle is the percentage of 10
minutes that unit can weld at rated
load without overheating.
Exceeding duty cycle can
damage unit and void
warranty.
100% Duty Cycle at 225 Amperes CC/AC, 210 Amperes CC/DC, 200 Amperes CV/DC
3-6. Volt-Ampere Curves
166 024-A / 166 025-A / 166 026-A
The volt-ampere curve shows the
minimum and maximum voltage
and amperage output capabilities of
the welding generator. Curves of all
other settings fall between the
curves shown.
A. For CC/AC Mode
B. For CC/DC Mode
C. For CV/DC Mode
