OM-404 Page 27

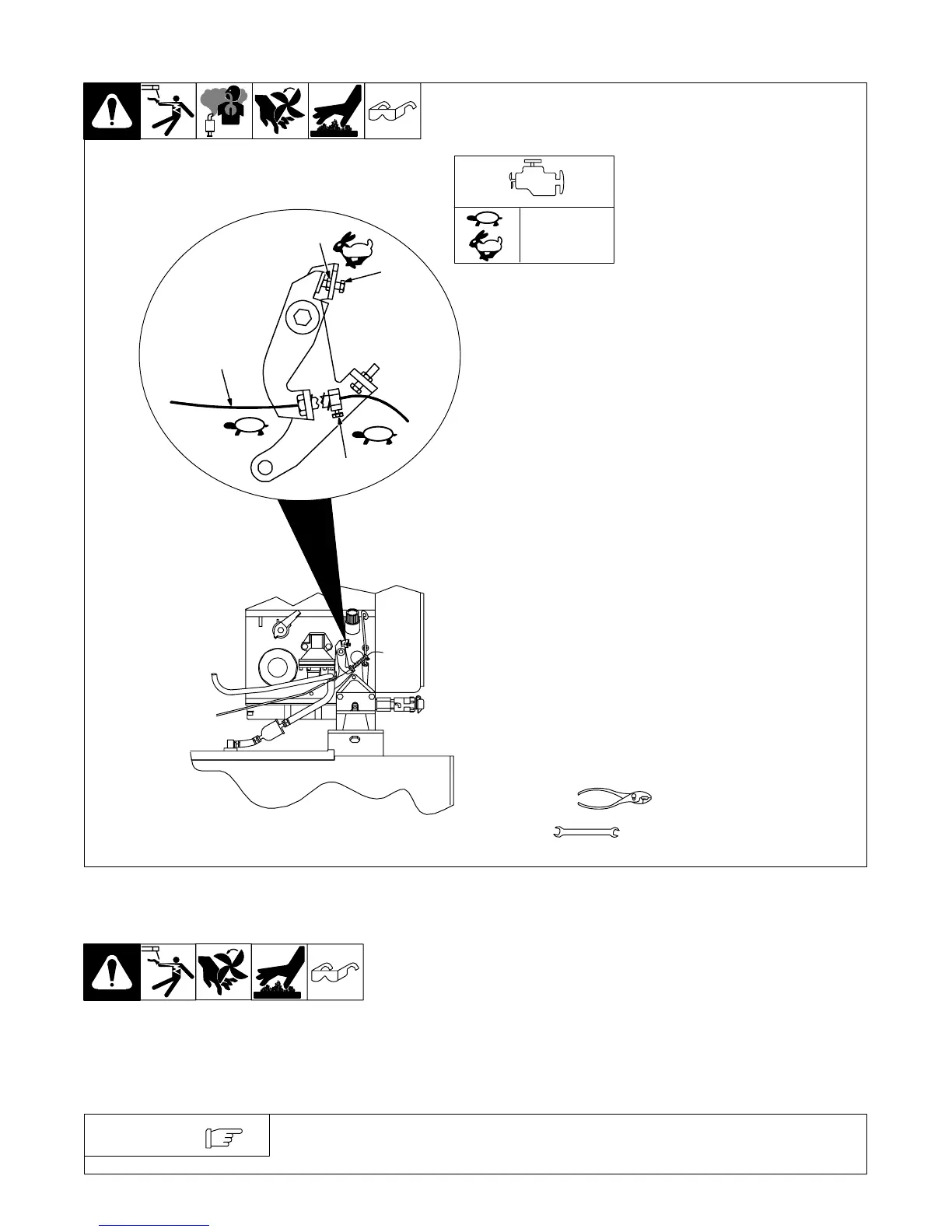

7-5. Adjusting Engine Speed
Ref. 801 434-A
Engine speeds have been factory
set and should not require adjust-
ment. After tuning engine, check
engine speeds with a tachometer.
See table for proper no load engine
speeds. If necessary, adjust
speeds as follows:
Idle Speed Adjustment:
1 Throttle Cable
2 Throttle Cable Stop Screw
Start engine and run at idle speed.
Loosen screw and adjust cable until
engine runs at correct idle speed.
Do not allow slack in cable. Tighten
screw.
Weld/Power Speed Adjustment:
Run engine at weld/power speed.
3 Weld/Power Speed Screw
4 Weld/Power Speed Jam Nut
Loosen jam nut. Turn screw clock-
wise to decrease speed and coun-
terclockwise to increase speed.
Tighten jam nut.
Stop engine.
2000 rpm
3750 rpm
1/4 in, 8mm
3
4
2
1
Right Side
Tools Needed:
7-6. Overload Protection
A. Time Delay Relay CB7 And Fusible Link (Optional With Glow Plug)
Internal time delay relay CB7 and the fusible link protect the optional glow plug system from overheating. If glow plugs
overheat, CB7 automatically stops the heating process. Wait one minute for CB7 to automatically reset before using
glow plugs.
If the engine is hard to start in cold weather, check the fusible link and replace if open.
When a circuit breaker or fuse opens, it usually indicates a more serious problem
exists. Contact a Factory Authorized Service Agent.
NOTE
