OM-404 Page 28
B. Circuit Breaker CB8

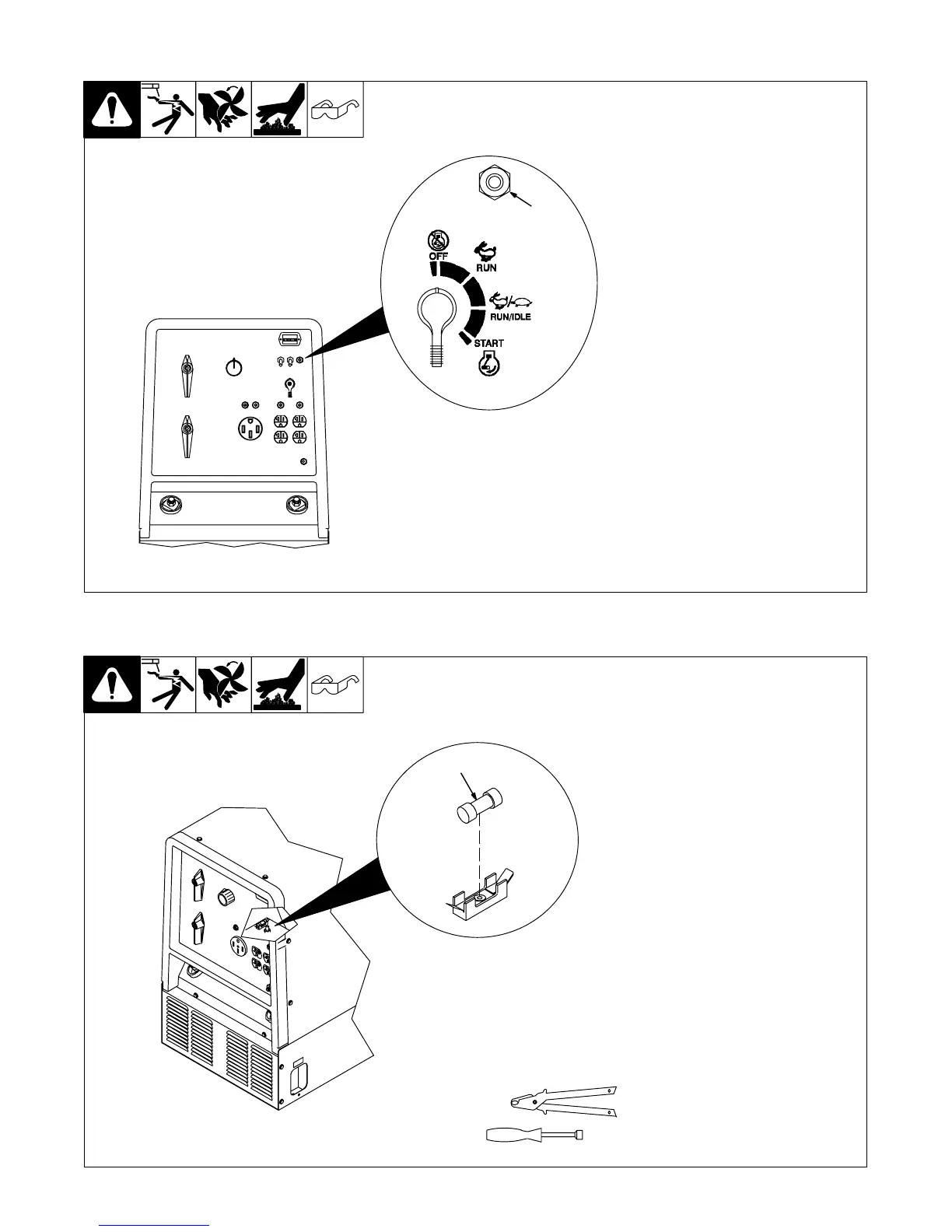

1 Circuit Breaker CB8
CB8 protects the idle solenoid. If
CB8 opens, engine drops to idle
speed.
Check throttle solenoid and cable
for obstructions and throttle linkage
for proper adjustment. Press button
to reset circuit breaker.
When a circuit breaker opens,
it usually indicates a more seri-
ous problem exists. Contact a
Factory Authorized Service
Agent.
801 458-A / Ref. 192 785
1
C. Fuse F1
Ref. 801 477-C
Stop engine and disconnect
battery negative (–) cable.
Remove top cover.
1 Fuse F1 (See Parts List For
Rating)
F1 protects the exciter stator from
overload.
Replace F1 if open. Reinstall top
cover before operating unit.
When a fuse opens, it usually
indicates a more serious prob-
lem exists. Contact a Factory
Authorized Service Agent.
1
3/8, 1/2 in
Tools Needed:
