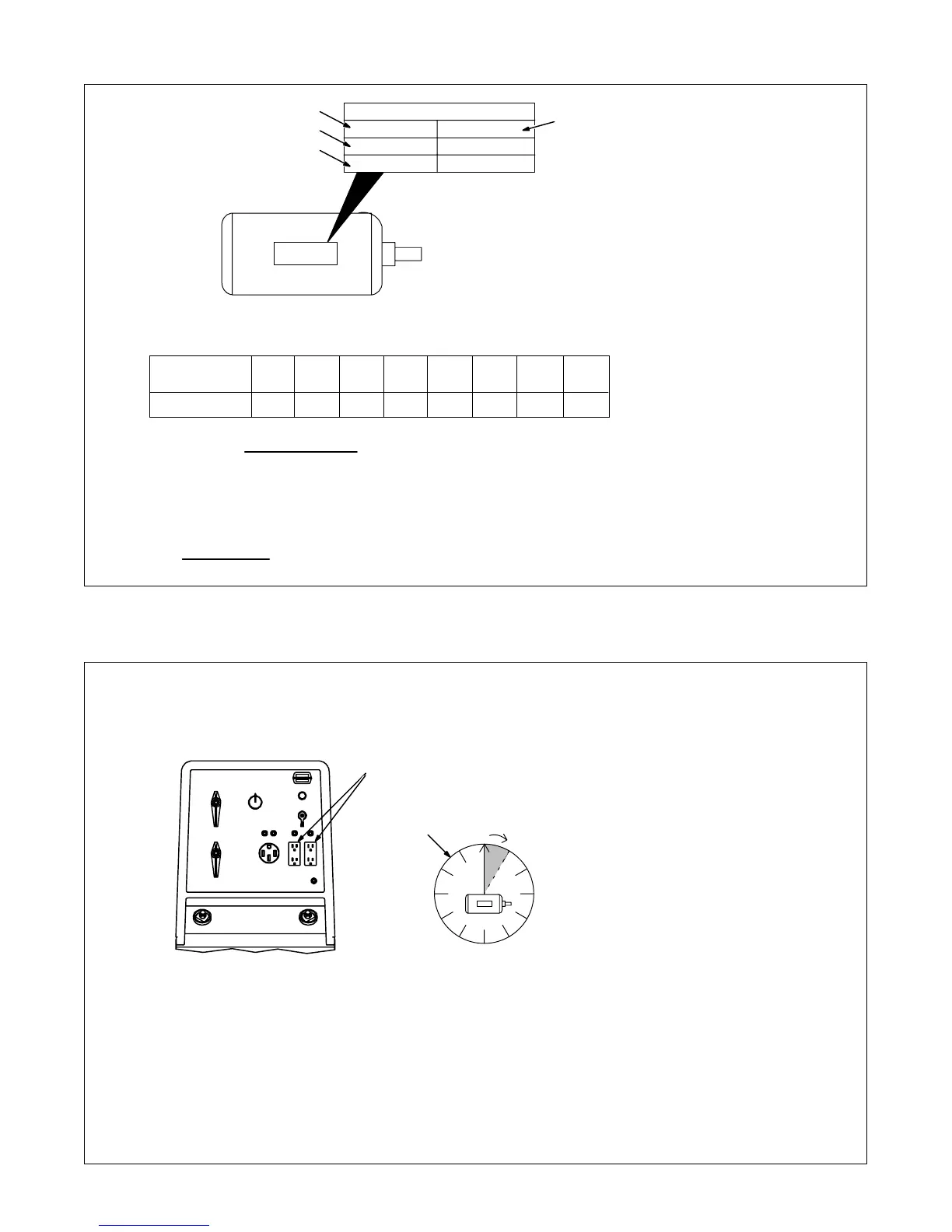

9-8. Power Required To Start Motor
S-0624
1 Motor Start Code
2 Running Amperage
3 Motor HP
4 Motor Voltage
To find starting amperage:
Step 1: Find code and use table to
find kVA/HP. If code is not listed,
multiply running amperage by six to
find starting amperage.
Step 2: Find Motor HP and Volts.
Step 3: Determine starting amper-
age (see example).
Welding generator amperage out-
put must be at least twice the
motor’s running amperage.
VOLTS AMPS
HP
230 2.5
1/4
Hz
PHASE
CODE 60
1
M
AC MOTOR
1
2
3
4
Single-Phase Induction Motor Starting Requirements
Motor Start
Code GHJKLMNP
KVA/HP 6.3 7.1 8.0 9.0 10.0 11.2 12.5 14.0
EXAMPLE: Calculate the starting amperage required for a 230 V, 1/4
HP motor with a motor start code of M.
Starting the motor requires 12.2 amperes.
11.2 x 1/4 x 1000
230
= 12.2 A
kVA/HP x HP x 1000
VOLTS
= STARTING AMPERAGE
Volts = 230 HP = 1/4 Using Table, Code M results in kVA/HP = 11.2
9-9. How Much Power Can Generator Supply?
Ref. ST-800 396-A / S-0625
1 Limit Load To 90% Of
Generator Output
Always start non-resistive (motor)
loads in order from largest to small-
est, and add resistive loads last.
2 5 Second Rule
If motor does not start within 5
seconds, turn off power to prevent
motor damage. Motor requires
more power than generator can
supply.
1
2
To Next Page
