Miller Bobcat 225D PLUS User Manual

OM-404 Page 46
Description
Part
No.
Item
No.

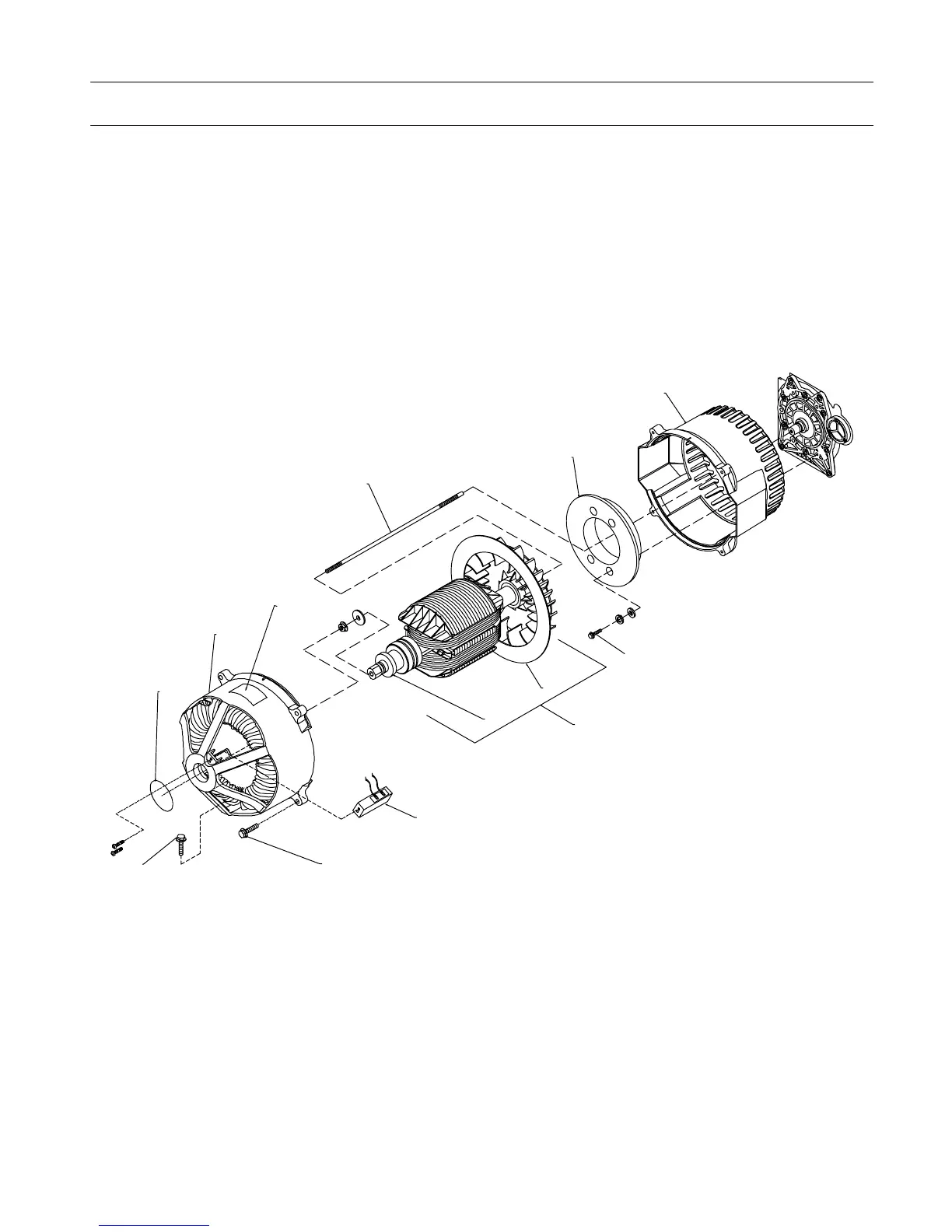

Figure 11-3. Generator (Fig 11-1 Item 31)
Quantity
1 +205 901 HOUSING, generator front assy 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 183 419 O–RING, 1.984 id x .139 cs 70 duro viton 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 079 624 SCREW, .375–16 x 2.25 hex hd–pln stl pld full thlkg pa 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 013 367 LABEL, warning moving parts can cause serious injury 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 179 647 STUD, stl .312–18+24 x 18.750 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 189 974 ADAPTER, housing generator rear 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 178 527 HOUSING, generator rear 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 174 828 SCREW, M 8–1.2X 45 hex hd–pln 8.8 pln 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 189 743 ROTOR, generator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 181 134 FAN, rotor gen 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 181 143 BEARING, ball rdl sgl row .984 x 2.047 x .591 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 180 556 HOLDER, brush elec 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 142 156 SCREW, .375-16 x 1.75 hexwhd .81d 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ref. 173 092-G
5
6
7
8
10
11
9
2
1
12
13
3
4
Figure 11-3. Generator
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
*Recommended Spare Parts.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
