OM-258 035 Page 42
 Hardware is common and
not available unless listed.
258 652-B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

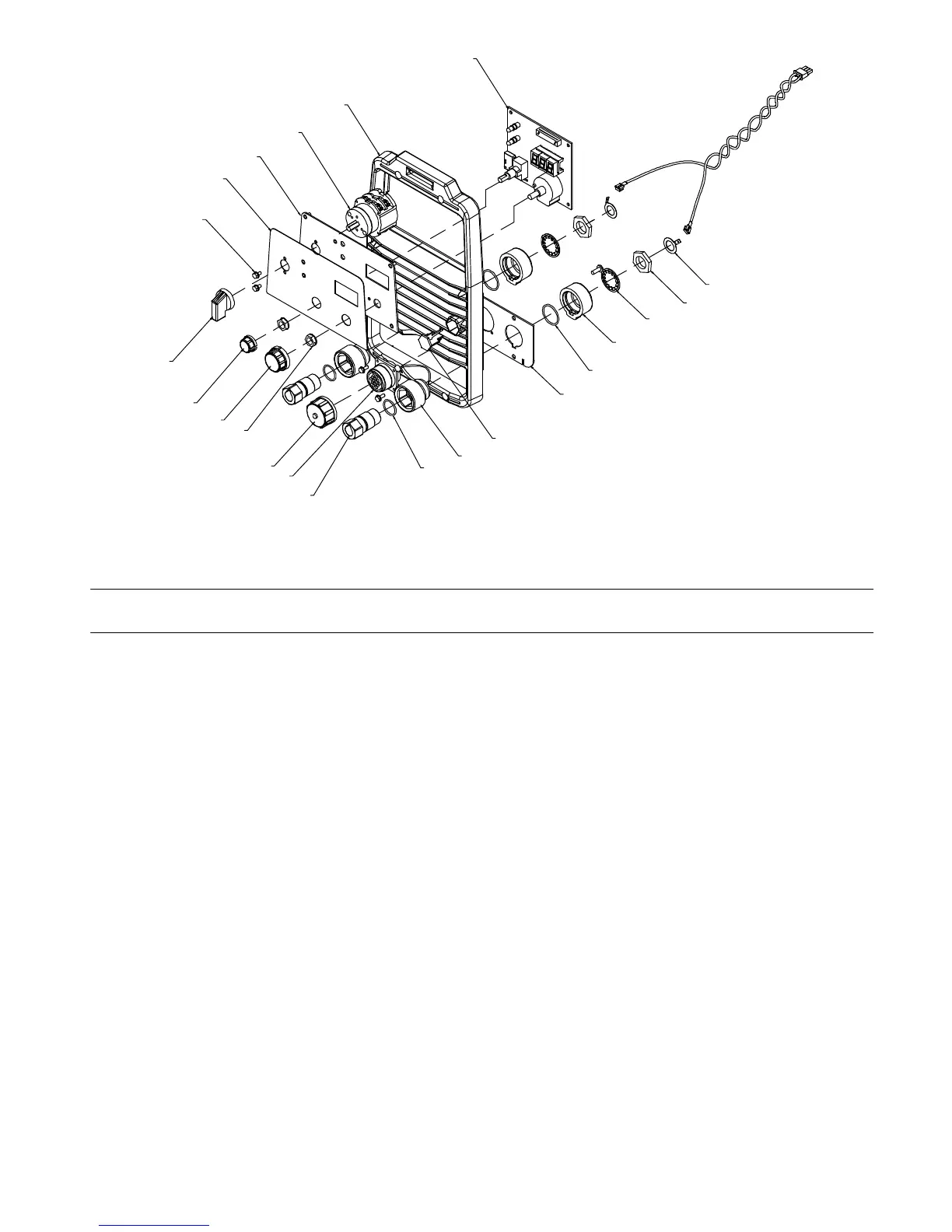

Figure 11-2. Panel, Front w/Components
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-2. Panel, Front w/Components
Quantity
1 194242 Panel, Front/Rear 1... .......... .. ...................................................
2 257572 Panel, Front Upper 1... .......... .. .................................................
3 195647 Panel, Front Lower 1... .......... .. .................................................
4 S1 207165 Switch, w/Leads 1... .... .. .. ....................................................
5 174991 Knob, Pointer 1.250 Dia x .250 ID w/Spring Clip−.21 1... .......... .. .....................
6 174992 Knob, Pointer .840 Dia X .250 ID w/Spring Clip−.21 1... .......... .. ......................
7 RC14 207144 Receptacle w/Leads & Plug(14 Pin) 1... .. . .. ....................................
8 253430 Terminal, Connector Friction 2... .......... .. ..........................................
218183 Rcpt Assy, Tw Lk Insul Fem (Tweco Type) (Including) 2................ .. ....................
202813 Receptacle, Twist Lock Power Assy (Dinse Type) (Including) 2................ .. ..............
209473 Receptacle, Twist Lock Tweco (Female) 2................ ... ..............................
9 202553 Receptacle, Twist Lock Dinse (Female) 2... .......... ... ...............................
10 185712 Insulator, Bulkhead Front 2... .......... ... ...........................................
11 185713 Insulator, Bulkhead Rear 2... .......... ... ...........................................
12 185714 Washer, Tooth 22 mm ID X 31.5 mm OD 1.310−1 mm T Intern 2... .......... ... ..........
13 185717 Nut, M20−1.5 1.06 Hex .19h Brs Locking 2... .......... ... .............................
14 185718 O−ring, 0.989 ID x 0.070 H 2... .......... ... .........................................
15 186228 O−ring, 0.739 ID x 0.070 H 2... .......... ... .........................................
16 207253 Blank, Hex Hole Black 1... .......... .. ...............................................
17 257571 Nameplate, Miller CST 280 w/Meter 1... .......... .. ...................................
17 257907 Nameplate, Miller CST 280 w/Meter VRD 1... ......... .. ...............................
18 PC4 257391 Circuit Card Assy, Operator Interface 1... ... .. .. ..................................
19 170391 Connector, Circ Ms Protective Cap 1... .......... .. ....................................
20 178355 Nut, 375−32 .54 Hex .25h Nyl Flange .62D 2... .......... .. .............................
21 209554 Screw, KA 35 x 8 Pan Hd−phl 2... .......... .. .........................................
22 230485 Knob, Switch 1... .......... .. .......................................................
257125 Bracket Assy, Mtg User Interface 1................ .. ......................................
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
VRD Models only.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
