Miller CST 280 - Page 47

OM-258 035 Page 43
 Hardware is common and
not available unless listed.
803 948-B
6
1
2
3
4
5
6
7

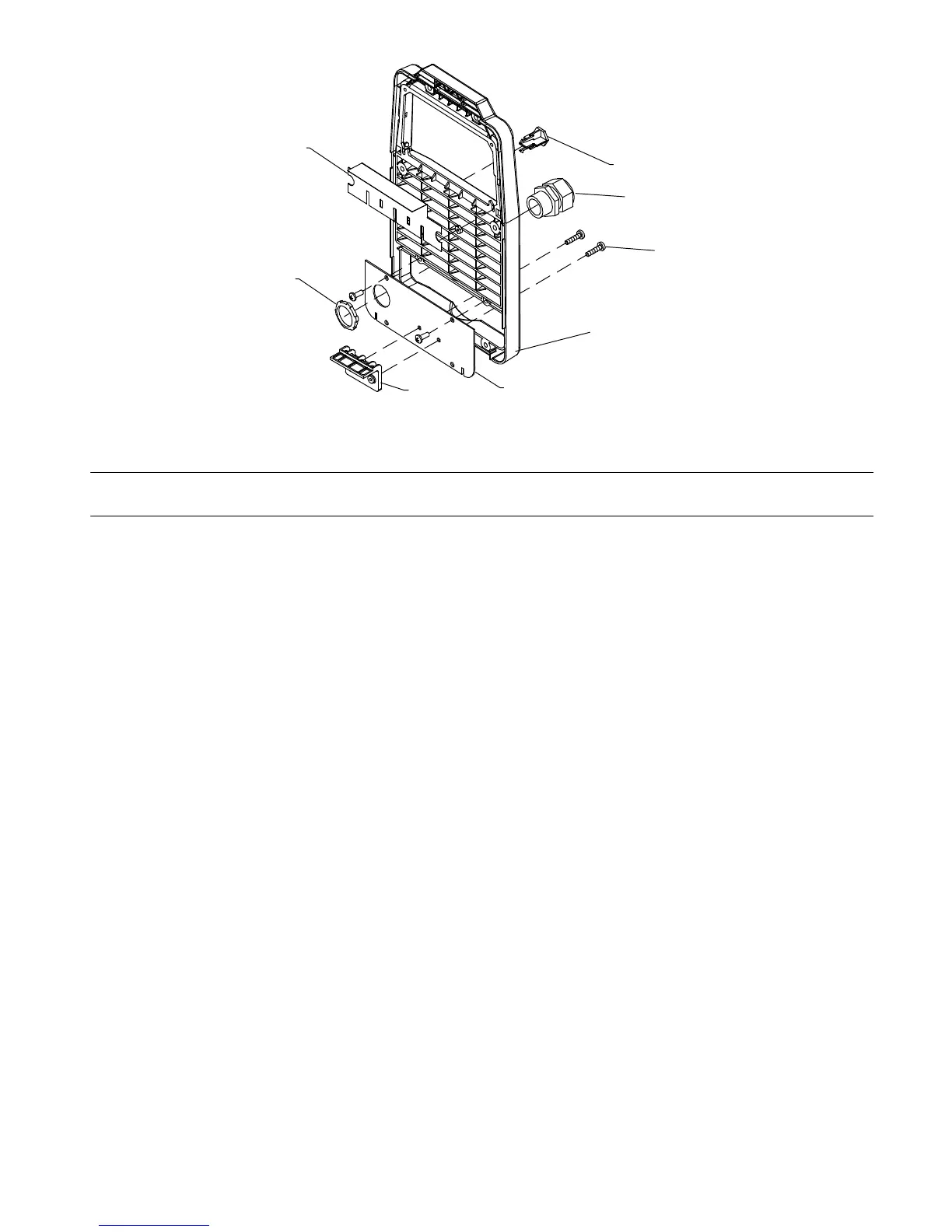

Figure 11-3. Panel, Rear w/Components
Figure 11-3. Panel, Rear w/Components
Item
No.
Part
No. Description Quantity
1 194242 Panel, Front/Rear 1... .......... .. ...................................................
2 206053 Panel, Rear Lower 1... .......... .. ..................................................
287132 Label, Notice Cst If Front Panel Lamps Do Not Light 1................ .. .....................
3 210128 Bracket, Heatsink 1... .......... .. ...................................................
4 145217 Screw, K40x 12 Pan Hd−Phl 2... .......... .. ..........................................
5 207253 Blank, Hex Hole Black 1... .......... .. ...............................................
6 264099 Bushing, Strain Relief .450/.709 ID x 1.068 Mtg Hole 1... .......... .. ....................
7 246319 Insulator, Switch Rear Panel CST−280 (Not Shown) 1... .......... .. .....................
VRD Models only.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
