Miller CST 280 - Page 48

OM-258 035 Page 44
 Hardware is common and
not available unless listed.
804 206-B
10
3
9
14
1
8
5
4
2
6
13
8
7
8
11
12

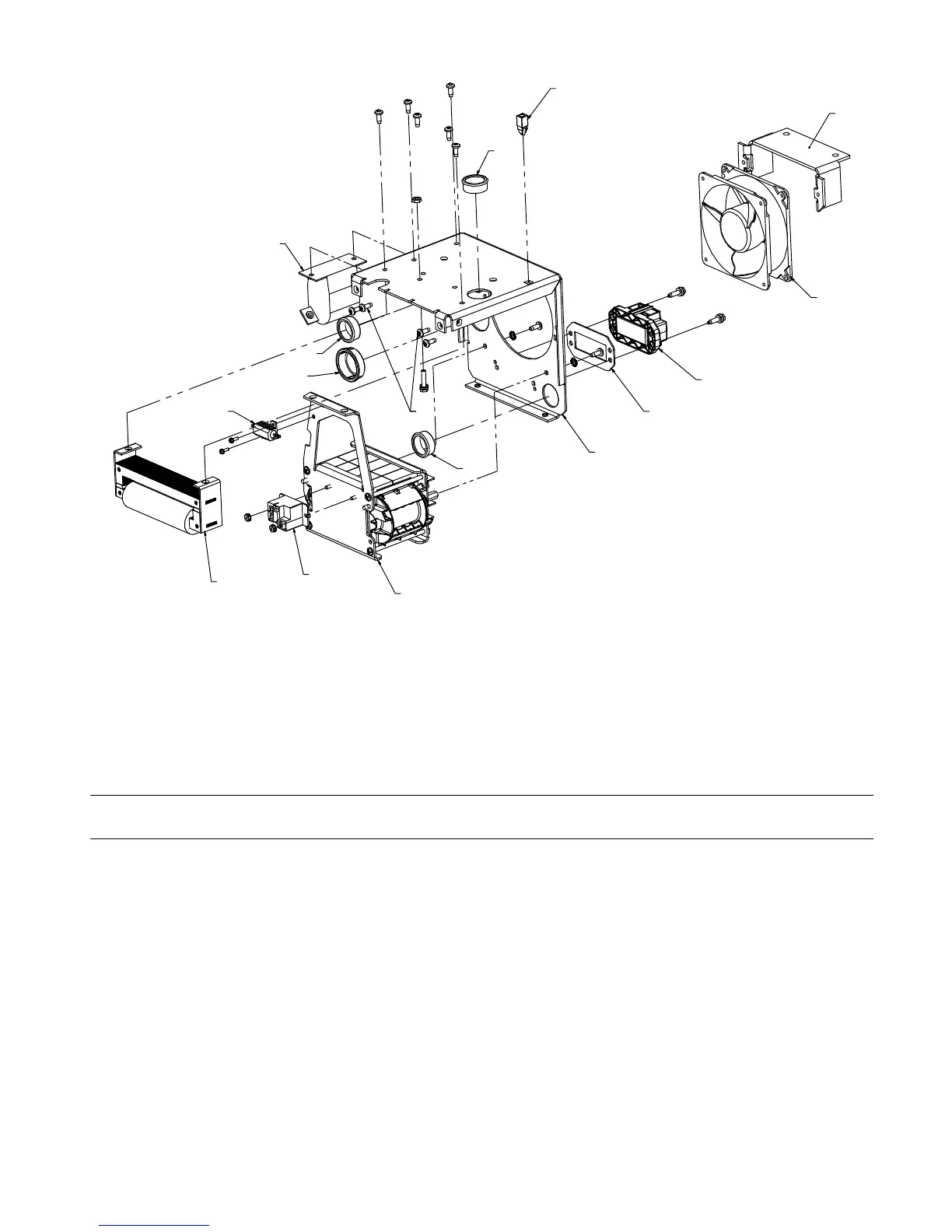

Figure 11-4. Magnetics Subassembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-4. Magnetics Subassembly
Quantity
1 206063 Panel, Plenum 1... .......... .. ......................................................
2 T1 212812 Xfmr, HF Litz/Litz w/Boost (208−230/400−460 Models) 1... .... .. .. ...................
2 T1 206065 Xfmr, HF Litz/Litz w/Boost (220−230/460−575 Model) 1... .... .. .. ....................
3 FM 239380 Fan, Muffin 24VDC 3200 RPM 141 CFM 4.125 Mtg Holes 1... ... .. .. ................
4 Z1 206064 Inductor, Output 1... .... .. .. .....................................................
5 CR1 206258 Relay, Encl 24VDC SPST 30A/240VAC 4 Pin Flange Mtg 1... ... .. .. .................
6 R3 206281 Resistor, w/Leads 1... .... .. .. ...................................................
7 C3 196143 Capacitor, Polyp Met Film 16. uf 400 VAC 10% 1... .... .. .. ..........................
8 057357 Bushing, Snap−in Nyl .937 ID X 1.125 Mtg Hole 3... .......... .. .........................
9 L3 225189 Coil, Inductor (Boost) 1... .... .. .. ................................................
10 198634 Bracket, Front Heatsink Mtg 1... .......... .. ..........................................
11 083147 Grommet, SCR No 8/10 Panel Hole .312 Sq .500 High 1... .......... .. ...................
12 136343 Screw, K50 x 20 Pan Hd−Phl 2... .......... .. .........................................
13 170647 Bushing, Snap−in Nyl 1.312 ID X 1.500 Mtg Hole 1... .......... .. ........................
14 227746 Gasket, Inductor Mounting 1... .......... .. ...........................................
VRD Models only.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
