Miller Millermatic 252 - Connecting XR Aluma-Pro, XR Aluma-Pro Lite, XR Edge, XR-A Gun, or XR-A Python

OM-230693 Page 18
F
Complete Parts List is available at www.MillerWelds.com

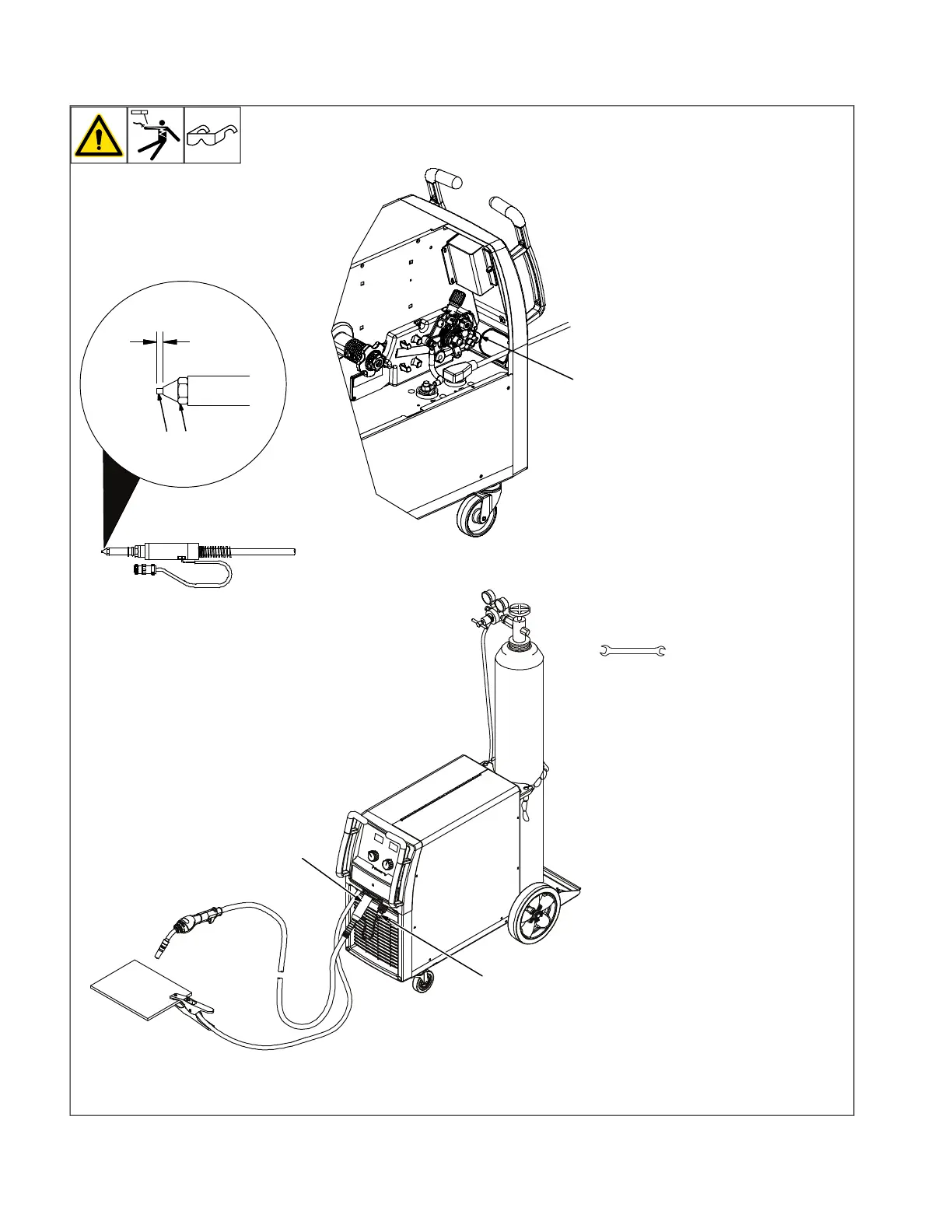

5-6. Connecting XR Aluma-Pro, XR Aluma-Pro Lite, XR Edge, XR-A Gun, Or XR-A
Python
Ref. 804910-B / 804936-A
3
2
3/32 in.
(2.4 mm)
5
4
1
F
XR Edge guns prior to serial no.
LE079101 require an adapter cord
(part no. 195498).
1 Gun End
2 Gun Liner
3 Wire Outlet Guide
F
Be sure to trim liner to proper
extension.
Trim excess liner from end of gun so no
more than 3/32 in. (2.4 mm) of liner extends
past wire outlet guide.
4 Gun Securing Knob
Loosen securing knob. Insert gun end
through opening until it bottoms against drive
assembly (make sure gun end does not
touch drive rolls). Tighten knob.
Be sure to change drive rolls to the proper
size and type.
5 Gun Trigger Plug
Insert plug into receptacle, and tighten
threaded collar.
F
If Aluma-Pro push/pull gun has a listed
SUP value, set the power source to
match the SUP value (see Section 6-
5).
