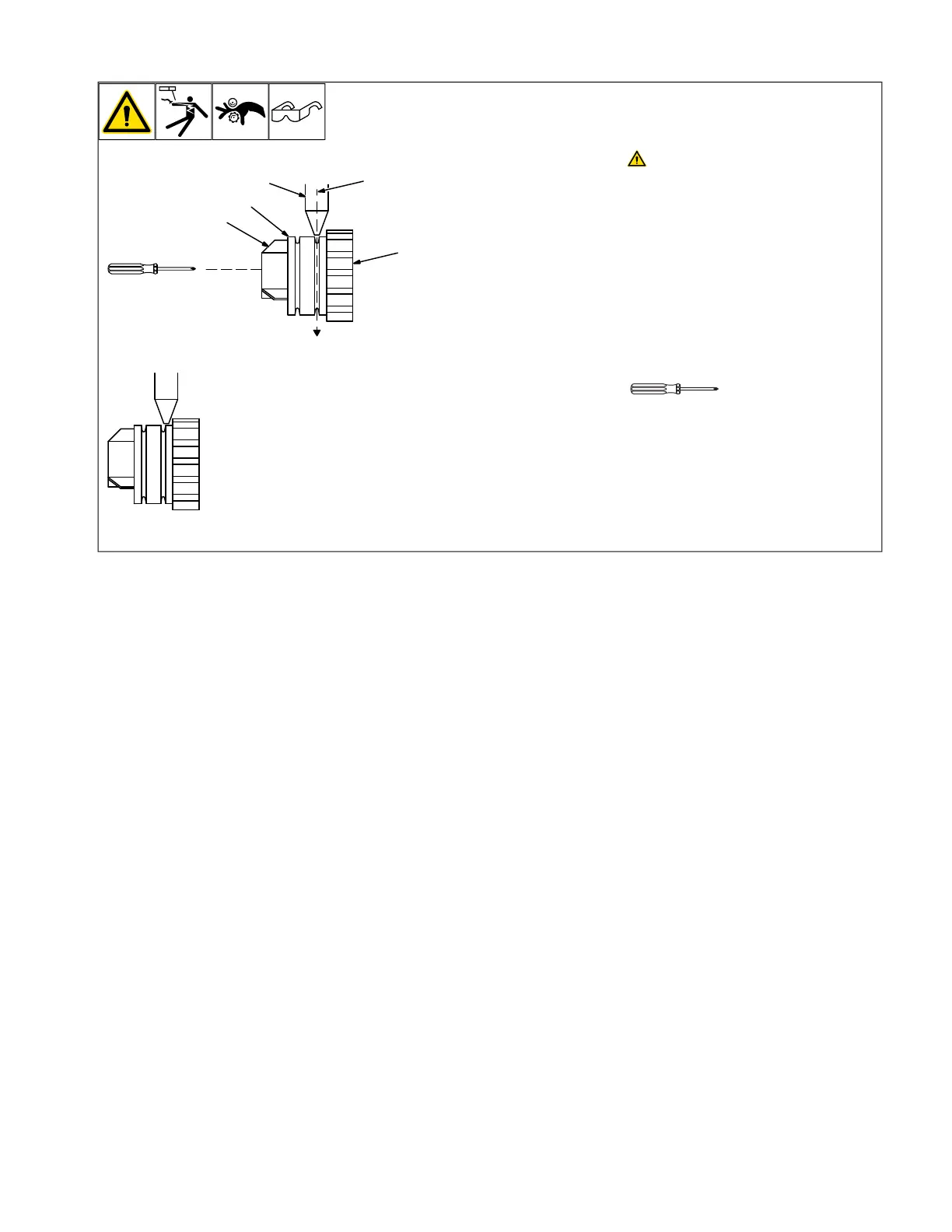

7-4. Aligning Drive Rolls and Wire Guide
Correct
4
3
2
1
5
Incorrect
Ref. 800412-A
Turn Off power.
View is from top of drive rolls looking down
with pressure assembly open.
1 Drive Roll Securing Nut
2 Drive Roll
3 Wire Guide
4 Welding Wire
5 Drive Gear
Insert screwdriver, and turn screw in or out
until drive roll groove lines up with wire
guide.
Close pressure roll assembly.
