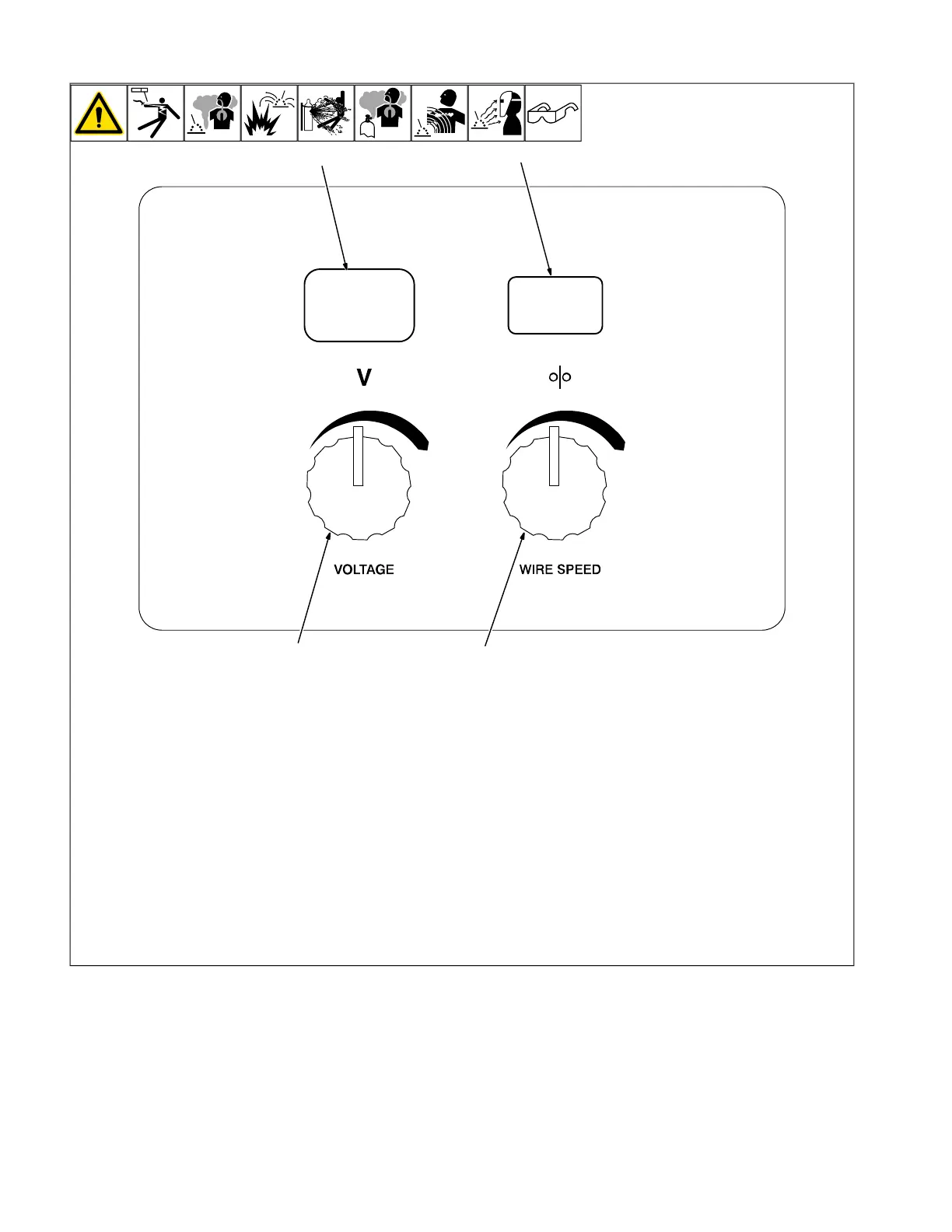

6-4. Timers
1 Voltage Control
2 Wire Speed Control
3 Voltmeter
4 Wire Feed Speed Meter
To enter the TIMERS menu press and hold
the gun trigger while turning on the power
switch until the left meter displays (run), then
release trigger.
Once in the TIMERS menu, rotate the left
knob clockwise (CW) to find the particular
item, and rotate the right knob to change the
setting.
The following items can be adjusted by ro-
tating the left knob clockwise (CW):
Run-in speed (run) − The speed of the wire
prior to the welding arc being struck. The
range is from 25 to 150% of wire feed speed
(WFS).
Preflow (PrE) − The amount of time that the
shielding gas will flow after the trigger is de-
pressed and before the welding arc will be
allowed to be active. The range is from 0.0
to 5.0 seconds.
Postflow (POS) − The amount of time that
the shielding gas will flow after the arc has
been shut off. The range is from 0.0 to 10.0
seconds.
Burnback (Bur) − The amount of time that
the welding wire remains electrically
energized after the wire feeding has
stopped. The range is from 0.01 to 0.25
seconds.
Spot Timer (SPO) − The amount of time
that the arc will be active before it shuts off
automatically. The range is from 0 to 120
seconds. Spot timer is reset upon release of
welding gun trigger.
“Stitch” Timer (dLY) − Used in conjunction
with the Spot timer and while the trigger is
continuously depressed. Controls the
amount of time that the arc will be inactive
after the Spot timer times out. The range is
from 0 to 120 seconds.
To save settings and exit the TIMERS menu,
depress the gun trigger.
