6.2.2 P.1

R.1.0

Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Removing of Head Unit

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.

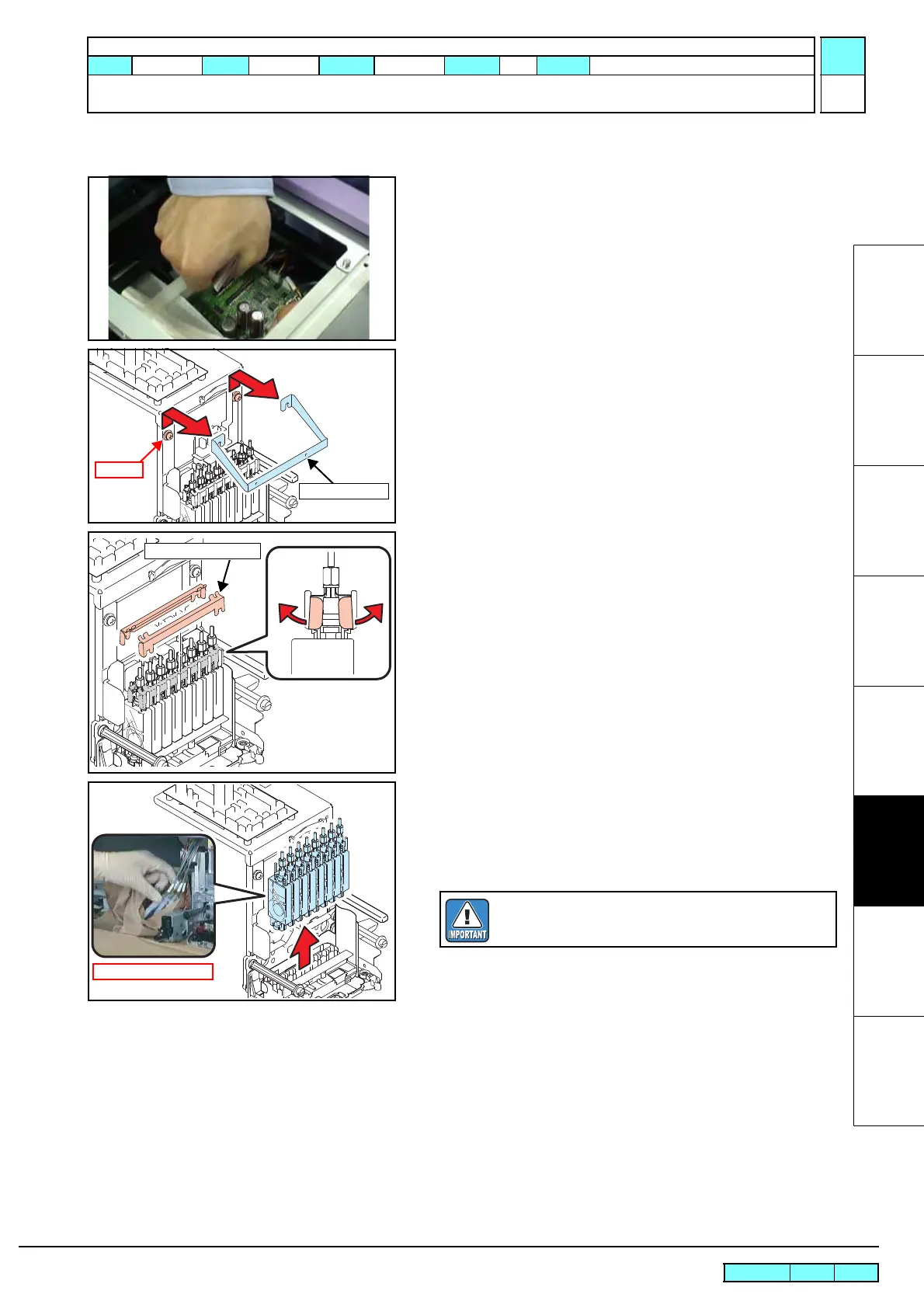

6.2.2 Removing of Head Unit

 Work procedures

1. Pull out the head FFC assy and head memory cable assy from

the ink slider PCB assy through the top where the wiring cover

removed.

2. Move the print head carriage onto the platen to make your work

easy.

3. Loosen the screws at two locations on the right and left to

remove the P cover BKT.

4. Remove damper lock SPs.

Near side: Rotate right and left edges towards you and

remove them.

Rear side: Rotate right and left edges to the rear and remove

them.

5. Place the waste cloth around the head unit so as not to

contaminate the platen.

6. Pull out all pressure damper SP assys from the print head

carriage and wrap them with the waste cloth so as not to

contaminate their surroundings.

P Cover BKT

Loosen

Damper Lock SP

Wrap with waste cloth.

Do not touch the film of the damper assy.
