Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Pump Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

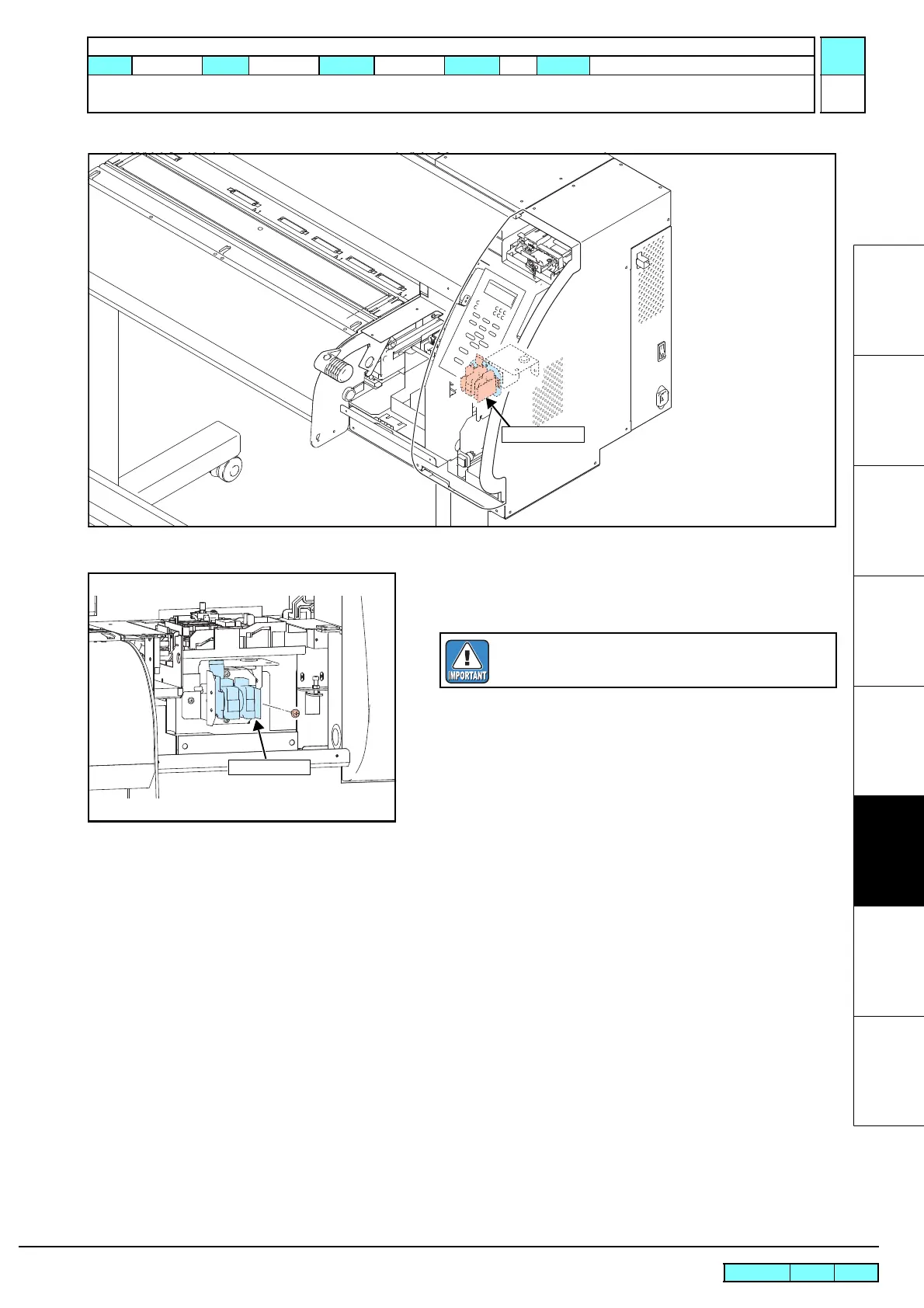

6.2.5 Pump Assy
 Work procedures
1. Remove the station cover U.
2. Remove the pump tube connected to the CP coupler.
3. Remove the pump assy from the pump BKT.
4. Reverse the disassembly procedure for reassembly.
Protrude the pump tube of the discharge side from tube end by 5
to 9 mm.
Pump Assy
Pump Assy
Take care not to pollute the surroundings with waste
ink or washing liquid.

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
