Maintenance Manual > Disassembly and Reassembly > Ink-related Parts > Cap Head Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

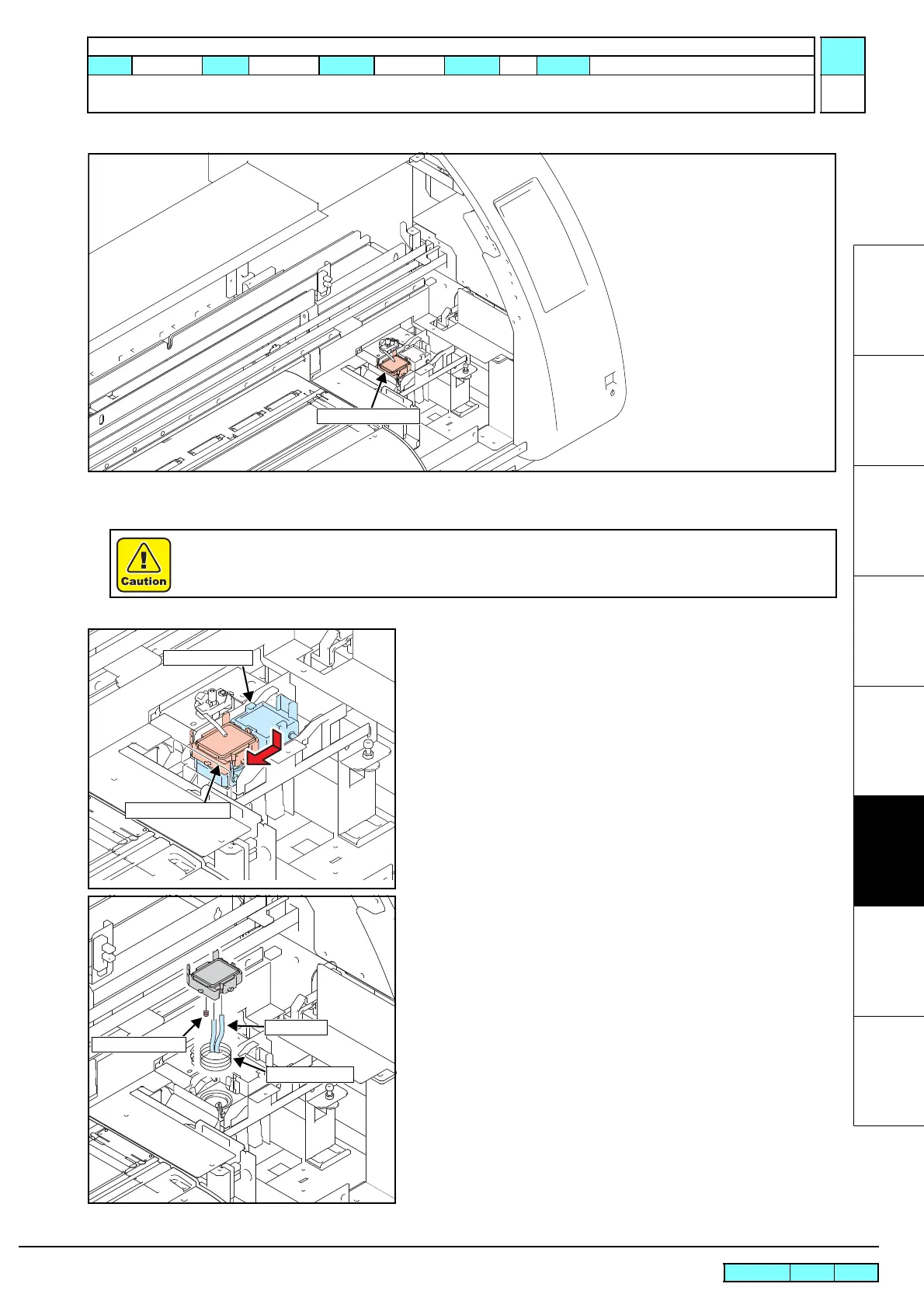

6.2.7 Cap Head Assy
 Work procedures
1. Turn off the main power supply of the printer.
2. Manually move the head unit over the platen.
3. Remove the following covers.
• Station Cover U
• Wiring Cover
4. While pushing down the cap head assy, slide it to the left and
remove it from cap slider 33.
5. Remove the tube, cap SPG and cap stopper from the cap head
assy.
6. Reverse the disassembly procedure for reassembly.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
Cap Head Assy
Cap Head Assy
Cap Slider 33
Tube
Cap SPG
Cap Stopper

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
