Maintenance Manual > Disassembly and Reassembly > Cut Head Carriage > Auto Cutter Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

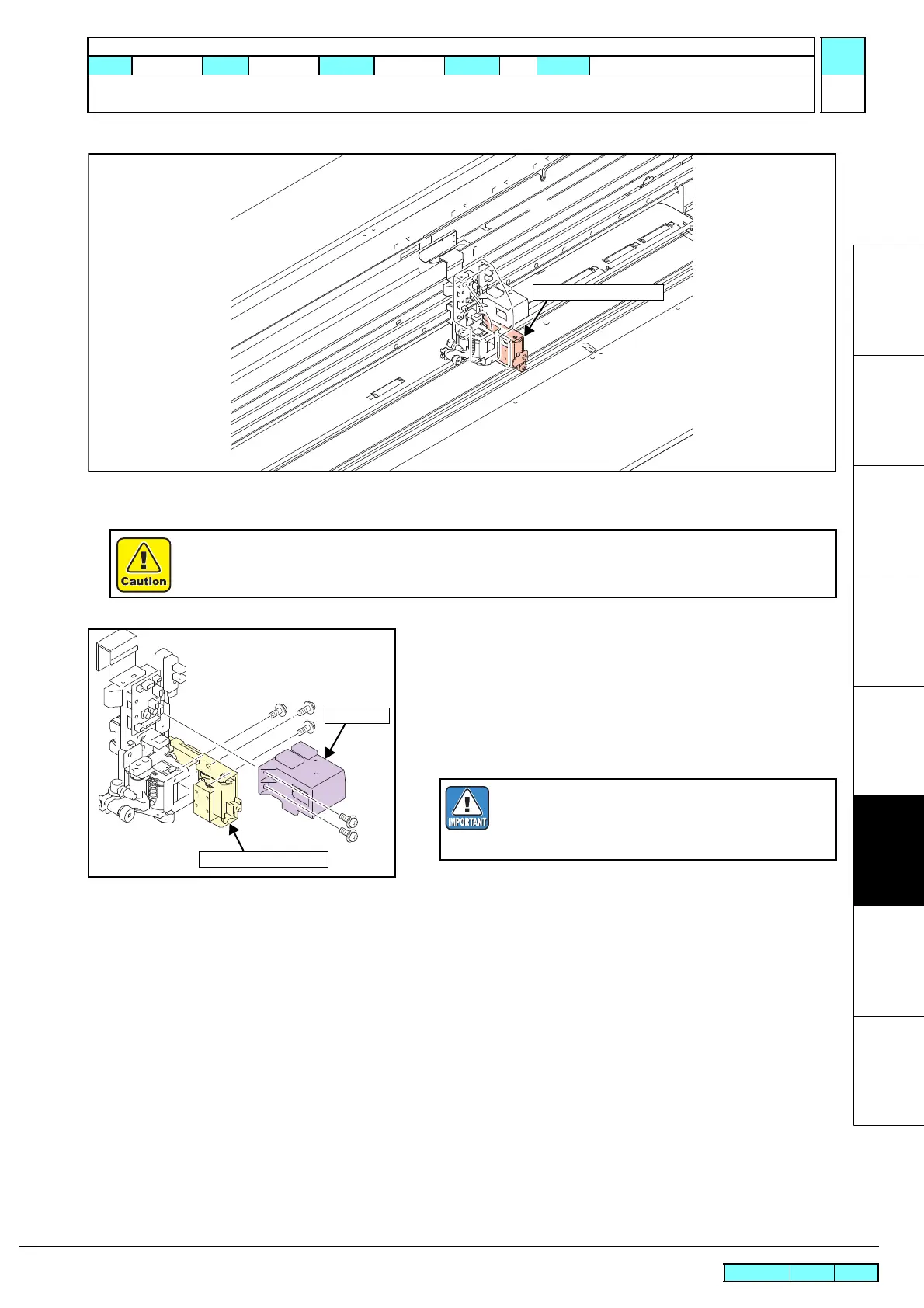

6.3.2 Auto Cutter Assy
 Work procedures
1. Remove the following covers.
• CY Cover F
• Head Cover
2. Move the cutting carriage on the platen.
3. Remove the S-guide and then the auto cutter assy.
4. Reverse the disassembly procedure for reassembly.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
Auto Cutter Assy
S guide
Auto Cutter Assy
Take care not to change the orientation of the hook of
the whirl-stop SP.
Changing the orientation will change the pen
pressure and the pen landing values.

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
