6.4.3 P.3

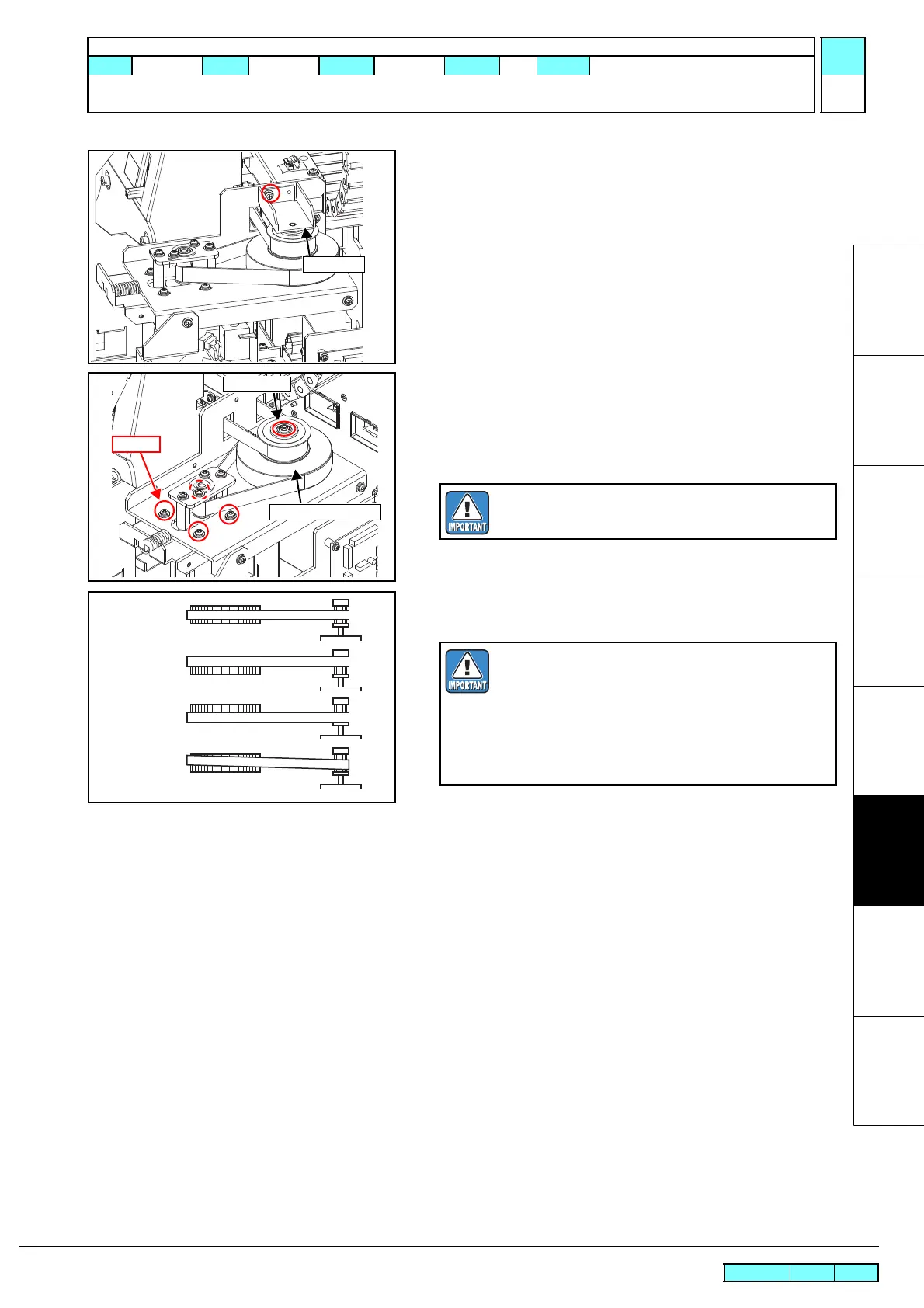

6.4.3 Y Drive Pulley

9. Remove the screw, and detach the D BKT U from the Y drive

pulley.

10. Loosen the screws for fixing the Y-axis motor belt tension, and

reduce the tension of the belt.

11. Remove the O-ring from the top of the Y drive pulley, and then

remove the two belts to detach the Y drive pulley.

12. Reverse the disassembly procedure for reassembly.

D BKT U

Loosen

O-ring

Y Drive Pulley Assy

Take care not to lose the O-ring.

Good

Example:

Bad

Example:

Slanting

Horizontal in the middle

Bad

Example:

Good

Example:

Shifted lower

Horizontal but upper

 Mount the Y-axis motor so that the belt is

horizontal and centered on the Y drive pulley

(upper side is also acceptable).

 After mounting the motor, if the hunting sound is

heard when the motor drives, make adjustments

making reference to the following:

• Adjusting the Y-axis motor current

R.1.0

Maintenance Manual > Disassembly and Reassembly > Drive System > Y Drive Pulley

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.
