6.4.5 Linear Encoder Scale

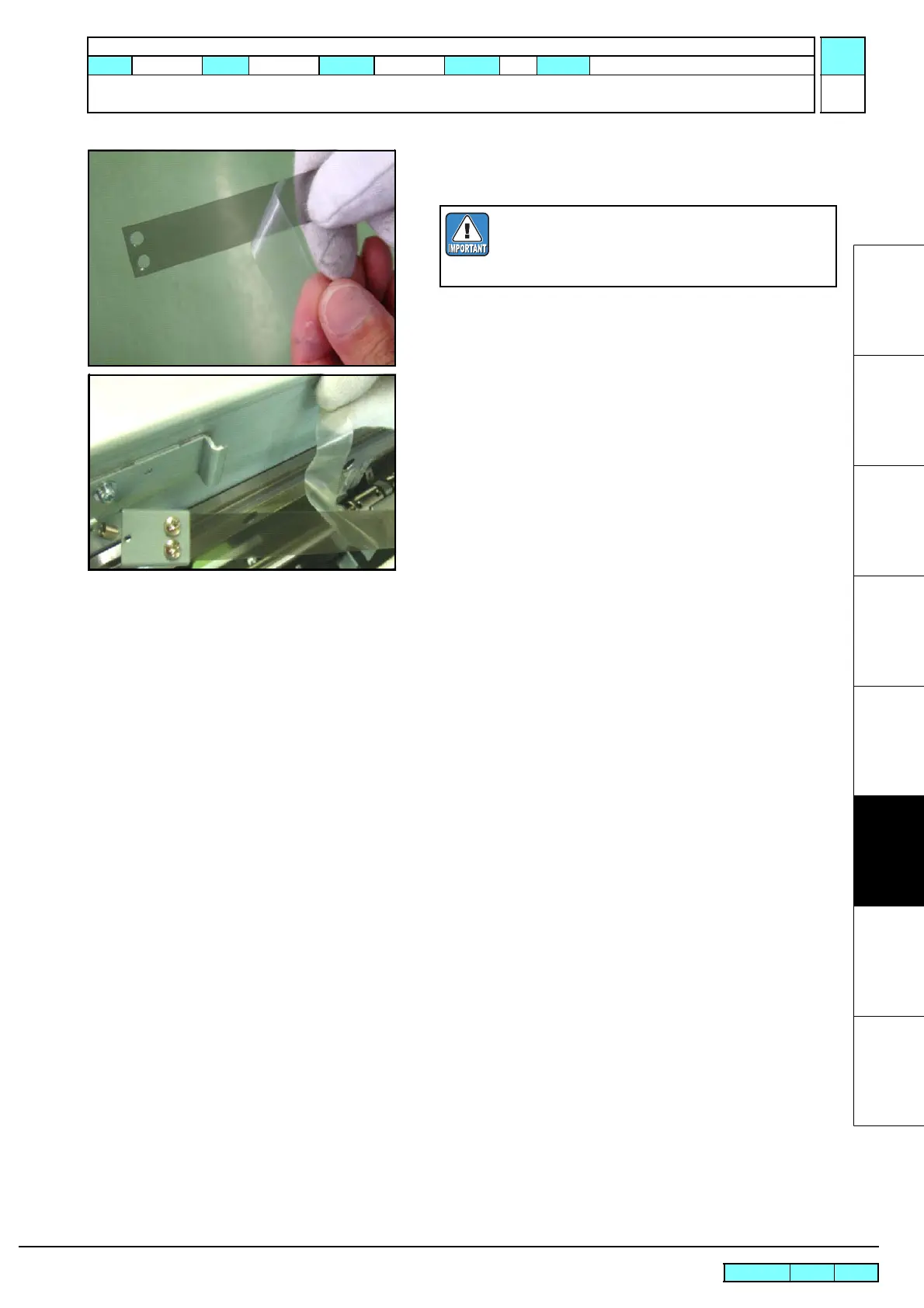

6. Peel off the left end (the side with two holes) of the protection

film on the new linear encoder scale.

7. Mount the scale hook on the linear encoder scale so that the

surface where the protection film is stuck faces to the Y bar side.

8. Engage the scale hook with the scale base L through a spring,

and mount the linear encoder scale on the scale base R while

peeling off the protection film.

9. Reverse the disassembly procedure for the subsequent

reassemblies

While at work, be sure not to attach fingerprints or

oil to the linear encoder scale. Also, pay attention not

to break or scratch it. (If contaminated, clean the

scale with a neutral detergent.)

R.1.0

Maintenance Manual > Disassembly and Reassembly > Drive System > Linear Encoder Scale

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.
