Maintenance Manual > Disassembly and Reassembly > Drive System > Linear Encoder Scale
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

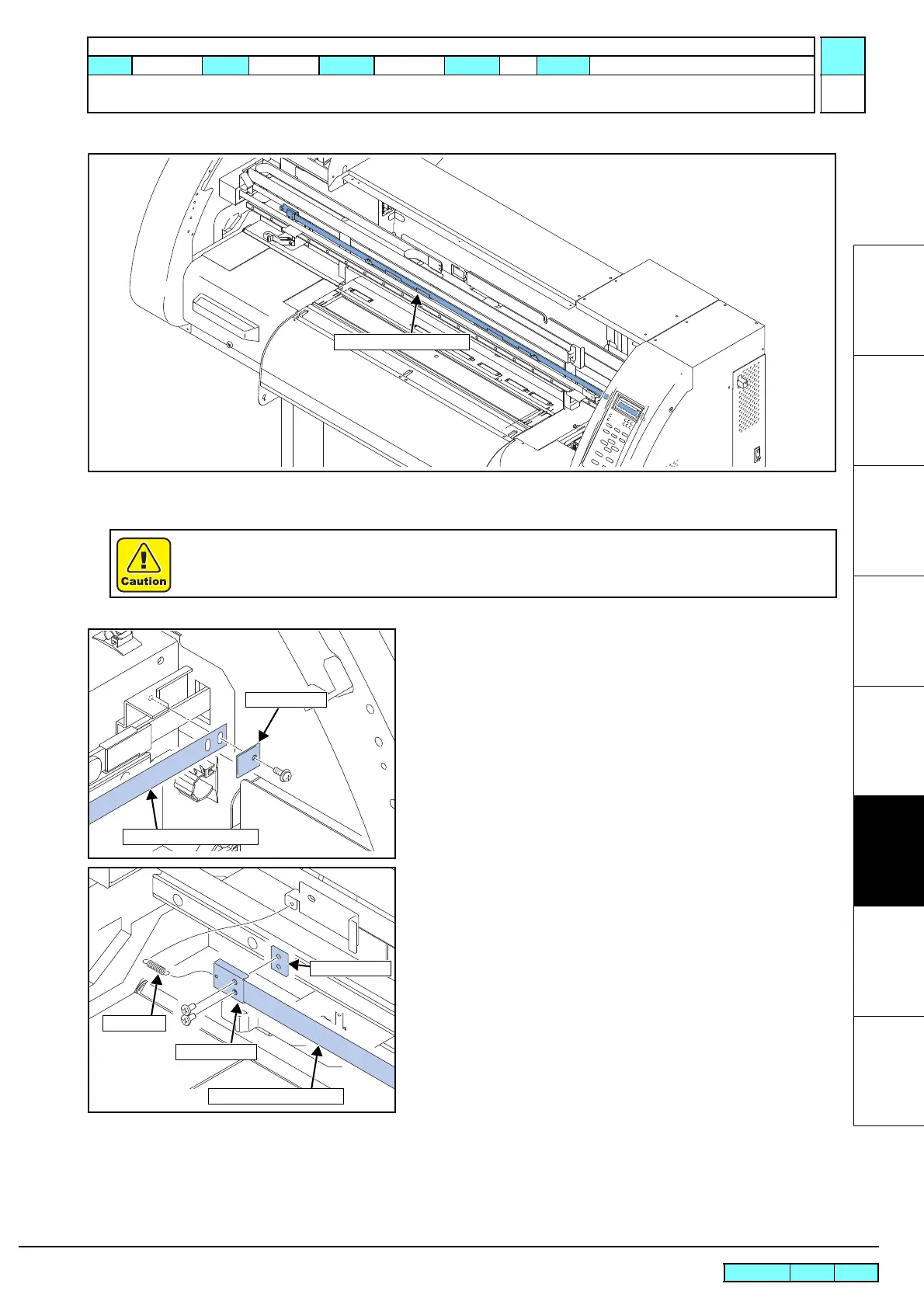

6.4.5 Linear Encoder Scale
 Work procedures
1. Remove the following covers.
• CY Cover F
• Head Cover
2. Remove the Encoder PCB Assy.
• 6.5.12 Encoder PCB Assy
3. Remove the screws from the right end of the linear encoder
scale, and detach the linear encoder scale.
4. Remove the screw from the left end of the linear encoder scale,
and detach the linear encoder scale together with the springs.
5. Remove the scale hook and scale holder R from the linear
encoder scale.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
While at work, be sure not to attach fingerprints or oil to the linear encoder scale. Also, pay attention not
to break or scratch it. (If contaminated, clean the scale with a neutral detergent.)
Linear Encoder Scale
Linear Encoder Scale
Scale Holder R
Linear Encoder Scale
Scale SP
Scale Holder L
Scale Hook

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
