6.5.15 ID Contact PCB Assy
1
2
3
4
5
6
7
8

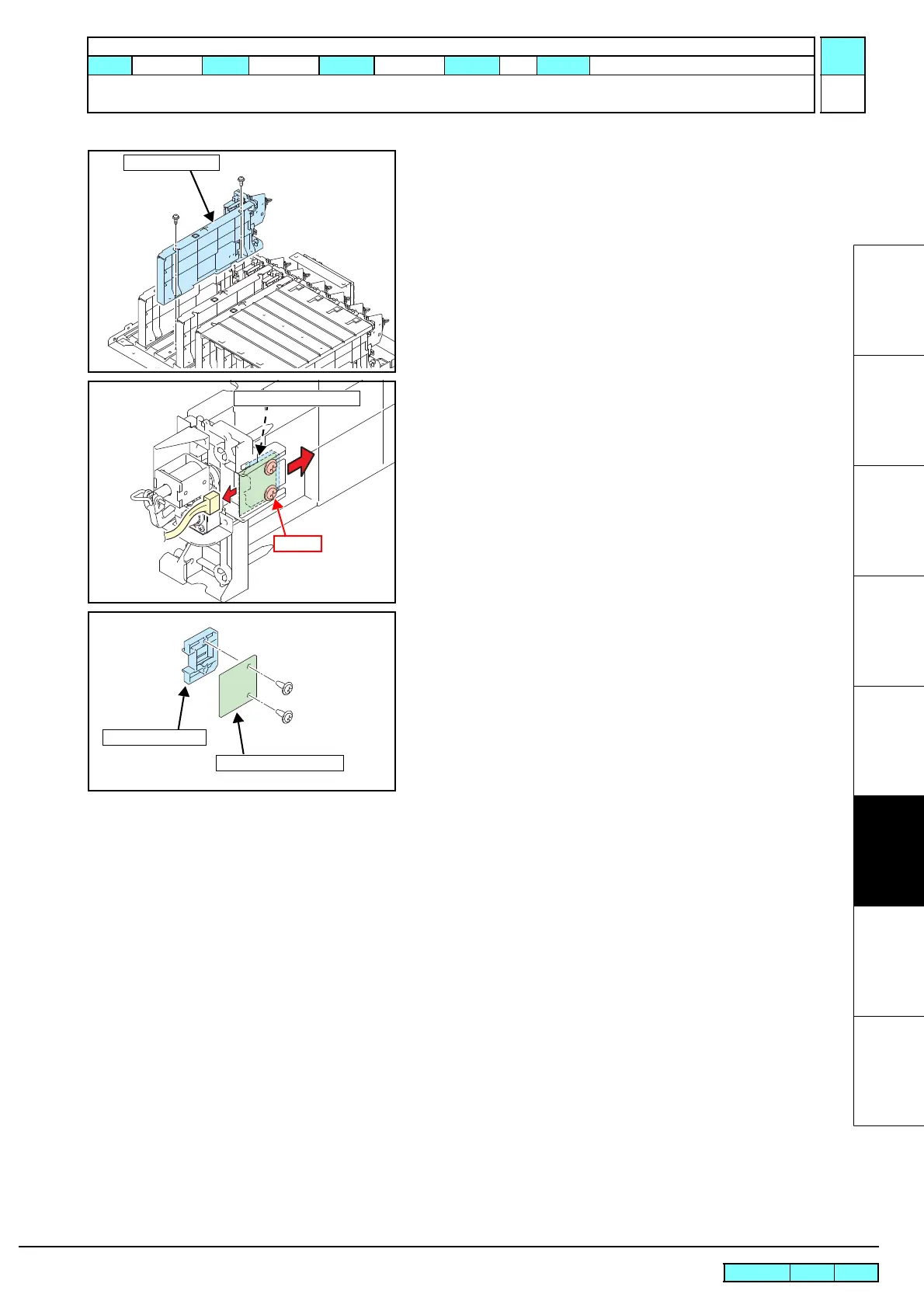

4. Remove the relevant cartridge guide.
5. Remove the connector and loosen the screws to take off the ID
contact PCB assy together with ID PCB holder.
6. Remove the ID contact PCB assy.
7. Reverse the disassembly procedure for reassembly.
Cartridge Guide
ID Contact PCB Assy
Loosen
ID Contact PCB Assy
ID PCB Holder
