Maintenance Manual > Disassembly and Reassembly > Electrical Parts > ID Contact PCB Assy
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

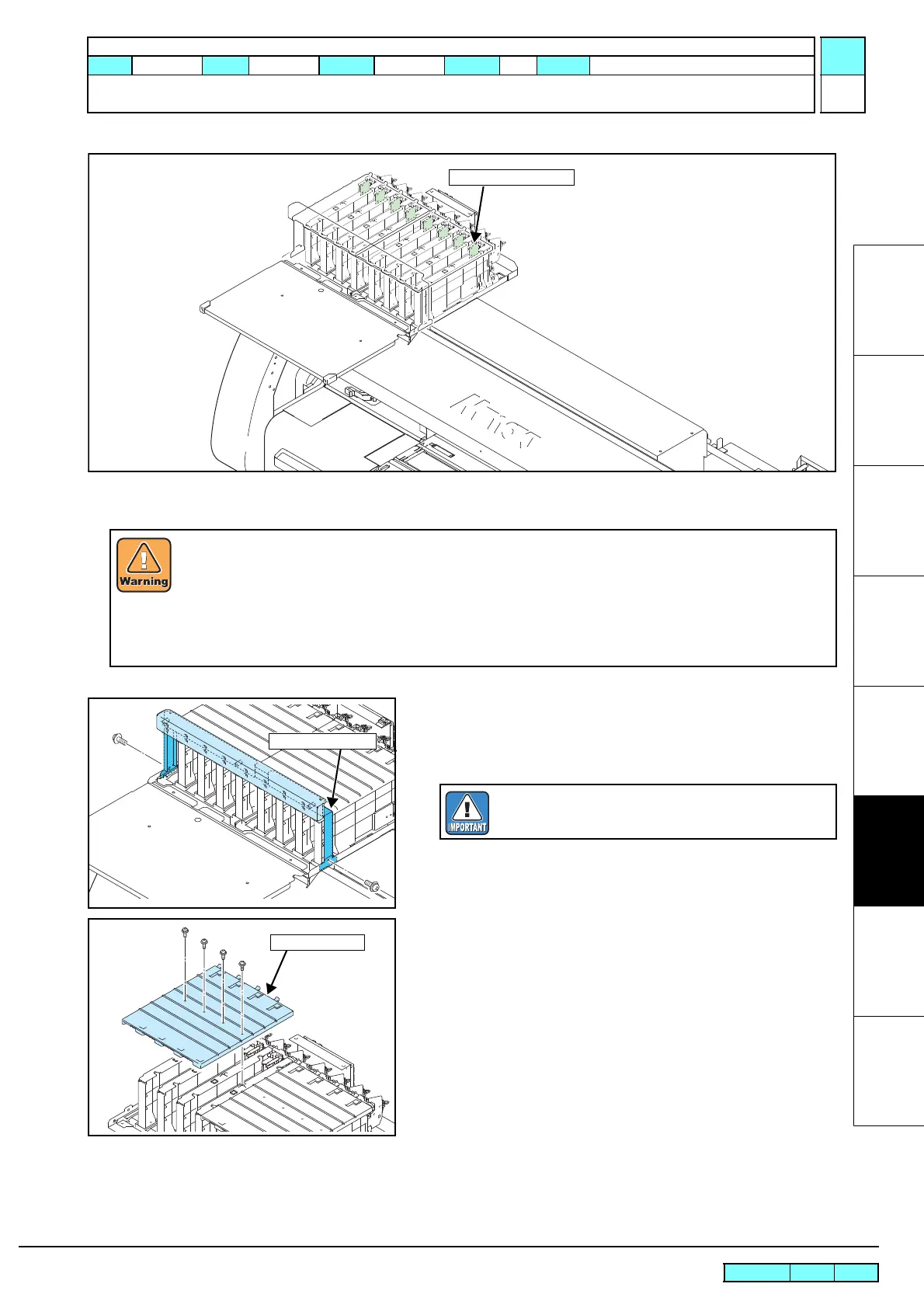

6.5.15 ID Contact PCB Assy
Work procedures
1. Remove the cartridge cover.
2. Remove the cartridge holder B.
3. Remove cartridge base U related to the right or left side.
After turning off the sub and main power switches in order, unplug the power code.
Check if no electric charge is remaining in the PCB.
Refer to the "4.5.2 Electric charge checking when replace the Electrical Parts"
It is very dangerous if sleep mode functions mistakenly during the operation.
Moreover, the PCB may be damaged in case electric charge still remains inside.
Also there is a possibility of electric shock because of high power voltage applied the high-pressure part
of the power supply PCB assy. Take care to avoid contact with it.
ID Contact PCB Assy
Cartridge Holder B
LED PCB FFC is connected. Pay attention to
handling.
Cartridge Base U
