MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
8.5.2 P.3

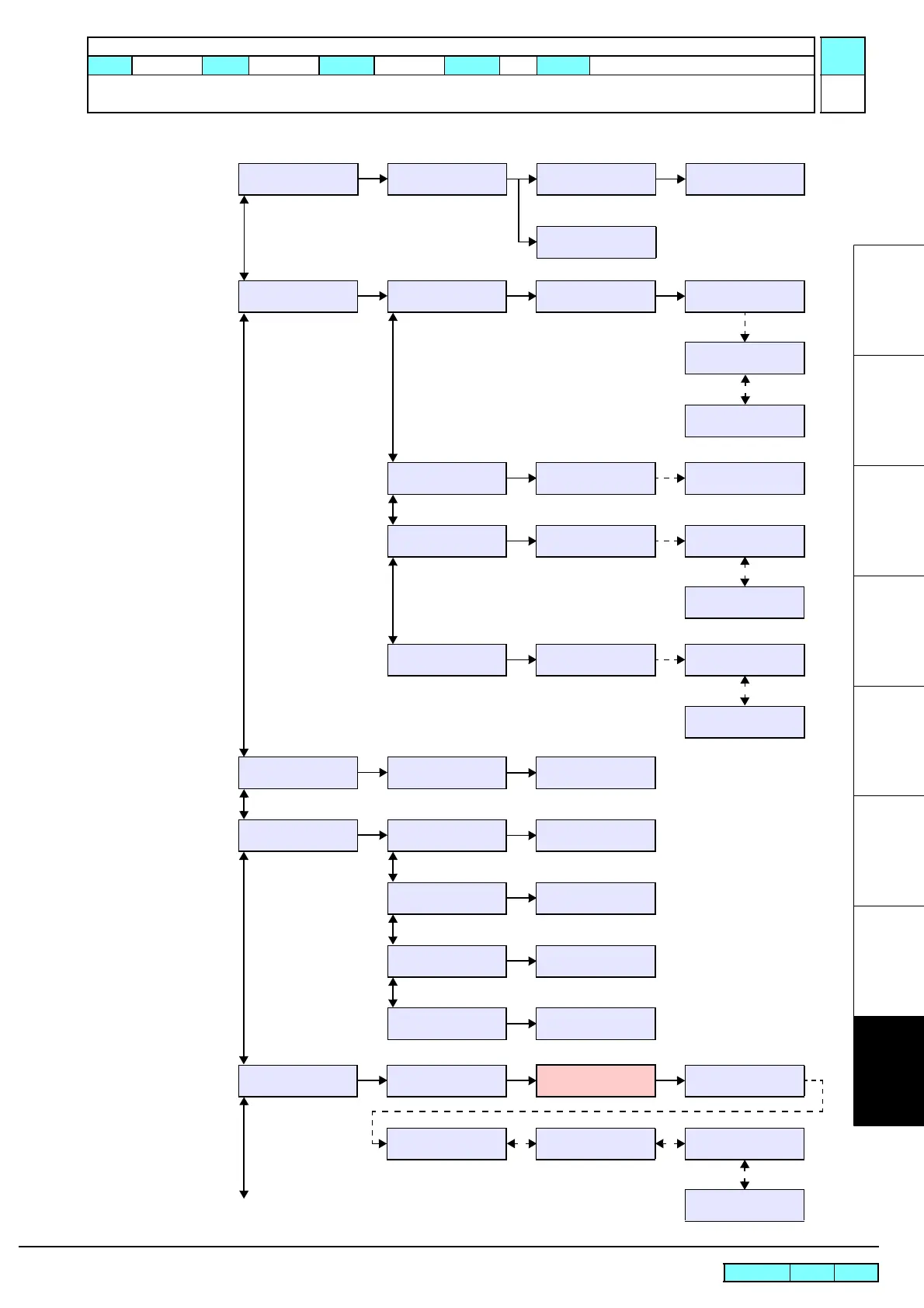

8.5.2 #TEST
1
2
3
4
5
6
7
8
[] / []
#TEST
TIMER CHECK <ent>
#TIMER CHECK
2007.10.05 21:36:00
#TIMER CHECK
2007.10.05 21:36:00
#TIMER CHECK
DoYou change it?:ent
-> 2008.10.04 21:36
2007.10.05 21:36:00
[FUNCTION]
#TEST
MEMORY CHECK <ent>
#MEMORY CHECK
CHECK:MAIN.SDRAM
#MEMORY CHECK
WAIT TIME :OFF
#MAIN.SDRAM CHECK
COUNT= 1
WriteData=h' 
Road Data=h' 
[] / []
[] / []
 MAIN.SDRAM ERROR 
address = h' 
[] / []
Error occurs.
#MEMORY CHECK
CHECK:MAIN.F-ROM
#MAIN.F-ROM CHECK
COUNT= 1
 ERROR 85 
ROM HASH
[] / []
Error occurs.
#MEMORY CHECK
CHECK:HEAD.EEPROM
#HEAD.EEPROM CHECK
COUNT= 1
 HEAD.EEPROM ERROR 
address = h' 
[] / []
Error occurs.
WriteData=h' 
Road Data=h' 
[] / []
#MEMORY CHECK
CHECK:32M SDRAM
#32M SDRAM CHECK
COUNT= 1
 32M.SDRAM ERROR 
address = h' 
Error occurs.
WriteData=h' 
Road Data=h' 
[] / []
[] / []
#TEST
SKEW CHECK <ent>
#SKEW CHECK
FEED :3m
#SKEW CHECK
 FEED 3m 
[] / []
#TEST
TEMP.CHECK <ent>
#TEMP.CHECK
HEAD TEMP. <ent>
#HEAD TEMP.
30 C (
 )
[] / []
#TEMP.CHECK
NOZZLE TEMP. <ent>
#NOZZLE TEMP.
CHECK = OK
[] / []
#TEMP.CHECK
HEAT SINK TEMP.<ent>
#HEAT SINK TEMP.
30 C (
 )
#TEMP.CHECK
SLIDER TEMP. <ent>
#SLIDER TEMP.
30 C (
 )
[] / []
Motion
#TEST
LINEAR ENCODER <ent>
#LINEAR ENCODER
ActiveWIDTH :1900mm
M =0000.0 E =0000.0
Mc= 0.0 Ec= 0.0
<<Coord. of point >>
Ms=000000 Es=000000
Mm=000000 Em=000000
Mr=000000 Er=000000
<<CommonCoord.SYS>>
ERR(ME-LE) = 00.00mm
MotorENC = 0000.00mm
LinearENC= 0000.00mm
[FUNCTION]Completed
[] / []
R.1.0
Maintenance Manual > Operation Flow > Service Mode > #TEST
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
