Maintenance Manual > Operating Principle > Ink System > Configuration
Model CJV30/TPC Issued 2008.08.04 Revised 2009.06.30 F/W ver. 1.00 Remark
1.2
Rev.
1.3.1 Configuration

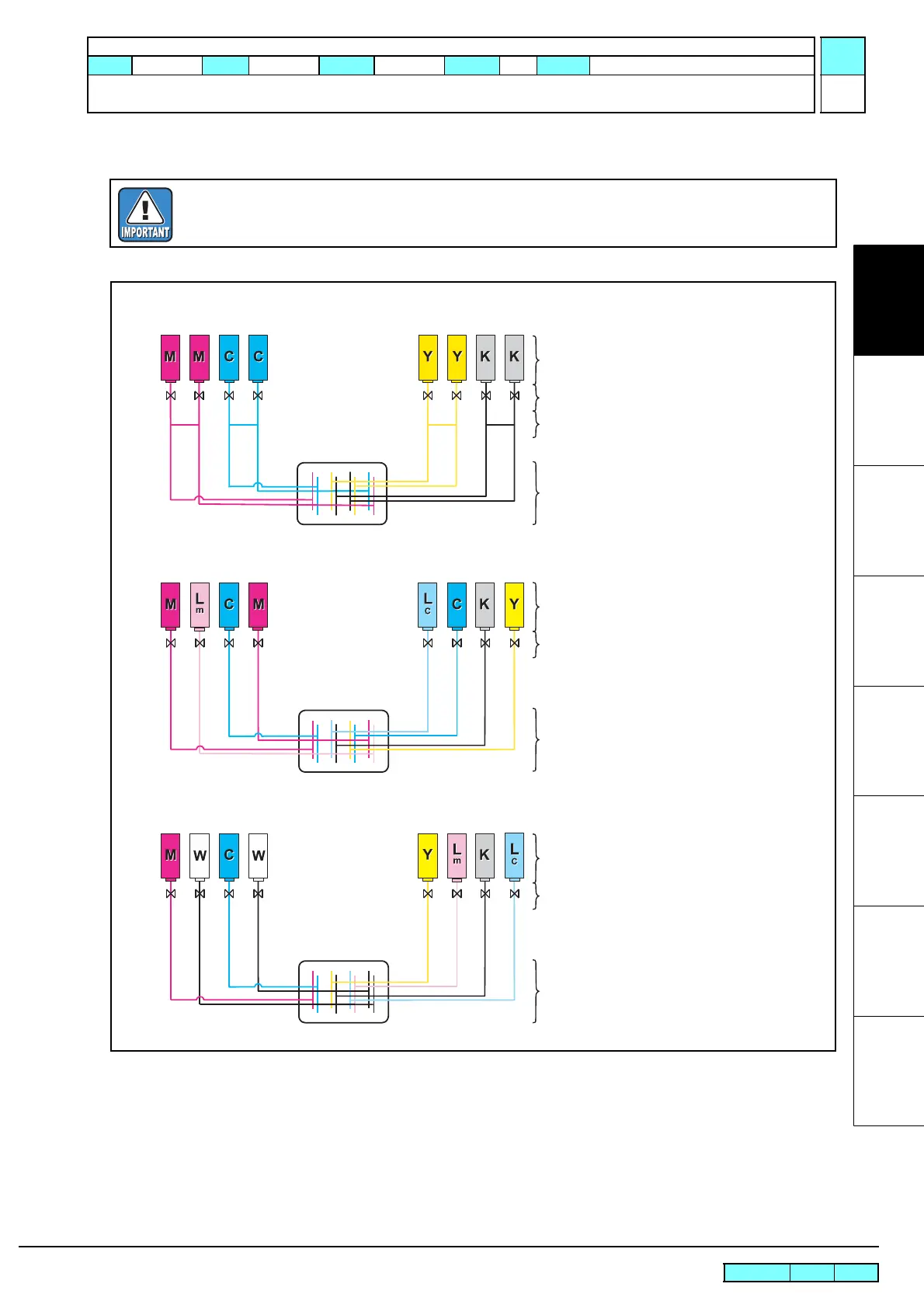

 Ink Supply Path Diagrammatic Illustration
When TPC is used, put Bl on C, and put Lbl on Lc below.
 When filling 4-color ink set
 When filling 6-color ink set
 When filling 6-color+white ink set (SS21 only)
Ink cartridge slot
Ink switching valve
Ink bridge
Print head
Ink cartridge slot
Ink switching valve
Print head
Ink cartridge slot
Ink switching valve
Print head
