2.1.1 P.1
1
2
3
4
5
6
7
8
R.1.1
Maintenance Manual > Electrical Parts > Block Diagram > Connection Diagram Inside the Main Body
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

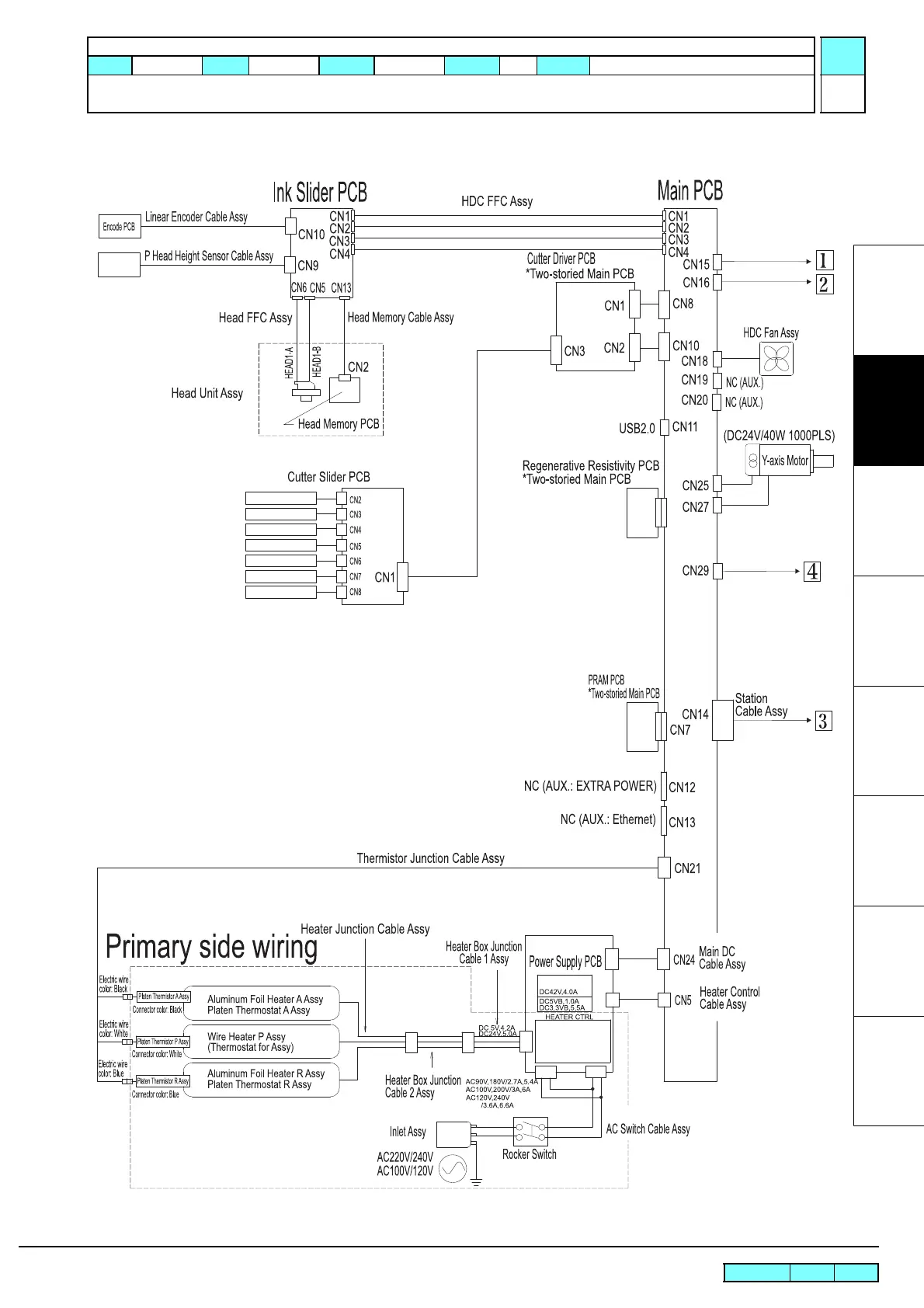

2.1.1 Connection Diagram Inside the Main Body
