- 14 -

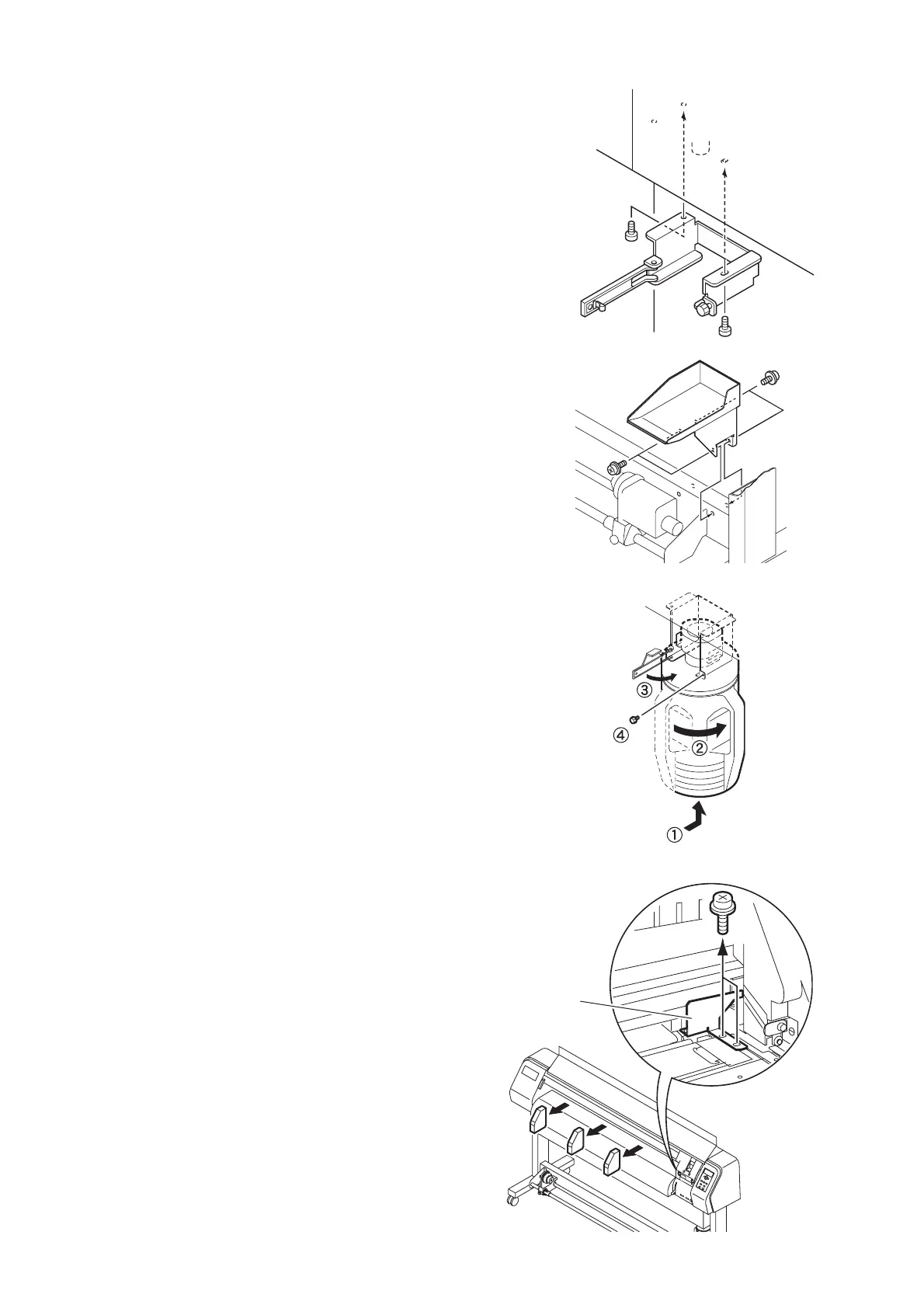

13. Attach the waste ink tank bracket to the plotter.
14. Attach the waste ink tank tray with four screws.
15. Attach the waste ink tank.
16. Open the front cover and then remove the sponges.
Remove the two screws and then remove the head
stopper.
Head stopper
