MIMAKI JV3-160SP Setup Guide

- 13 -

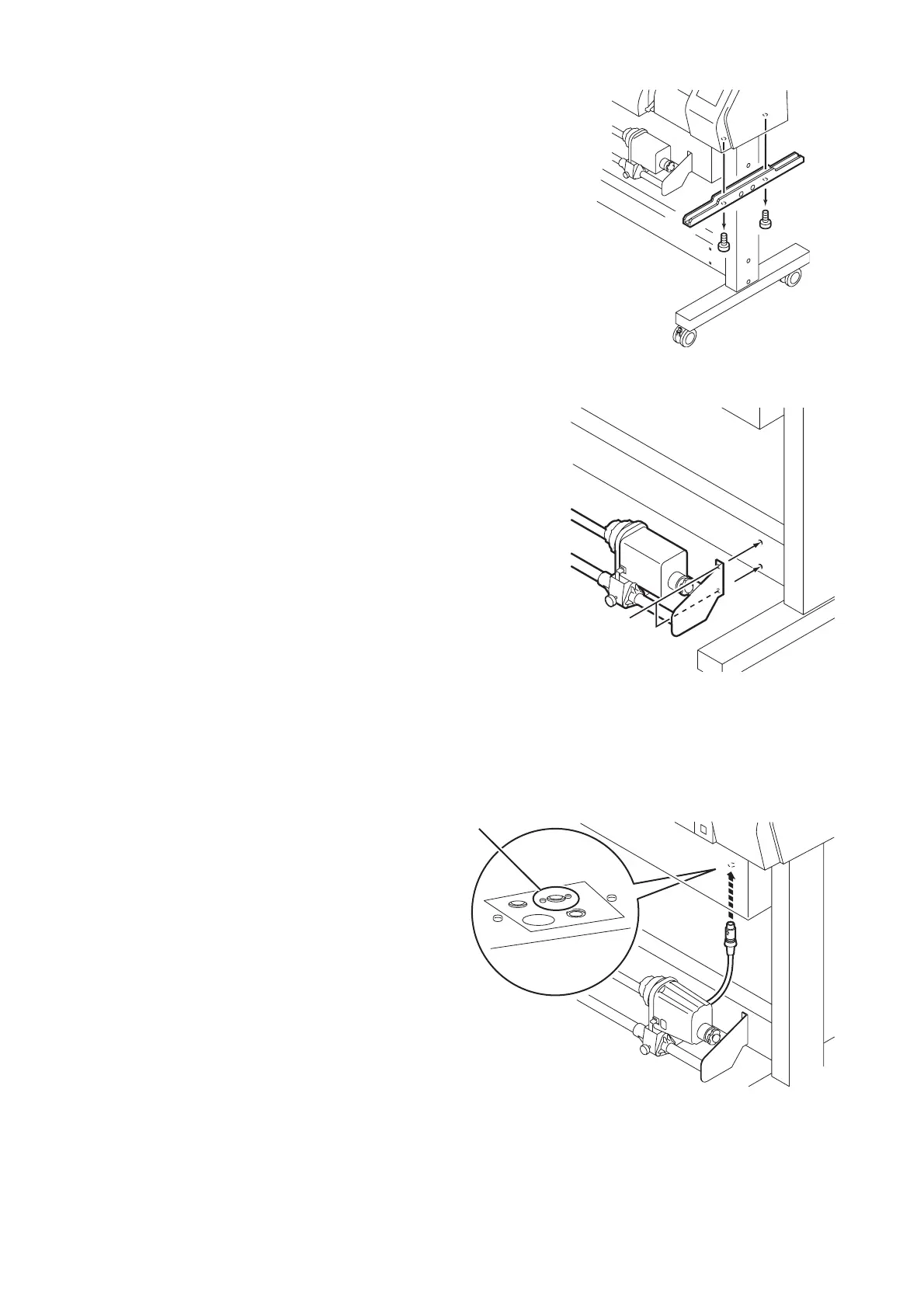

10. Remove two screws each from the right and left
sides and detach the right and left handles.
11. Remove the four screws which fix the take-up device
to the plotter.
Then, attach the take-up device to the stay.
12. Connect the cable of the take-up device to the con-
nector at the bottom of the plotter.
For take-up device
