- 20 -

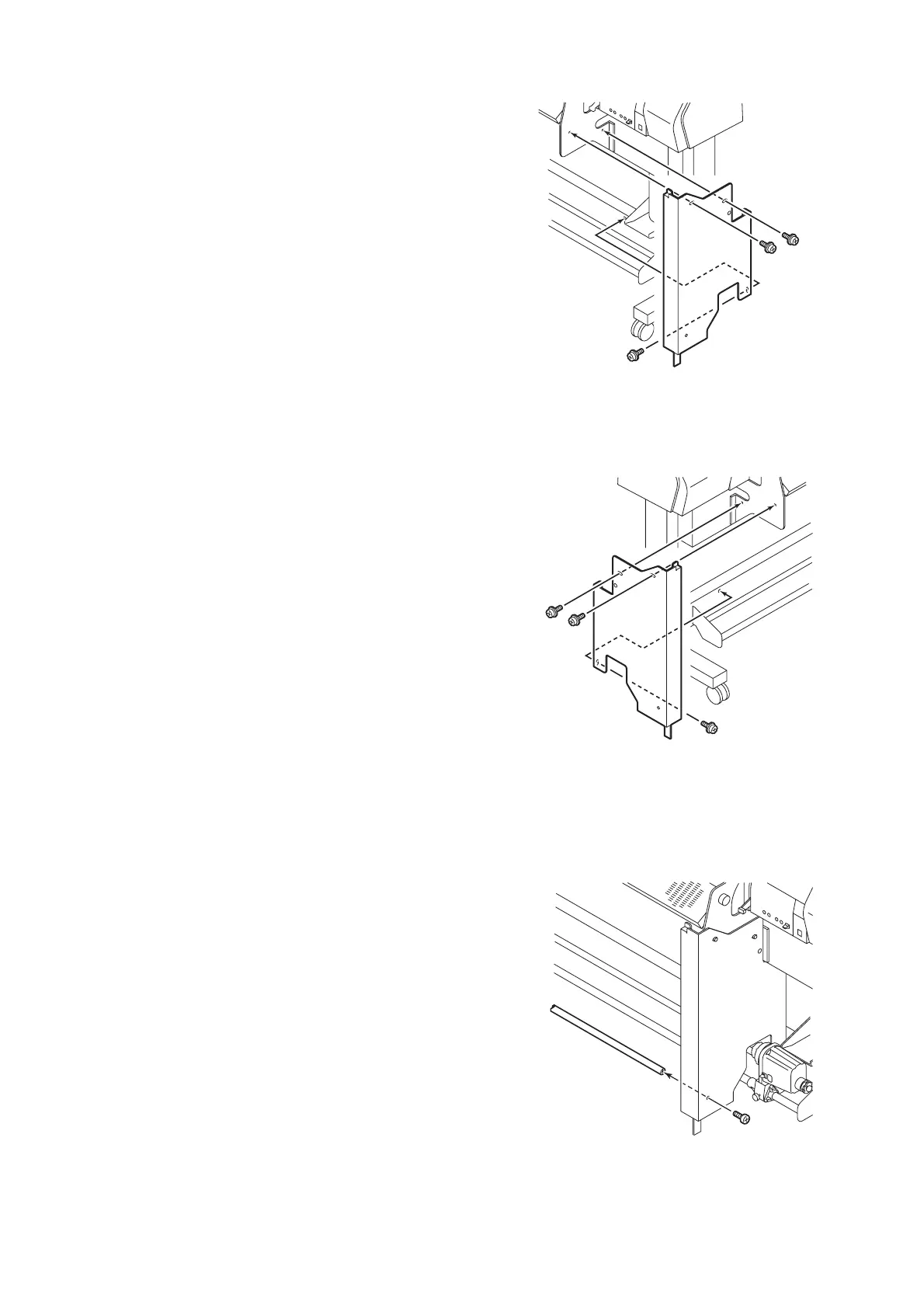

3. Attach the exhaust cover R to the drier fan stay R
and leg stay using 3 screws.
4. Attach the exhaust cover L to the drier fan stay L
and leg stay using 3 screws.
5. Attach the exhaust cover stay to the exhaust cover
R/L using 2 screws.
