– 3.10 –

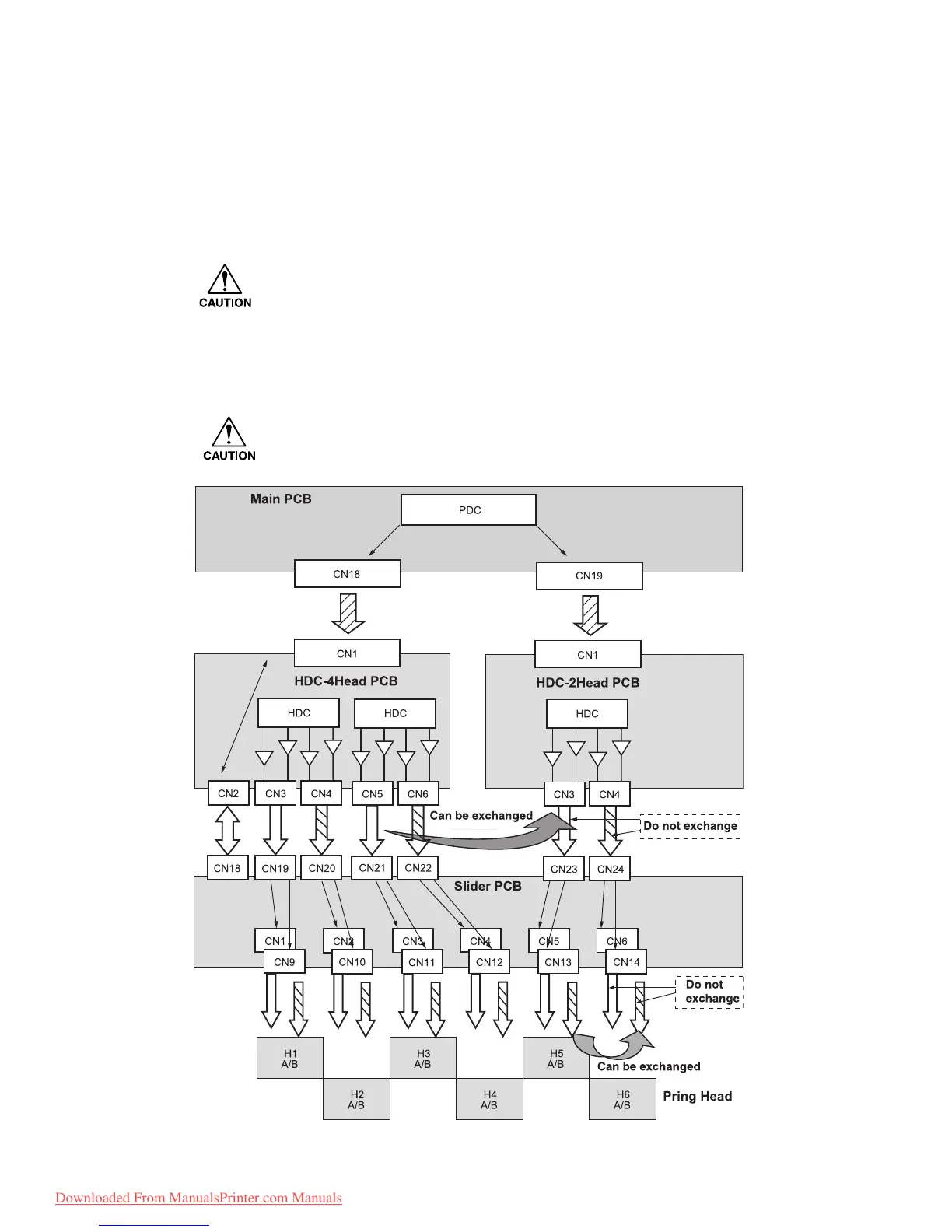

If none of the heads or nozzle rows discharges ink, check the following:
1. Check that the head ID is entered correctly.
2. If either nozzle row of the same head does not discharge ink, check the defective section by
exchanging the 21-wire FPC (connected to the head) within the same nozzle row (for example,
between CN9 and CN10).
Do not exchange the FPC between rows A and B because of power short-
circuit.
3. If neither row A nor row B within the same head discharges ink, check the defective section by
shifting the 40-wire FPC (to be mounted on the slider PCB) pairwise (for example, shift the
cable of CN21 and CN22 to CN23 and CN24).
Do not shift only one FPC because of power short-circuit.
