MIMAKI JV5 Series Operating Manual

4-15

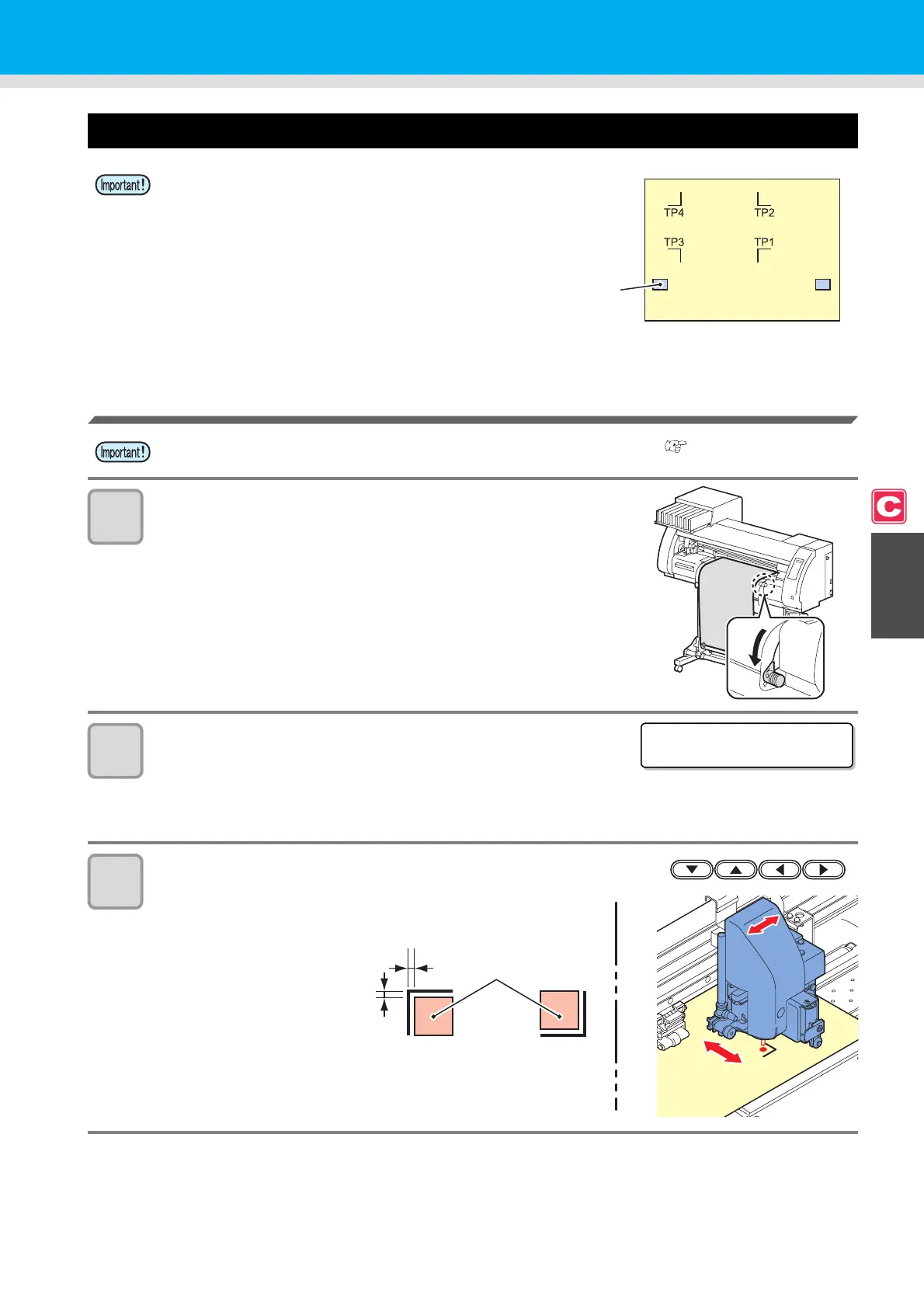

Cutting out Data with Register Marks
4
Extended Functions – Cutting –
Method of Detecting Register Marks
Setting the origin of the register mark right after setting of a medium
1
Load the medium and lower the clamp lever.
• The pinch rollers retain the sheet.
• Set the medium referring to the procedures from P.2-25.
2
Detecting the medium
• Detect the medium referring to P.2-25 "Setting a Roll Medium".
• Once the sheet is detected, the display indicates that the cutter unit
is waiting for the register mark detection operation.
3
Move the Light Pointer into the area shown below by pressing .
• If the medium is curled, straighten it.
When using a cutting software having no mark
function, use a medium which has neither stains nor
images in the area (A) located between TP1 and
TP2 and in the area (B) located between TP1 and
TP3.
• Set the setting of the register mark detection to [1pt] or more in advance. ( P.4-11)
Pinch roller
SEARCH START POS .
0.0 0.0
1 mm or more
away
Mark detection
position
Register mark:
Type 1
Register mark:
Type 2
