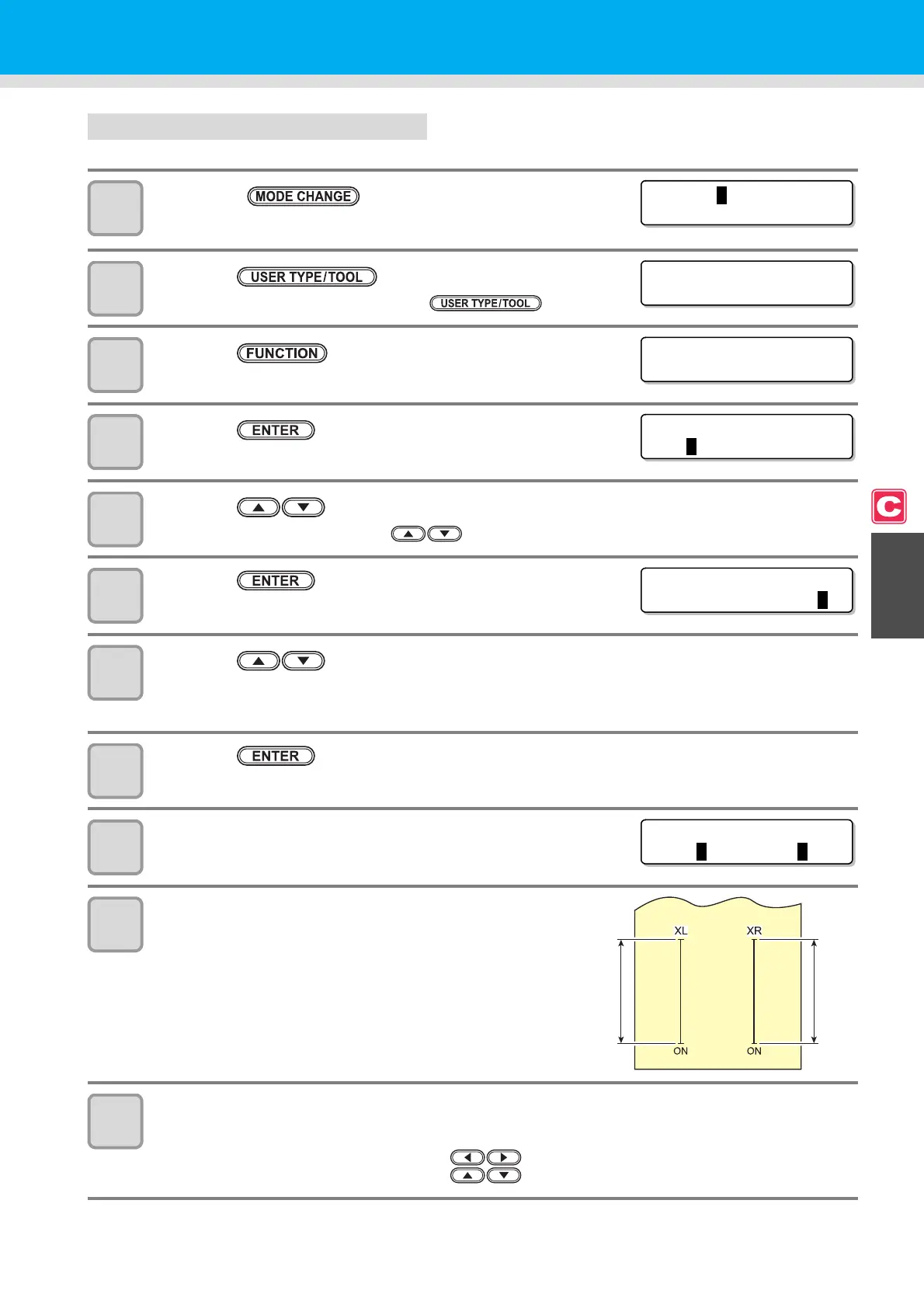

MIMAKI JV5 Series Operating Manual

4-47
Other Convenient Functions
4
Extended Functions – Cutting –
Setting procedures
1
Press the key in LOCAL to select the
cutting mode.
2
Press the key.
• If changing the tool to be set, press the key to switch.
3
Press the key.
4
Press the key.
5
Press the to set the basic length of X axis.
• Input the basic length : with the .
6
Press the key.
7
Press the to specify the position of the cutting (plotting with a pen) of the
direction correction adjustment pattern.
• Offset the all lines (XR, XL) inside the medium.
8
Press the key.
• Cutting (plotting with a pen) of the adjustment patter will start.
9
Display the current corrected value.
10
Measure lines of ON of XR and XL actually.
• Raise the clamp lever and remove the medium and then
measure.
11
If the actual measured value is difference from the basic value, press the following
keys to change the correction value.
Selecting XR/XL axis : with the
Changing the correction value : with the
<LOCAL . C > [ #01 ]
CUT 1 ( 3 0 / 6 0 / 0 . 3 0 )
SPD PRS OFS
[CUT1] 30 60 0 . 30
DIST.COMP. [CUT1]
<ENT>
DIST.COMP. [CUT1]
X=
5 00
DIST.COMP. [CUT1]
DRAW SH I FT =
0 mm
DIST.COMP. [CUT1]
XR =
0 .0 XL = 0 .0
