2-18

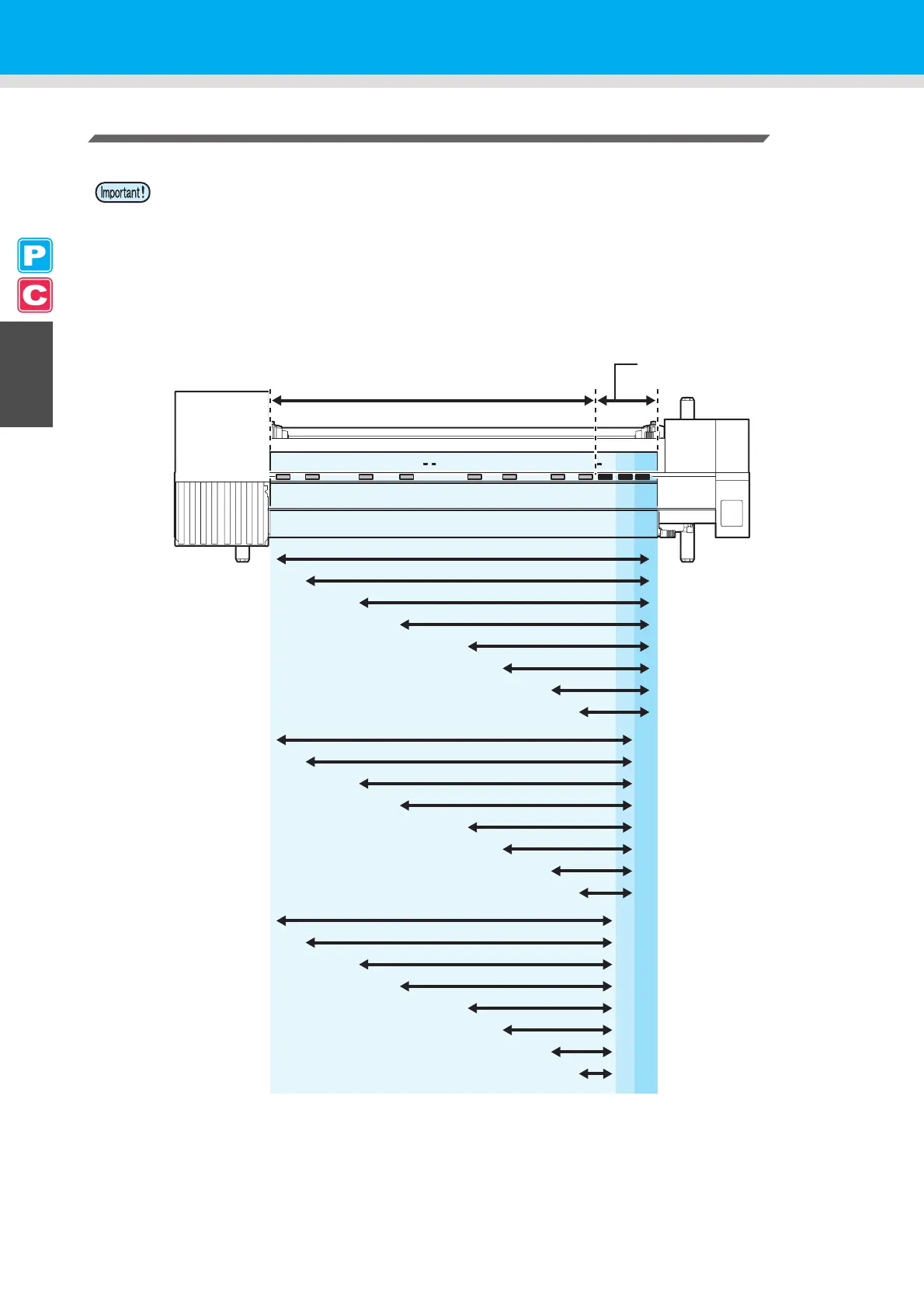

Medium Size and the Grid Roller (CJV30-160)
The grid roller positions are determined by the size of the medium.
• To feed the medium smoothly, select the grid roller positions so that the medium can be held at equally
spaced intervals.
• When the grid rollers to be used are determined, adjust the pinch roller unit referring to "How to Adjust
the Pinch Roller" of P. 2-17.
• You can use any number of pinch roller units from 2 to 7.
• Adjust the pinch roller of both ends so that they are within the range of 10cm from medium left end and
2cm from medium right end. If adjusting them to the further position, it will remain uncut when cutting
the medium.
1577 ~ 1620mm
1446 ~ 1514mm
1212 ~ 1272mm
1032 ~ 1092mm
732 ~ 792mm
576 ~ 644mm
364 ~ 424mm
241 ~ 301mm
1501 ~ 1561mm
1370 ~ 1438mm
1136 ~ 1196mm
956 ~ 1016mm
656 ~ 716mm
500 ~ 568mm
288 ~ 348mm
165 ~ 225mm
1413 ~ 1473mm
1284 ~ 1350mm
1048 ~ 1108mm
868 ~ 928mm
568 ~ 628mm
414 ~ 480mm
200 ~ 260mm
85 ~ 137mm
GR1
GR2
GR4
GR3
GR11
GR10
GR5
GR6
GR7
GR8
GR9
Determine the grid rollers to be used
according to the size of the medium.
The right end of the medium
should come within this range.
GR: Grid roller
