Setting a Medium
2-34

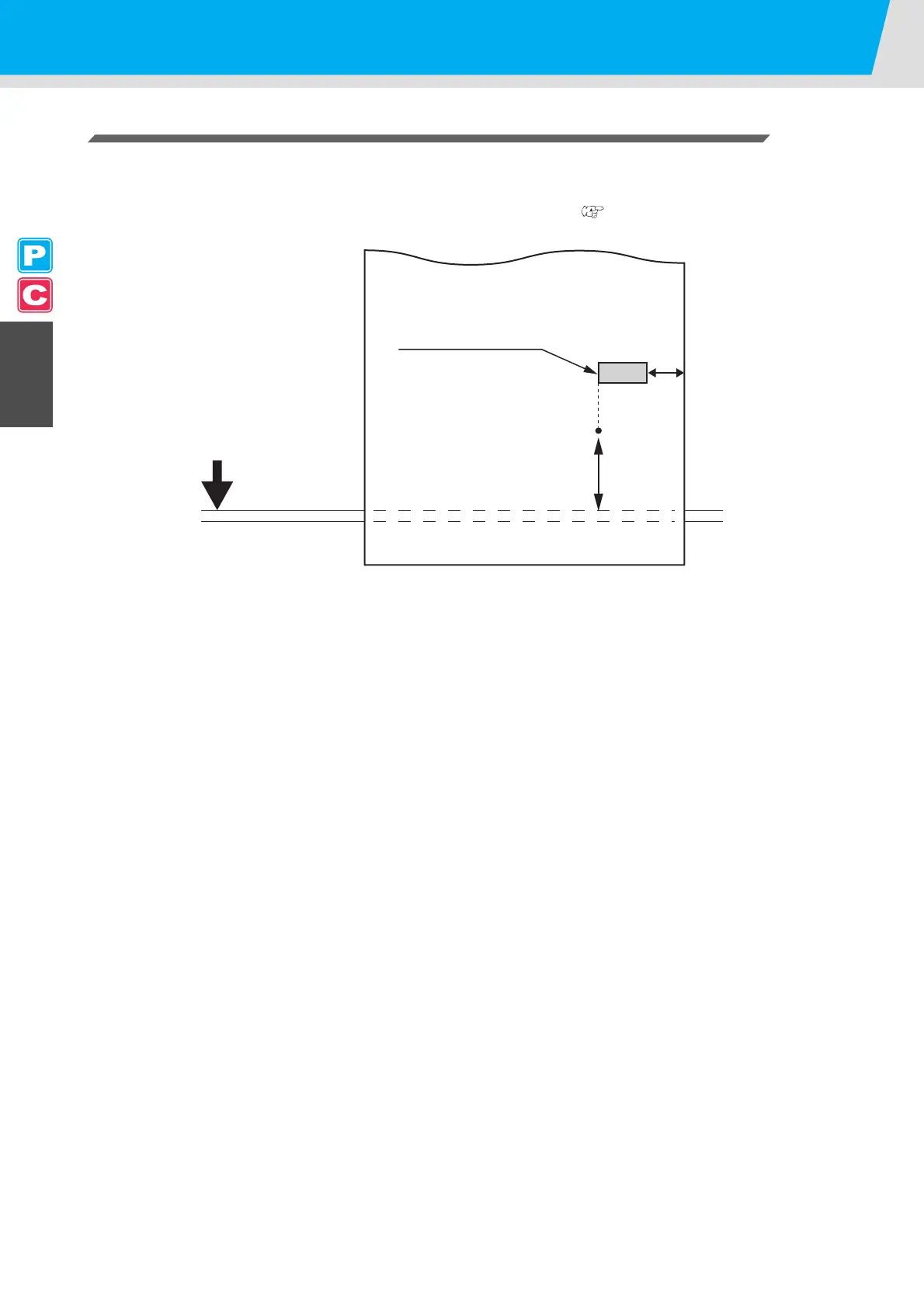

Reference for Setting Position of the Origin
The print origin in the depth direction (X') is positioned at about 40 mm rearward from the cutting line.
The scanning direction (Y’) is positioned at the left end of the first pinch roller (the right end pinch roller seen from
the front of the main body).
The value in the scanning direction (Y') can be changed using "Margin"
( P. 5- 8 ) in Function mode. This can be
changed by using the jog key.
Cutting line
About 40 mm
(X')
5 mm
(Y')
The position of the
scanning direction (Y')
Pinch roller
