Defibrillator/Monitor Operator’s Manual 2 - 7

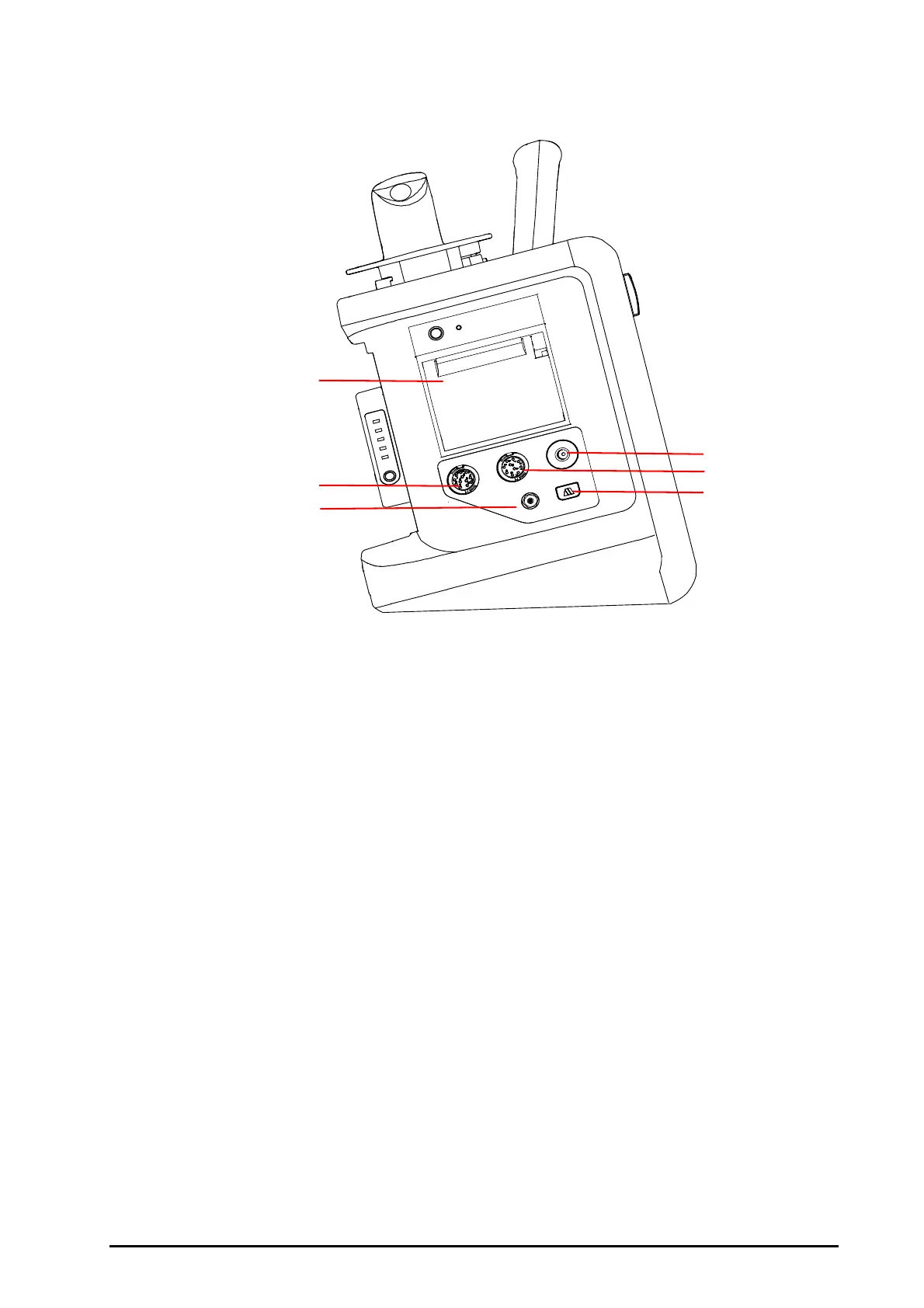

2.4.2 Left View

(1) Recorder (2) ECG cable connector

(3) Gas oulet (4) NIBP cuff connector

(5) SpO

sensor connector (6) CO

sampling line connector

(1)

(2)

(3)

(4)

(5)

(6)
