Mindray BeneHeart D3 User Manual

Defibrillator/Monitor Operator’s Manual 2 - 9
2.5 External Paddles
(1) Hook
(2) Battery
(3) Equipotential grounding terminal
When the defibrillator/monitor and other devices are to be used together, their
equipotential grounding terminals should be connected together to eliminate the
potential difference between them.
(4) External power input
It connects an AC power cord or a DC/AC adapter to run the equipment respectively on
the external AC mains or DC power supply.
(5) Network connector
It is a standard RJ45 connector.
(6) USB connector
(7) Multifunctional connector
It connects a CPR sensor, provides ECG output and defib synchronization input.

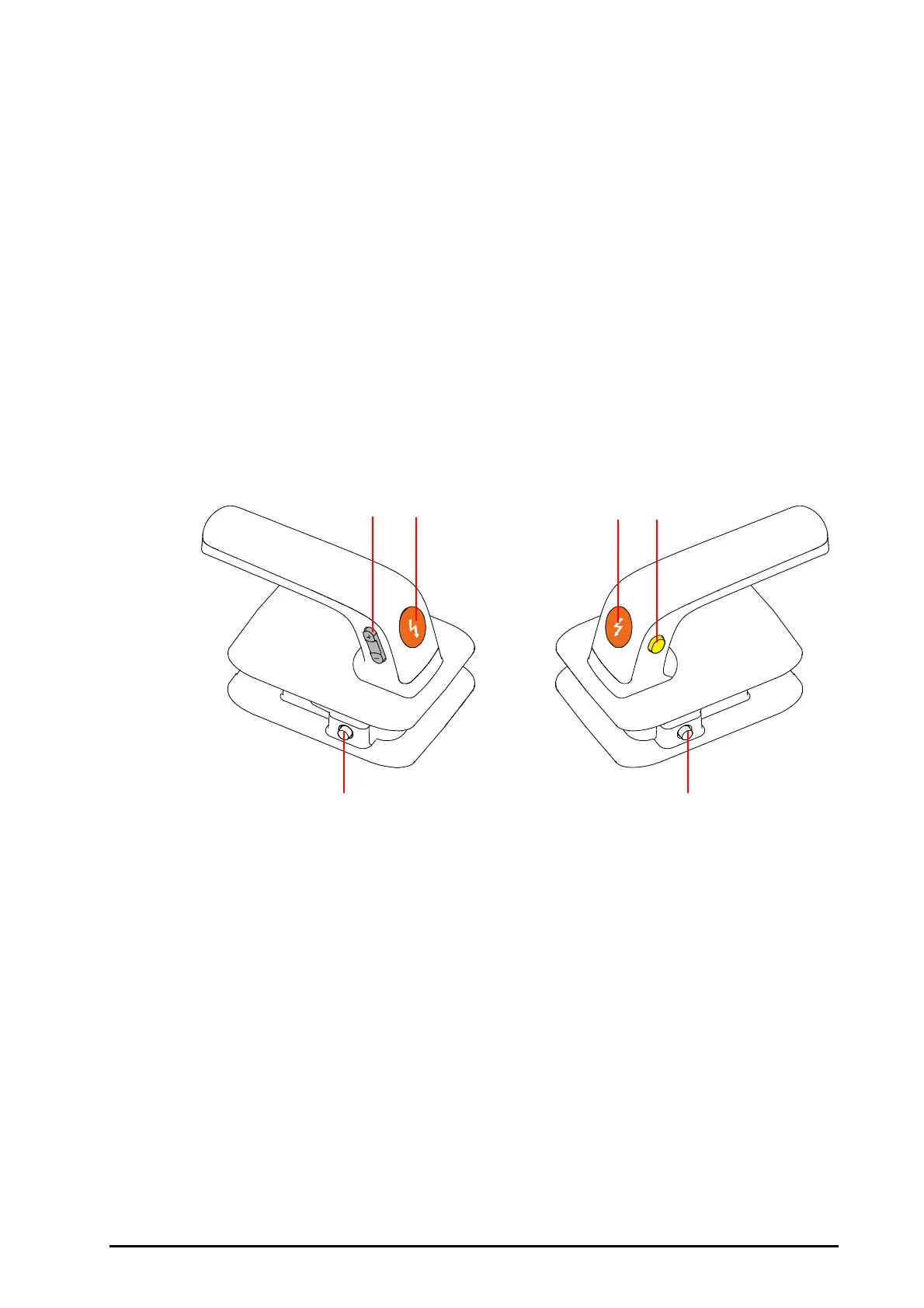

Sternum paddle Apex paddle
(1) Energy Select button
(2) Shock button
(3) Charge button
(4) Latch button
Press this button to get for pediatric paddles. For details, refer to 7.4.1Using Pediatric
Paddles.
(1) (2) (2) (3)
(4)
(4)

Mindray BeneHeart D3 Specifications

General

Type	Defibrillator
Display	Color TFT LCD
Display Size	5.7 inches
Waveform	Biphasic Truncated Exponential (BTE)
Heart Rate Range	15-300 bpm
SpO2 Range	0-100%
NIBP Measurement Method	Oscillometric
Printer Type	Thermal
Paper Width	50 mm
Paper Speed	25 mm/s
IP Rating	IP44
Modes	Manual, AED, Pacing
AED Mode Energy Sequence	150J, 200J
Charging Time	<5 seconds to 200J
Battery Type	Lithium-ion
ECG Monitoring	3-lead
Energy Selection	1-360 J (Manual Mode)
