Mindray BeneHeart D3 User Manual

Defibrillator/Monitor Operator’s Manual 7 - 5
7.4.1 Using Pediatric Paddles
The external paddles provide both adult paddle electrodes and pediatric paddle electrodes included inside.

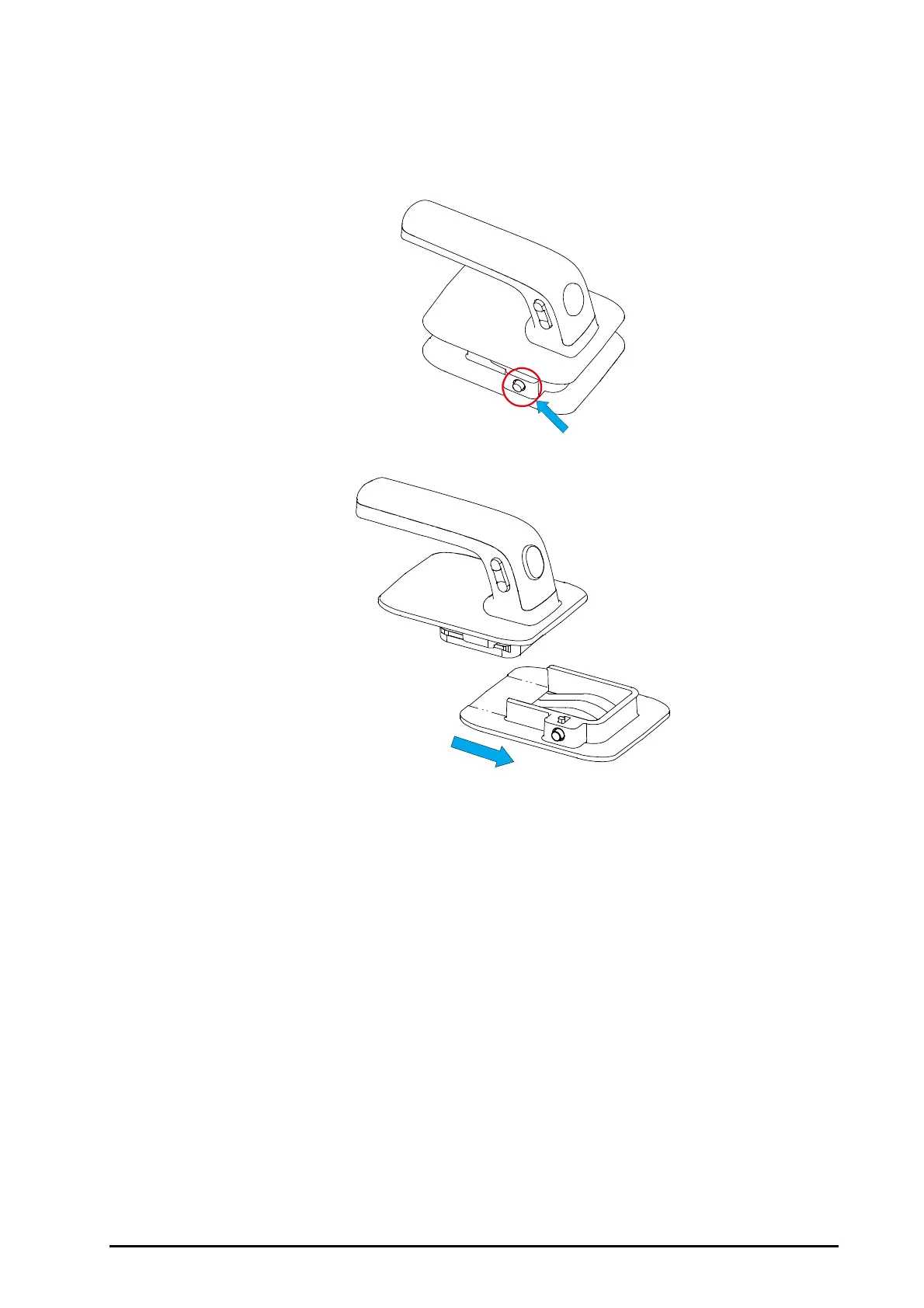

To use the pediatric paddles:
1. Press the latch buttons on the external paddles.
2. Pull forward the adult paddle electrodes to remove them.
For details on the defibrillation procedures, refer to 7.4Manual Defibrillation Procedure.
7.4.2 Using Internal Paddles
To defibrillate using internal paddles:
1. Switch the Mode Select knob to Manual Defib.
2. Select the appropriate paddle size.
3. Connect the internal paddles to the defibrillator by aligning the white pointer on the paddles cable with
the arrow on the therapy port. Push until you hear its click into place.
4. Select energy by pressing the Energy Select button on the front panel.

Mindray BeneHeart D3 Specifications

General

Type	Defibrillator
Display	Color TFT LCD
Display Size	5.7 inches
Waveform	Biphasic Truncated Exponential (BTE)
Heart Rate Range	15-300 bpm
SpO2 Range	0-100%
NIBP Measurement Method	Oscillometric
Printer Type	Thermal
Paper Width	50 mm
Paper Speed	25 mm/s
IP Rating	IP44
Modes	Manual, AED, Pacing
AED Mode Energy Sequence	150J, 200J
Charging Time	<5 seconds to 200J
Battery Type	Lithium-ion
ECG Monitoring	3-lead
Energy Selection	1-360 J (Manual Mode)
