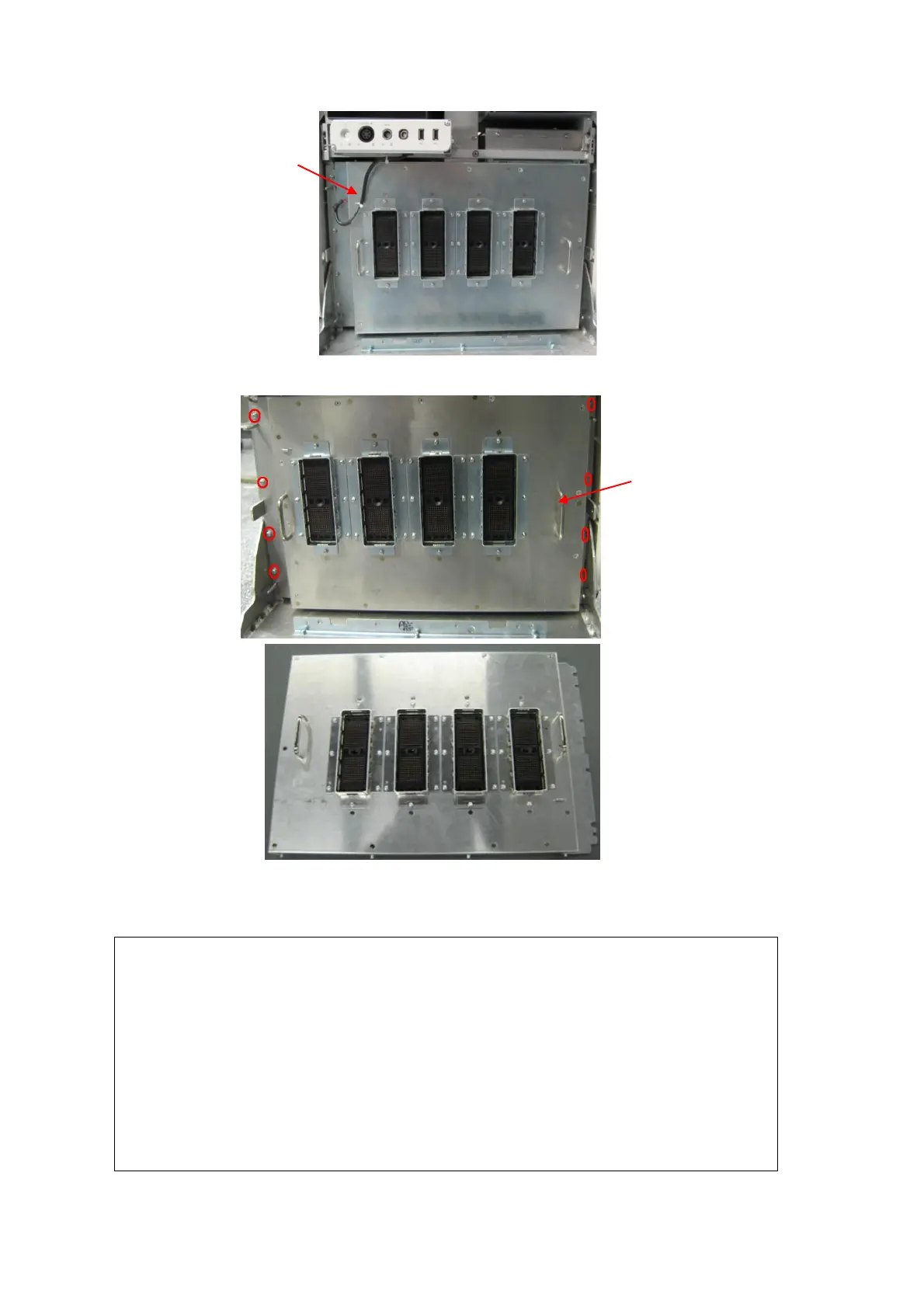

7. Unscrew 8 M4X12 screws fixing probe board assembly and pull it out.
9.3.3 Hard Disk Assembly
Please pay attention to the following matters during
disassembling/assembling, otherwise the hard disk will be damaged:
Hold the side of the hard disk, and please do not touch the board
of the hard disk.
Fasten the screws with the handy screw driver, and do not with
the electric screw driver.
The torsion value of the screw lock is:
M3: 4 to 6 kgf.cm
M4: 6 to 8 kgf.cm
