3-8 System Installation
3.3.5 Connecting the Transducer
Four sockets (A, B, C, D) are configured on the system; Every socket can be connected with all
types of supported transducers.

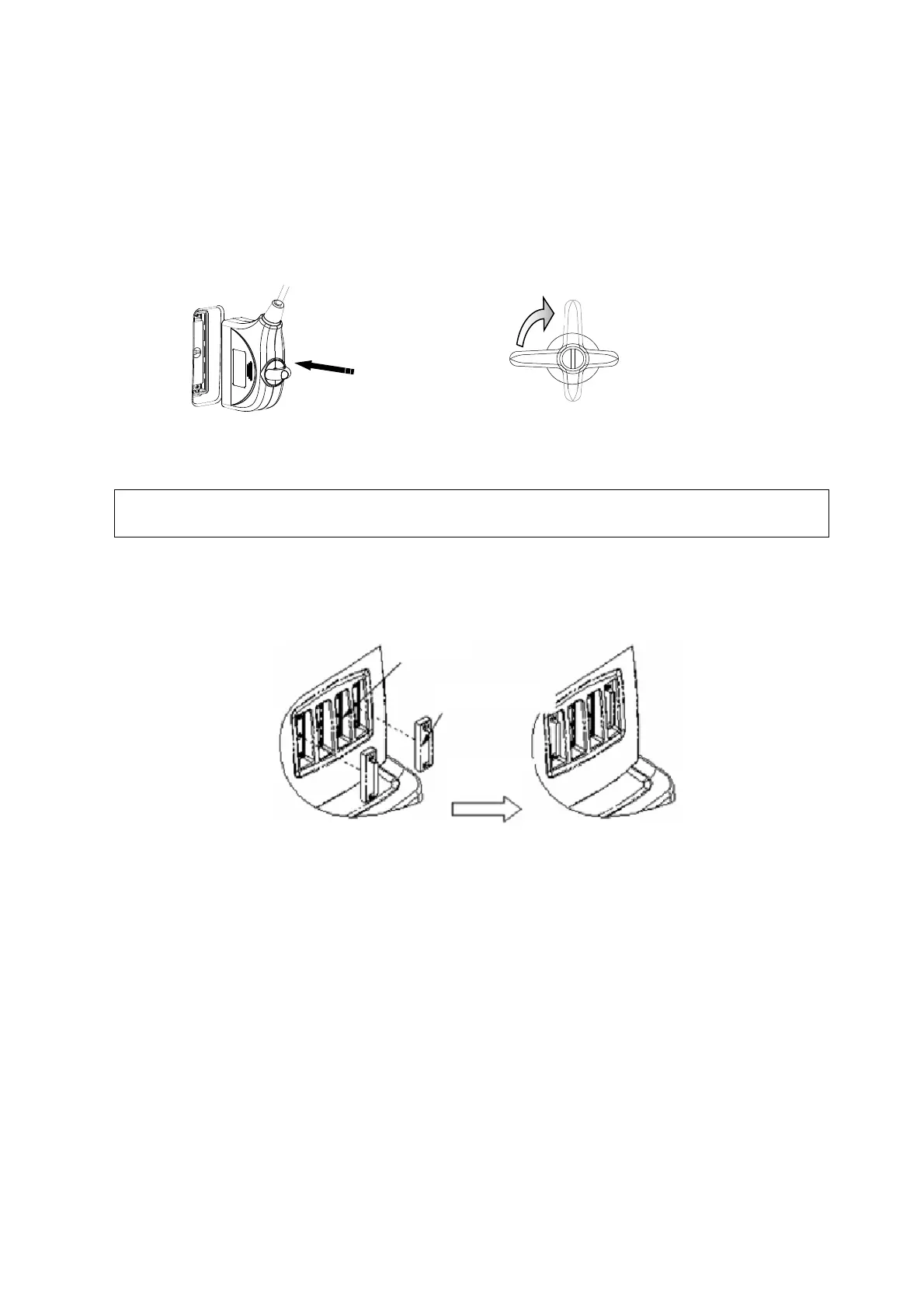

1. Keep the cable end of the transducer to the right side of the system, and insert the connector
into the socket of the system, and then press in fully. (Shown as the left figure)
2. Turn the lock handle 90° clockwise to lock it securely. (Shown as the right figure)
3. Place the probe properly to avoid being treaded or wrapping with other devices. DO NOT allow
the probe head to hang free.
4. Turn the lock handle 90°anticlockwise to unlock it, and then pull out the connector.
Before inserting the connector into the probe port, inspect the connector pins. If any pin
is bent, do not use the probe until it has been inspected / repaired / replaced.
3.3.5.1 Using the Probe Dust-proof Cover
If a probe port is not used for a long period of time, please use the dustproof cover to protect the
probe port from dust; otherwise bad contact may result.
3.4 Installing Peripherals
For the models of the supported peripherals, please refer to “2.1.3 Supported Peripherals”.
3.4.1 Connecting the Footswitch
1. Directly insert the USB plug of the footswitch to the system applicable USB ports.
