Structure and Assembly/Disassembly 9-13

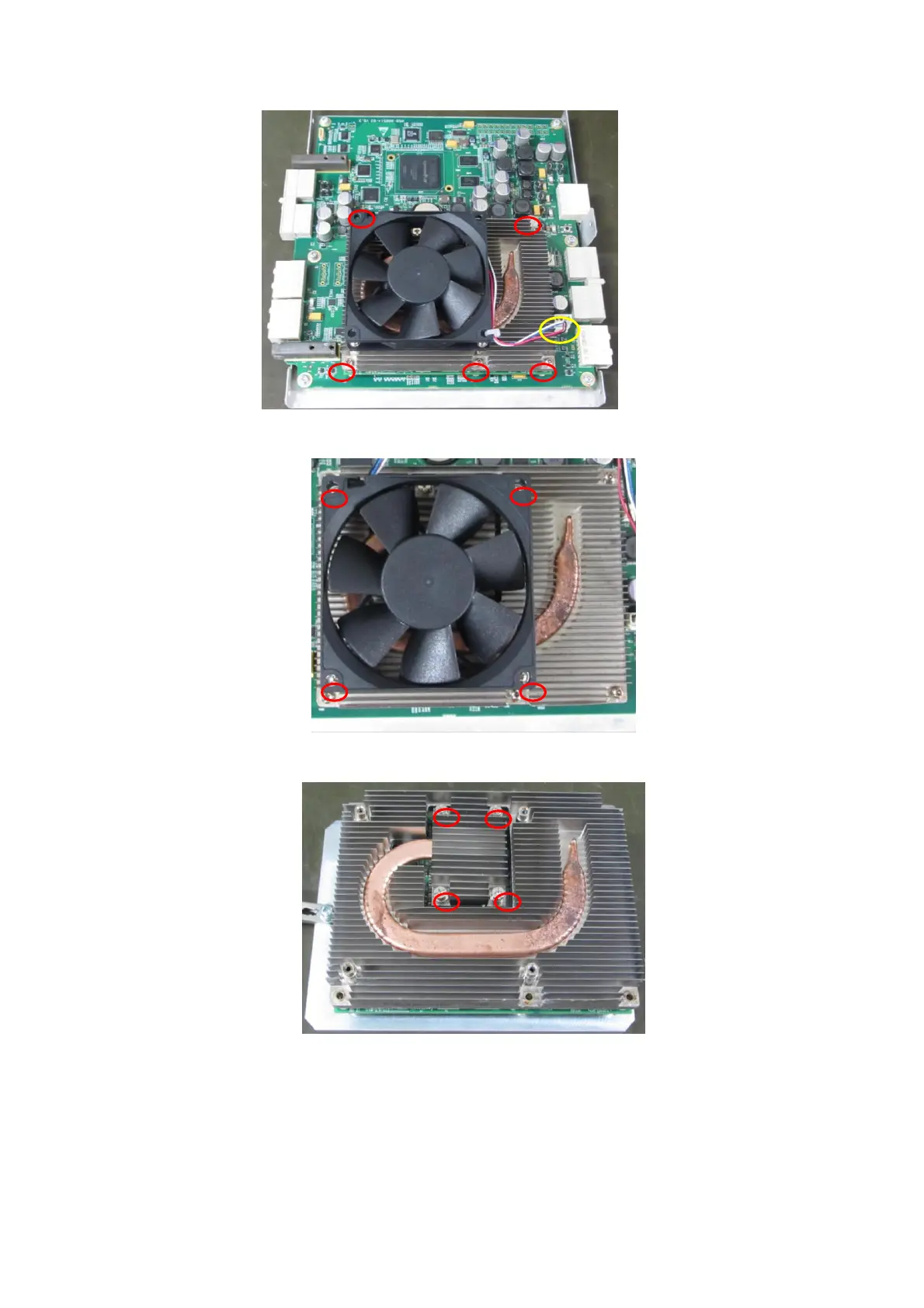

3. Remove the four fan-fixing M3X8 screws to see the fixing screws between radiator and CPU
board;
4. Loose the spring screw between the radiator and CPU board to take off the radiator so that CPU
board can be removed.
5. When the COME module is disassembled from the digital board, remove six M3X8 screws for
fixing digital board assembly to remove the digital assembly.
Note: there are 5 D-type studs on the digital board, you need to remove the those 5 studs from the
old digital board to the replaced one.
