Structure and Assembly/Disassembly 9-23

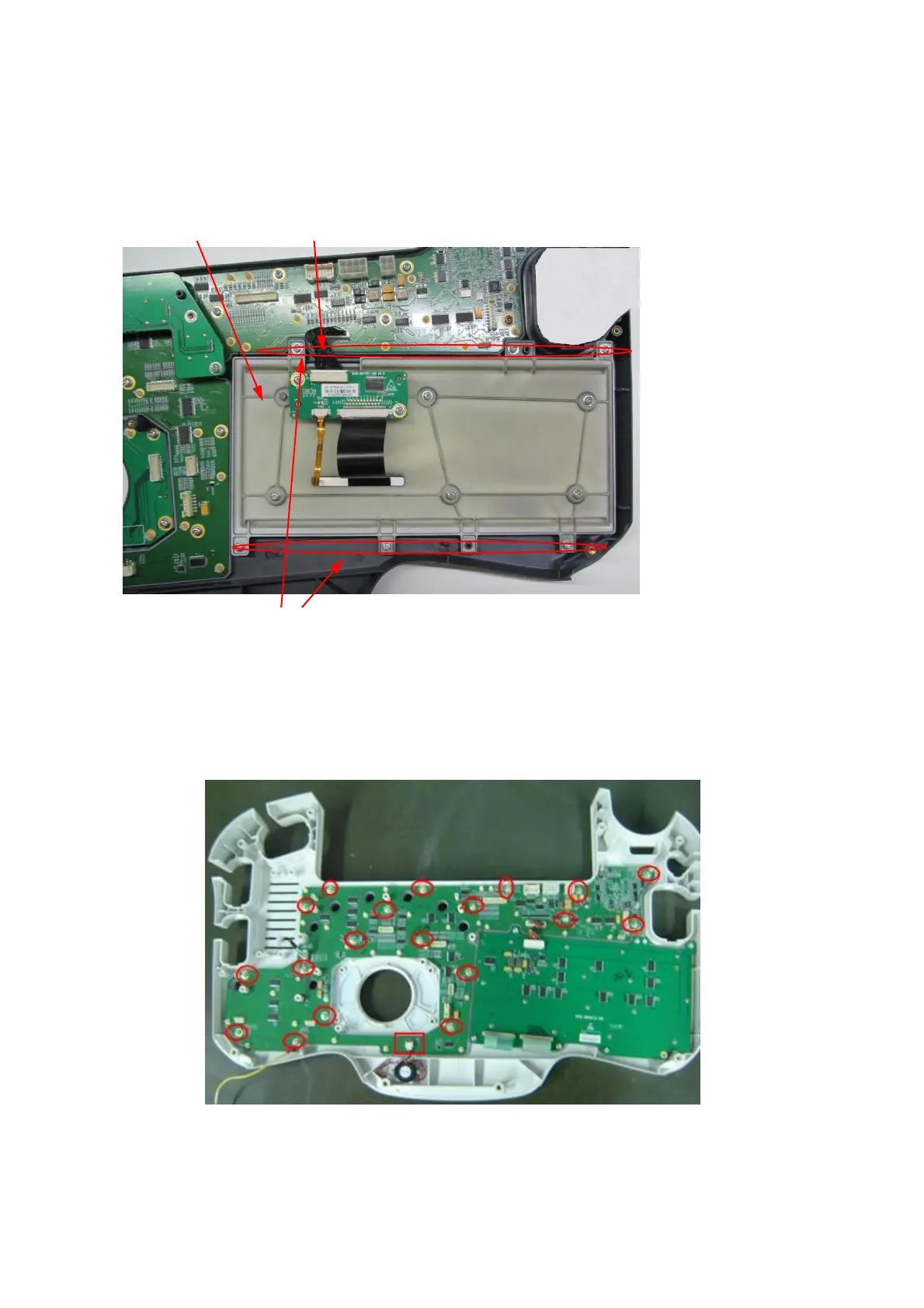

9.3.9.7 Digital Keyboard Module (for Win7)
1. Remove the fixed piece of control panel, see step 1 in 9.3.9.6 chapter.
2. Pull out signal wire of small keyboard and unscrew six M3X8 screws to remove digital
keyboard module.
Small keyboard assembly signal wire
Panhead screw M3X8 (6)
9.3.9.8 Keyboard Board and Silicon Key/1 of Main Control Keyboard
1. Remove master panel six in one encoder module, zoom encoder module, NAVI encoder
module, TGC module and trackball module.
2. Pull out buzzer wire and unscrew nineteen M3X8 screws to remove keyboard board and
silicon key of main control keyboard.
To Next Page
