9-34 Structure and Assembly/Disassembly

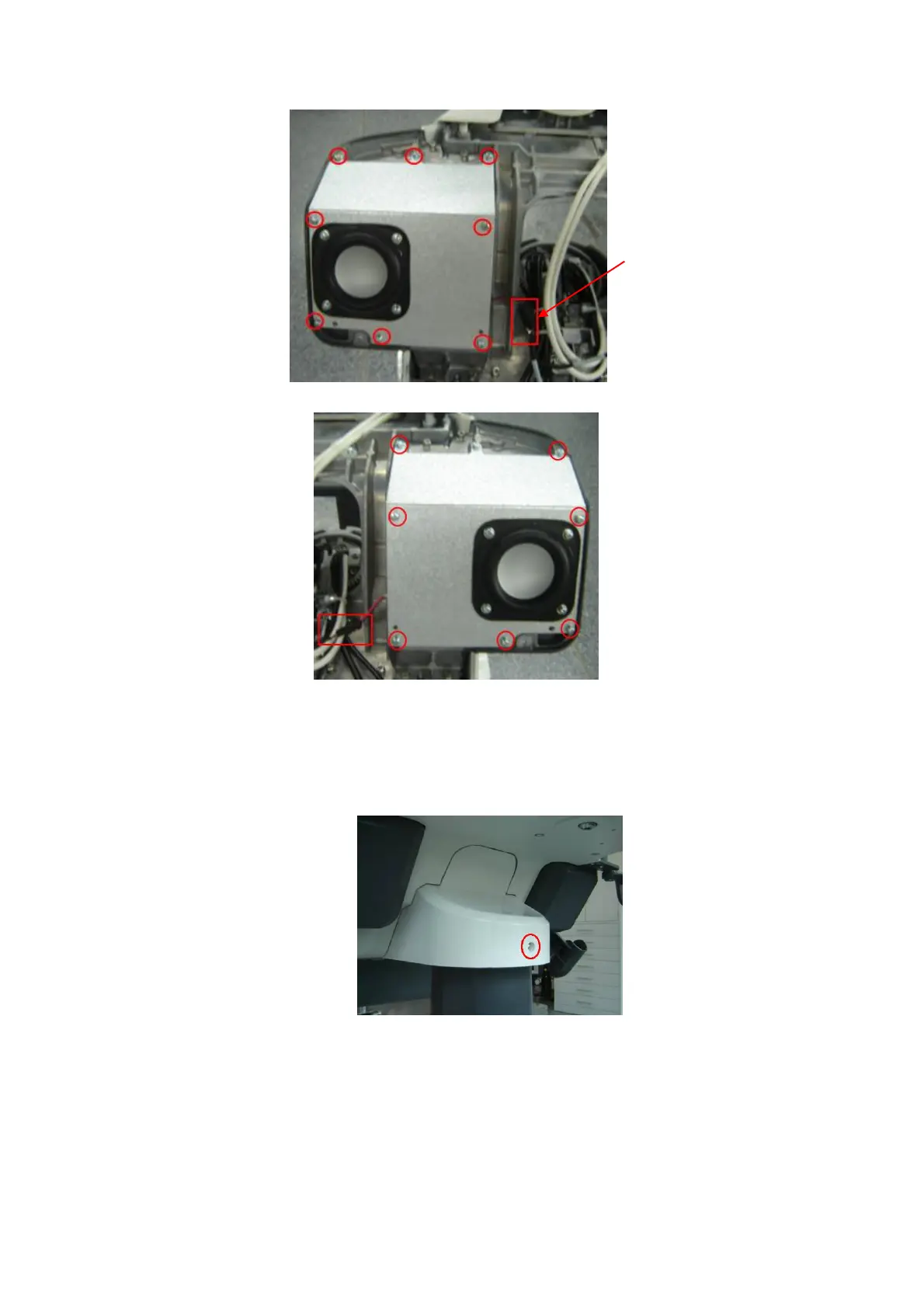

3. Refer to procedure 2 to remove right speaker assembly.
9.3.12.4 Disassembly of Gas spring Assembly
1. Remove the probe board assembly according to section “9.3.2”, Remove the Control Panel
Assembly according to section “9.3.9”, and Remove the Minor Panel Assembly according to
section “9.3.11”.
2. Unscrew one M4X12 Philips panhead screw and remove the rear cover.
3. Pull out the MIC connection cable, cut off cable tie (4), pull out left/ right speaker plugs.
