9-36 Structure and Assembly/Disassembly

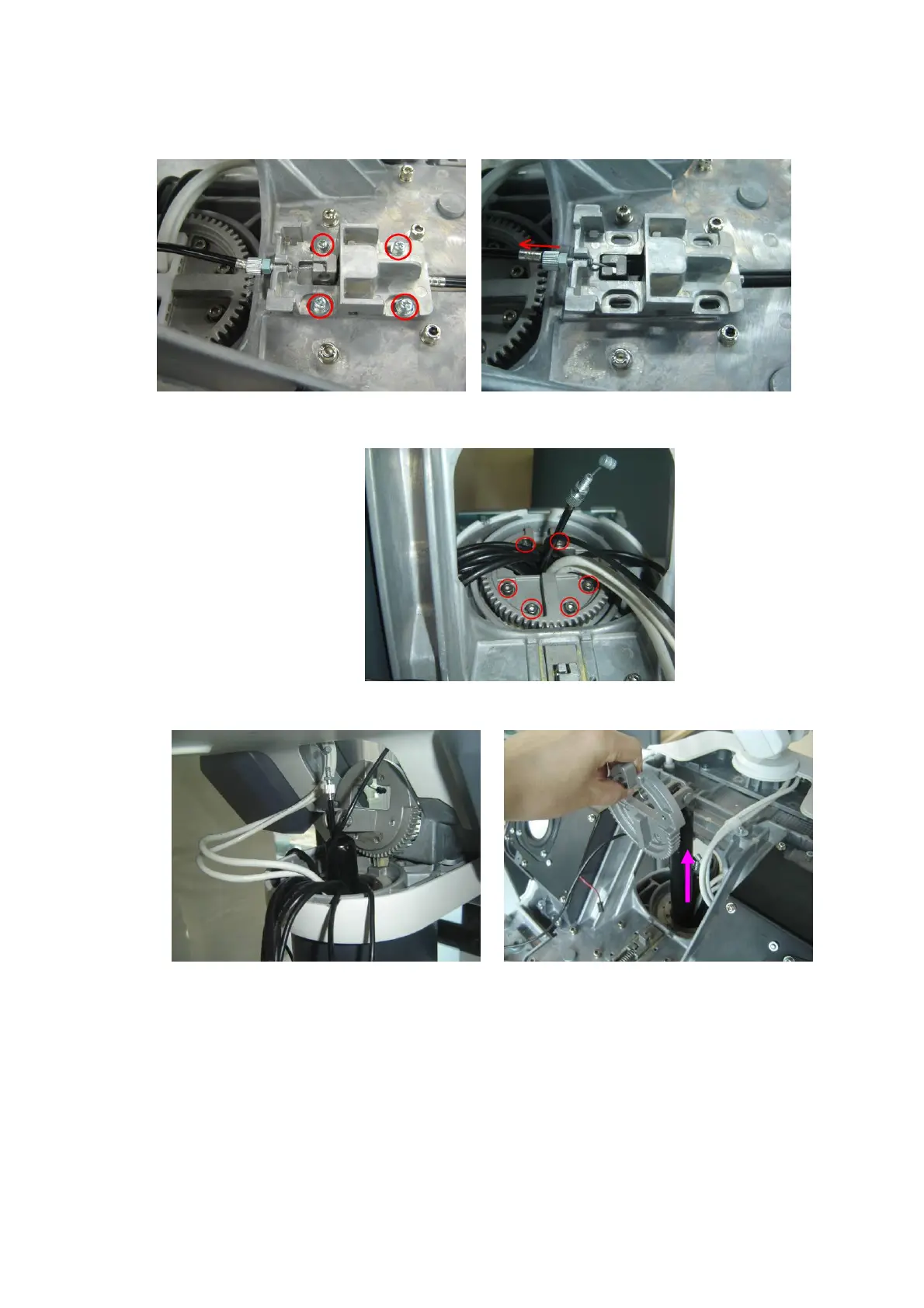

7. Remove Philips panhead screw M4X12 (4 pcs), loosen sliding block to take out the lifting line
bolt and take out the lifting line from sliding block.
8. Then remove the round inner head screw M5X16 (6 pcs) with flat/elastic washer on the rotary
gear.
9. Lift the gas spring assembly while turning the rotary gear forward, take out all cables and lines
from rotary gear shedding, and pull out the gas spring assembly from the main body.
Install Gas Spring Assembly
1. Make the new gas spring assembly stand with rotary gear facing floor, and use a manual
Philips screw driver to push check valve to make the gas spring extend about 150-180mm.If
the gas spring extends to maximum length, you should compress it 10-30mm backwards.
