Mindray DP-10 User Manual

1-1
1 System Basics
The system is intended for diagnosis of human liver, gallbladder, spleen, kidney, pancreas,
bladder, ureter, uterus, uterine appendages, small parts and pregnant women in hospitals and
clinics.
This chapter introduces the system structure, control panel, basic elements of software
interface and general operations of the elements.

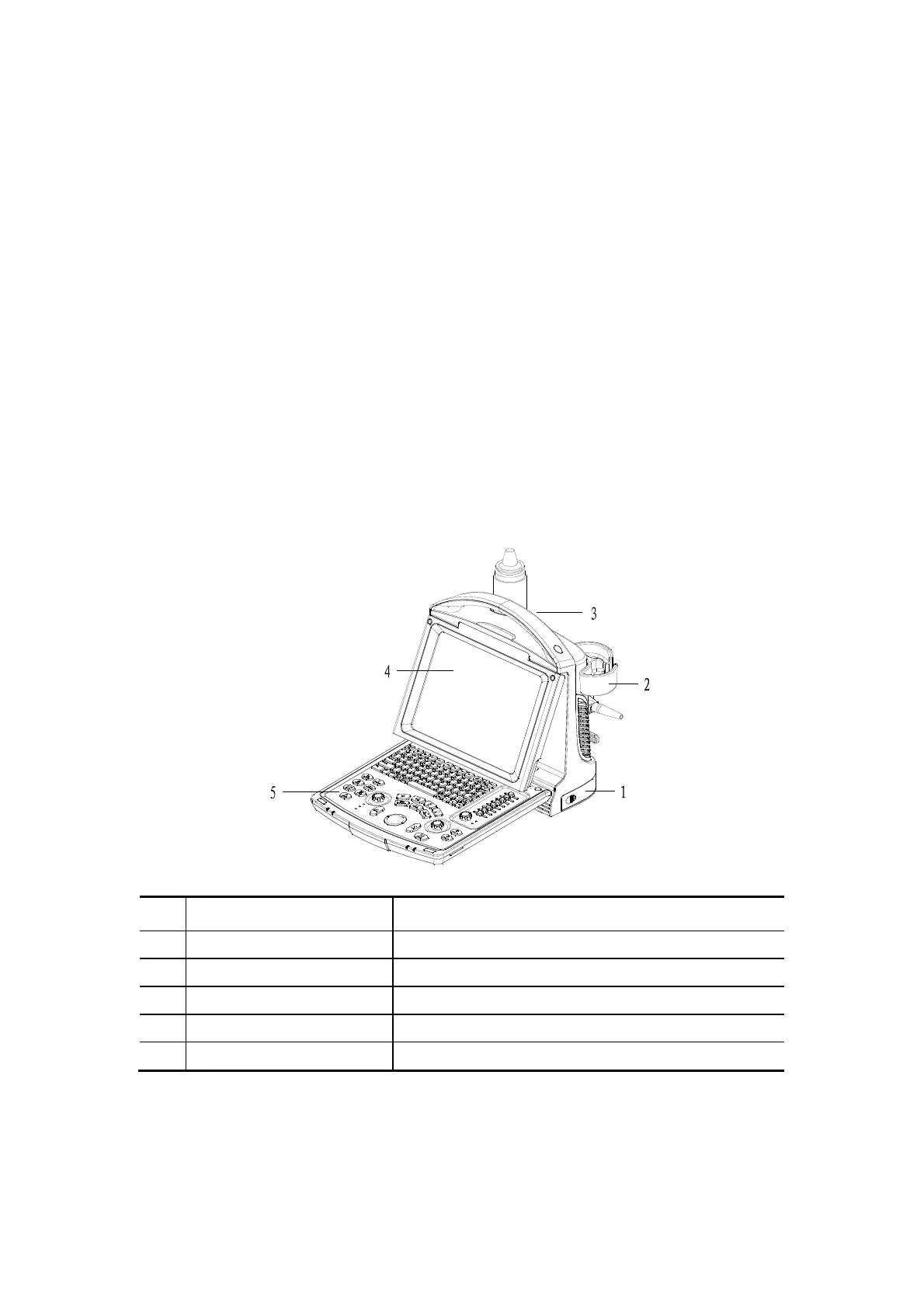

1.1 Structure
No. Part Description
1 Battery cover /
2
Probe holder
Used to place probes temporarily
3
Handle
Used to lift the machine
4
LED monitor
Used to displays the image and parameters
5
Control Panel
Operate the system

Mindray DP-10 Specifications

General

Gray Scale	256 levels
Weight	5.5 kg
Imaging Modes	B, B/B, 4B, M
Frequency	2.0 to 10MHz (depending on the transducer)
Cine Loop	256 frames
Power Supply	AC 100-240V, 50/60Hz
Image Storage	Built-in storage, USB flash disk
