Transducers and Biopsy
12-22

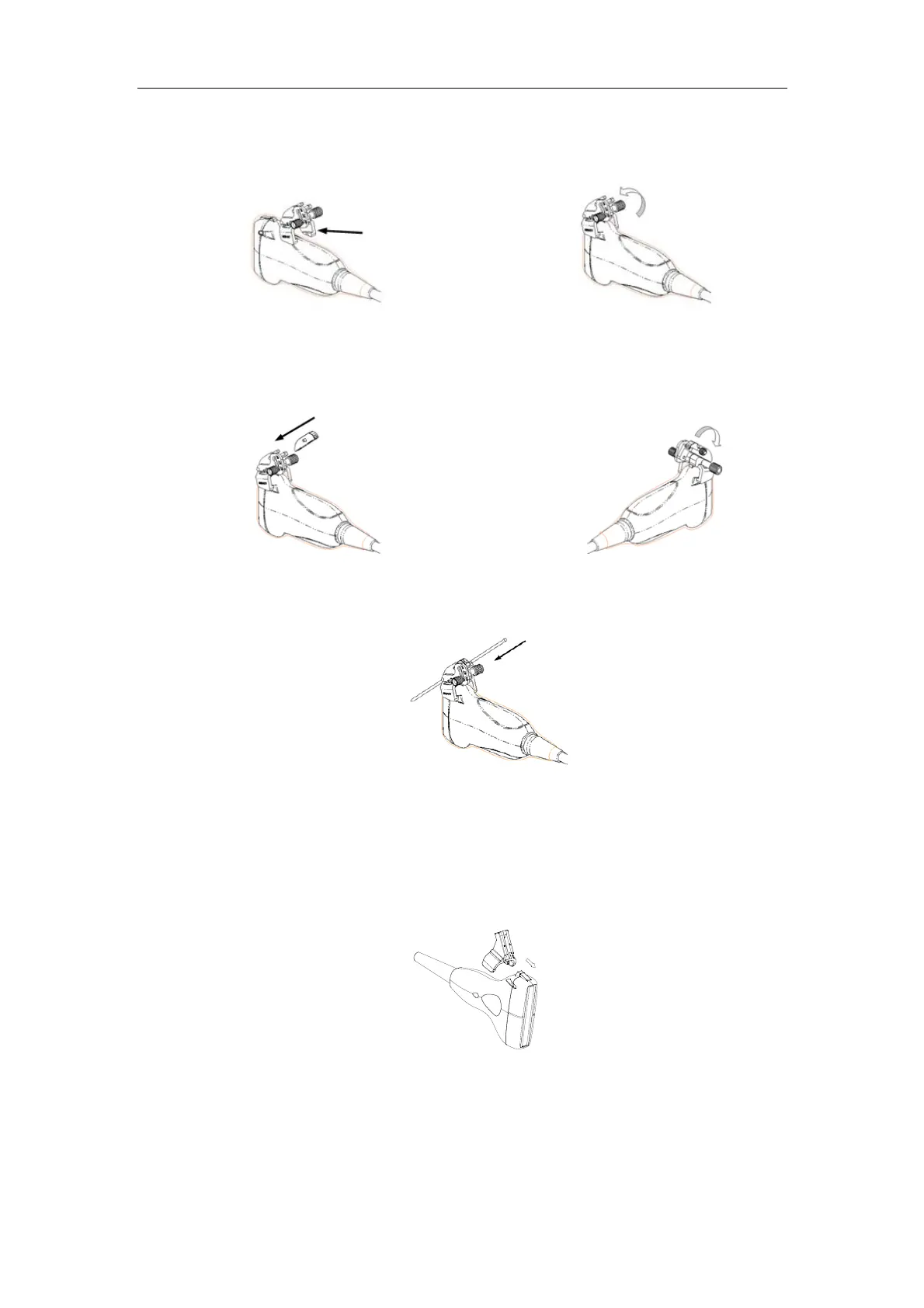

2) Hold the transducer by one hand, select the proper needle-guided bracket, and hold
it with the other hand. Match the groove and tab with the tab and groove of the
transducer respectively. Amount the bracket onto the transducer.
3) Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the transducer.
4) Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
5) Screw the nut of the block to secure the block.
6) Insert a biopsy needle with the same specification as that of the guiding block into
the hole of the guiding block.
Plastic/needle detachable needle-guided bracket:
1)
Put on the sterile transducer sheath.
2) Hold the transducer by one hand, select the proper needle-guided bracket, and hold
it with the other hand. Align the narrow end tab of the needle-guided bracket with the
groove of the transducer, then push the needle-guided bracket forward, making the
tabs and the grooves of the needle-guided bracket to match with the grooves and
tabs of the transducer.
3) Check manually to confirm that the needle-guided bracket is securely installed on
the transducer.
4) Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
