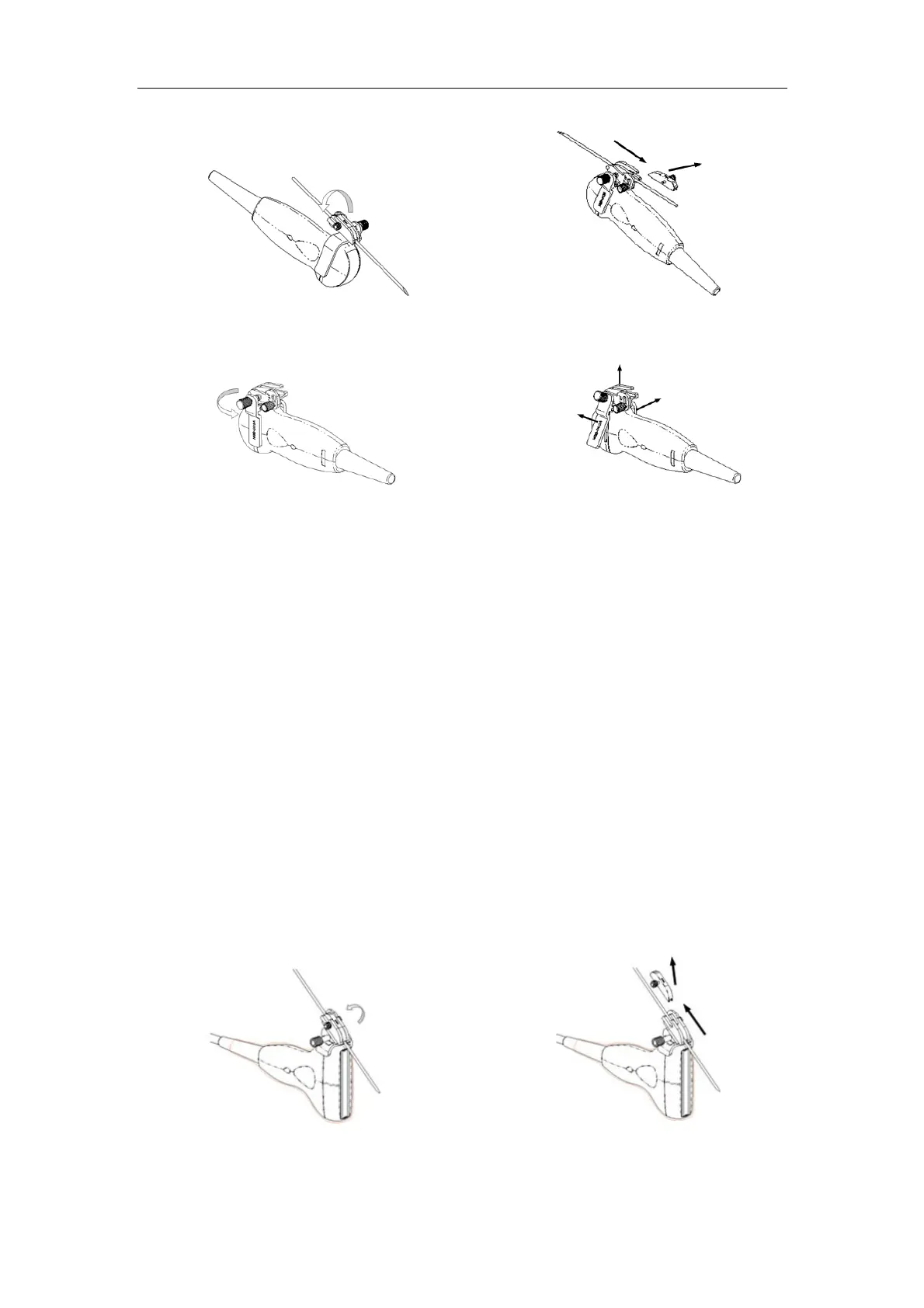

2) Separate the residual part of the needle-guide bracket and the transducer from the
needle.
3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
Metal/needle un-detachable needle-guided bracket:
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
NGB-004 metal/needle un-detachable needle-guided bracket:
Hold the transducer in the left hand, unscrew the locking nut with the right hand to open
the retaining clamp, and then raise the needle-guided bracket to separate the locating
bulge from the locating grooves.
NGB-005 metal/needle un-detachable needle-guided bracket
Hold the transducer and the needle-guided bracket, open the grip knob of the
needle-guided bracket.
NGB-012
Metal/needle detachable needle-guided bracket:
1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
2) Separate the residual part of the needle-guide bracket and the transducer from the
needle.
