4.1 PM-7000 Disassembling/Assembling
4.1.1 Exploded View of PM-7000

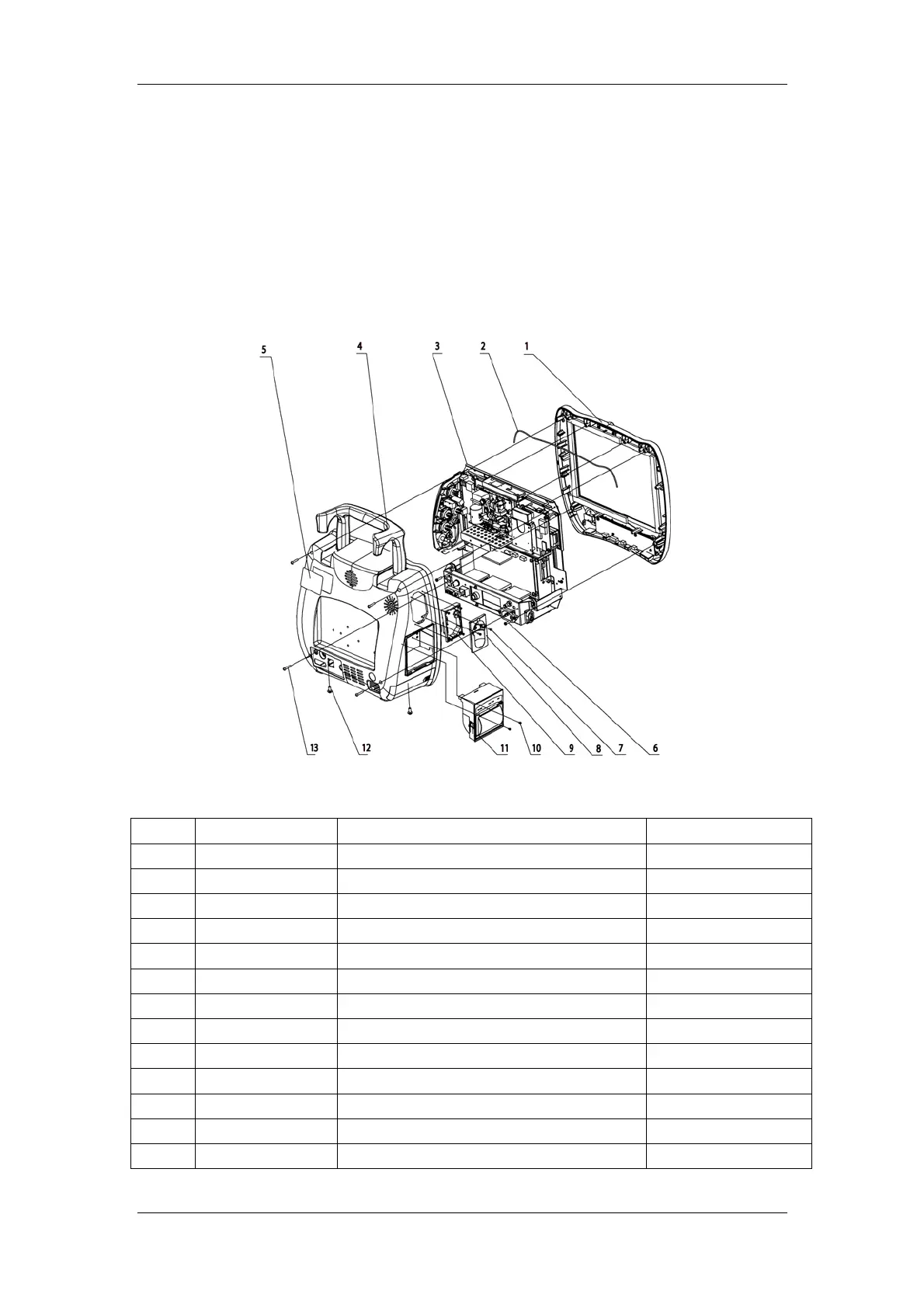

Figure 4-1 Exploded view of PM-7000
NO Material code Part & Specification Quantity
1 7001-30-67413 Front bezel assembly 1
2 0000-10-10876
Hose (φ1.5mm)
0.33
3 7001-30-67452 Main support assembly 1
4 7001-30-67450 Rear housing assembly 1
5 900E-20-05085 Label 1
6 M04-000305---
Cross head tapping screw PT3×12
6
7 M04-051003---
Cross head tapping screw PT2×6
6
8 M02A-3025913 Water trap socket assembly 1
9 M02A-20-25906 Water trap support 1
10 M04-004012--- Cross head screw 2
11 TR6C-30-16654 TR60-C recorder 1
12 M04-004014---
Cross head screw M4×10
2
13 M04-051002---
Cross head screw M3×16
4
