Mindray PM-7000 - Rear Housing Assembly

Chapter 4 Disassembling/Assembling & Troubleshooting
51
10 7000-20-24356-51 Silicon button 1
11 7000-20-24368 Button fixture 1
12 M04-003905---
Cross head tapping screw PT3×6
2
13 DA8K-20-14416 Connecting wires for encoder 1
14 7001-30-67441 Button board 1
15 M04-003105---
Cross head tapping screw PT3×8
6
4.1.4 Rear Housing Assembly

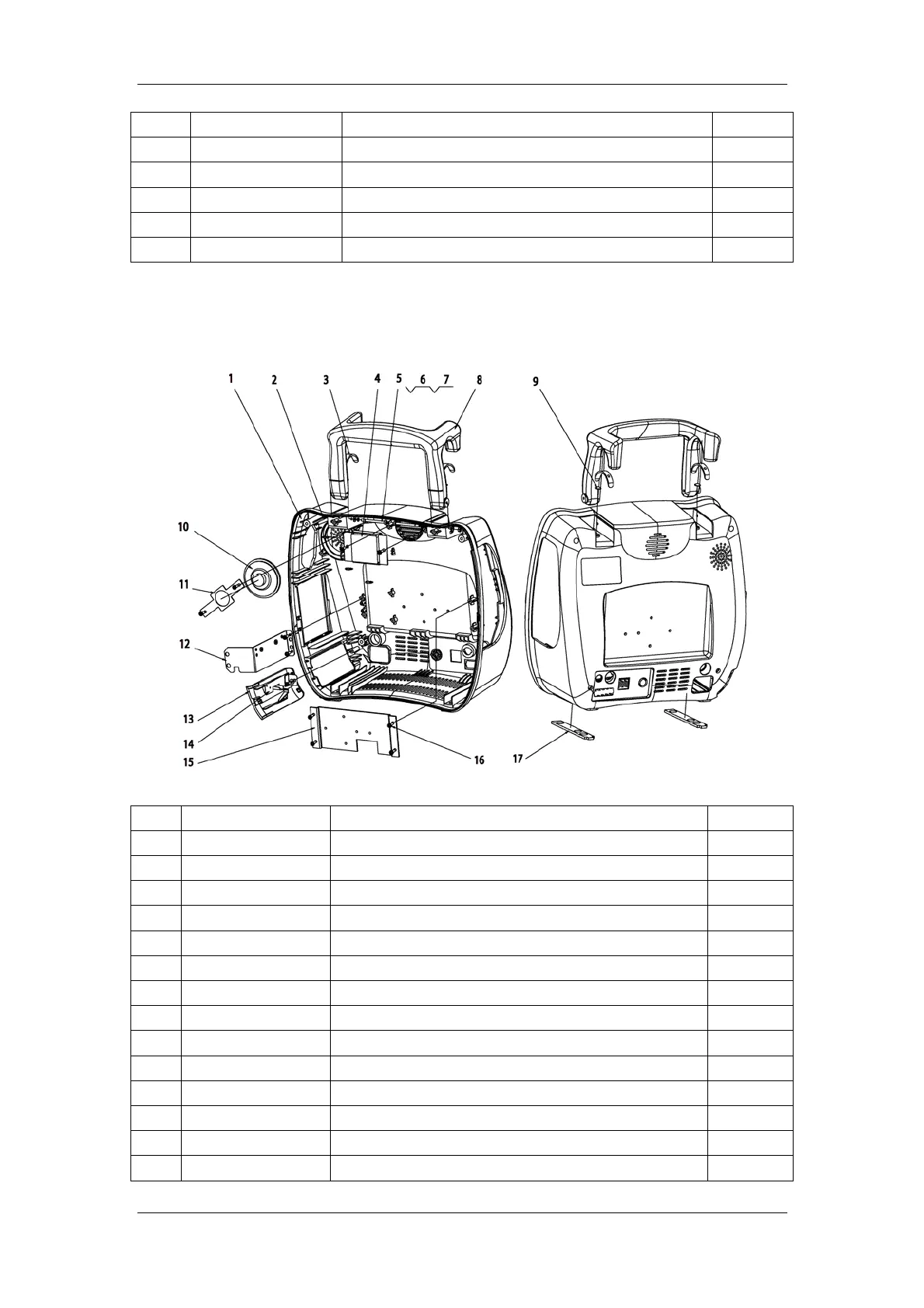

Figure 4-4 Rear housing assembly
SN P/N Description Qty
1 7000-21-24435 Rear housing 1
2 M04-000301--- Stainless steel nut 2
3 7000-20-24435 Non-skid strip 2
4 9200-30-10522 Fan assembly 1
5 7000-20-24370 Handle shaft 2
6 M04-000802--- Flat washer 3
7 M04-000104--- Spring washer 2
8 7000-20-24359 Handle 1
9 DA8K-10-14410 Buffer 2
10 9200-21-10633 Speaker and connecting wires 1
11 9200-20-10620 Speaker fixture 1
12 7000-20-24388 Recorder support 1
13 7000-20-24361 Battery door 1
14 7000-20-24376 Battery door link 1
