Chapter 4 Disassembling/Assembling & Troubleshooting
52
15 9200-20-10622 Mounting plate 1
16 M04-003105--- Cross head tapping screw PT3×8 11
17 7000-20-24377 Cushion 2
4.1.5 Microstream CO
2
Assembly

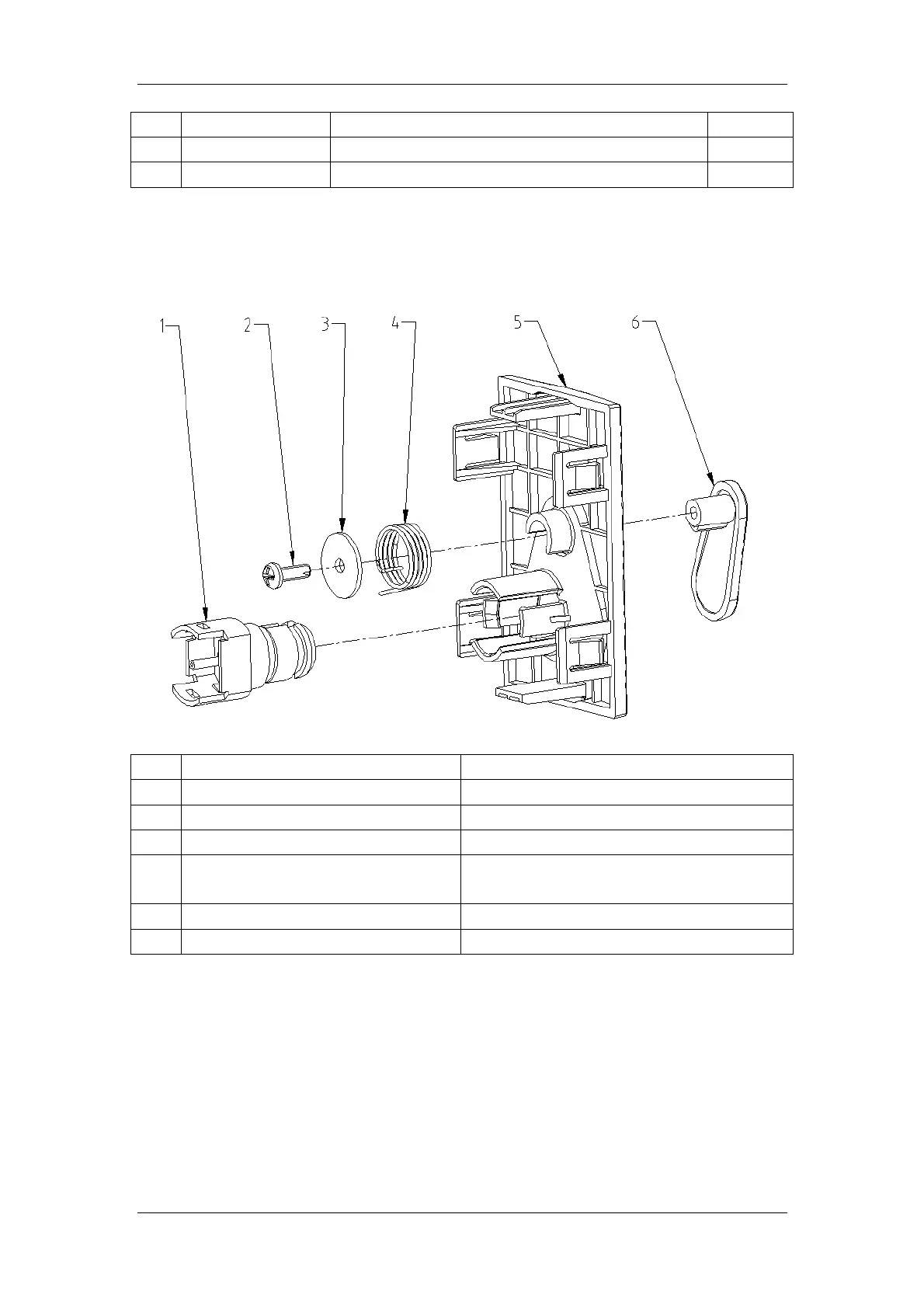

Figure 4-5 Microstream CO
2
assembly
NO Material Code Part & Specification
1
9201-30-35959 Microstream CO
2
connector
2
M04-003105--- Cross-head self-tapping screw 3*8
3
9201-20-36010 Baffle of torsional spring
4
9201-20-35961 Retaining torsional spring of microstream CO
2
connector
5
9201-20-35915 Mounting plate of CO
2
connector
6 9201-20-35914 Baffle of CO
2
connector
