4.1.2 PM-7000 Support Assembly

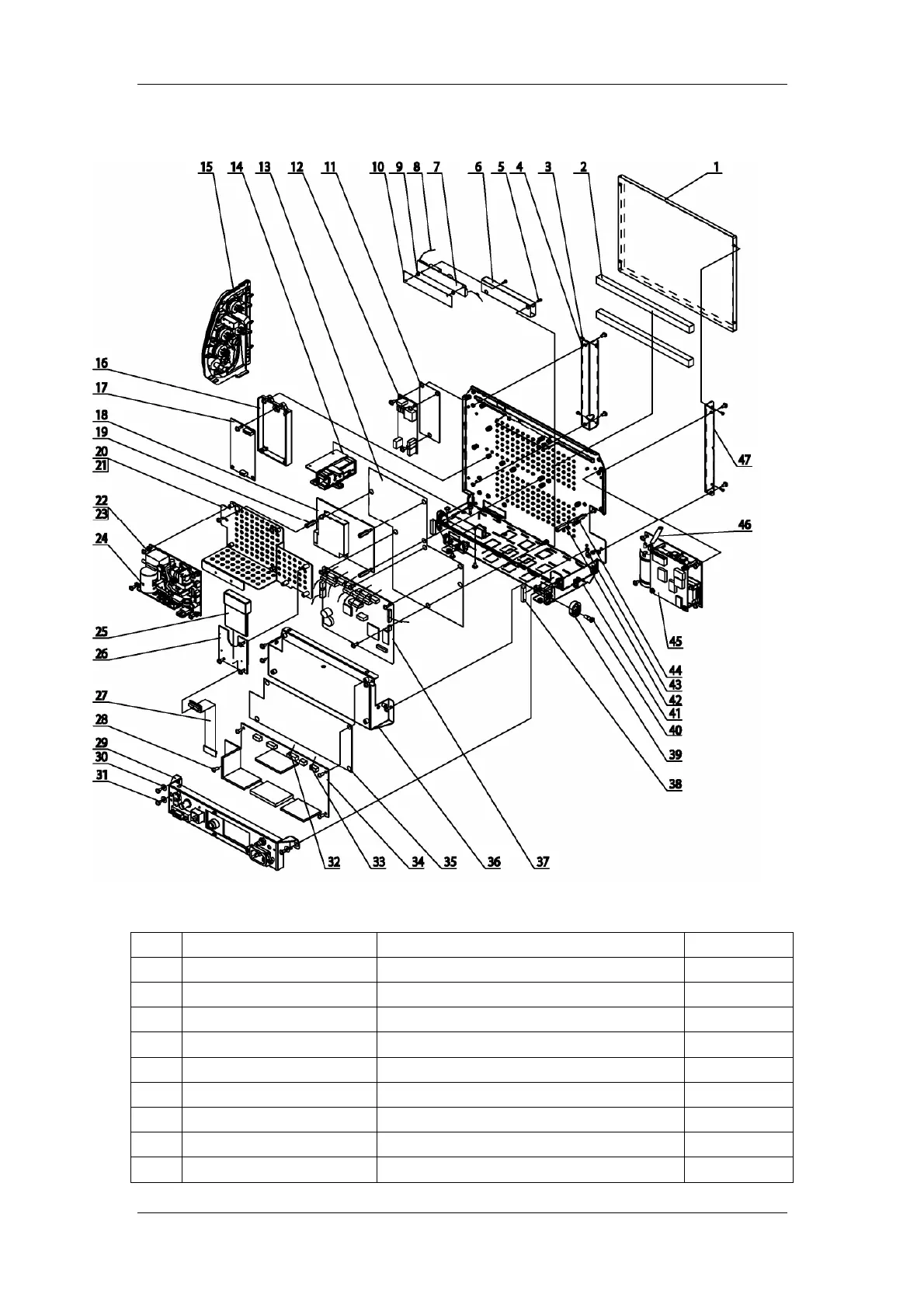

Figure 4-2 PM-7000 support assembly
NO Material Code Part & Specification Quantity
1 0000-10-11021 LCD, TFT, 10.4 inch 1
2 7000-20-24508 LCD pad, AU 2
3 M04-051137---
Stainless steel cross head screw M2×4
4
4 7000-20-24540 LCD support, LG 1
5 M04-002405---
Cross head screw M2×6
2
6 7000-20-24417 Backlight board insulation plate 1
7 0010-10-12096 Inverter 1
8 8000-21-10239 Connecting wire for TFT backlight board 1
9 M90-000002-01 Insulation flat washer 2
To Next Page
