Mindray PM-7000 - Front Bezel Assembly

Chapter 4 Disassembling/Assembling & Troubleshooting
50
52 M02A-20-25909 Communication wire to CO
2
module 1
53 7000-20-24444 Communication wire to IBP module 1
54 7000-20-24439 Communication wire to power board 1
55 7000-20-24438 Power cord 1
56 7000-20-24500 Signal wire to recorder 1
57 7000-20-24443 Communication wire to NIBP board 1
58 9200-21-10454 TFT connecting wire 1
4.1.3 Front Bezel Assembly

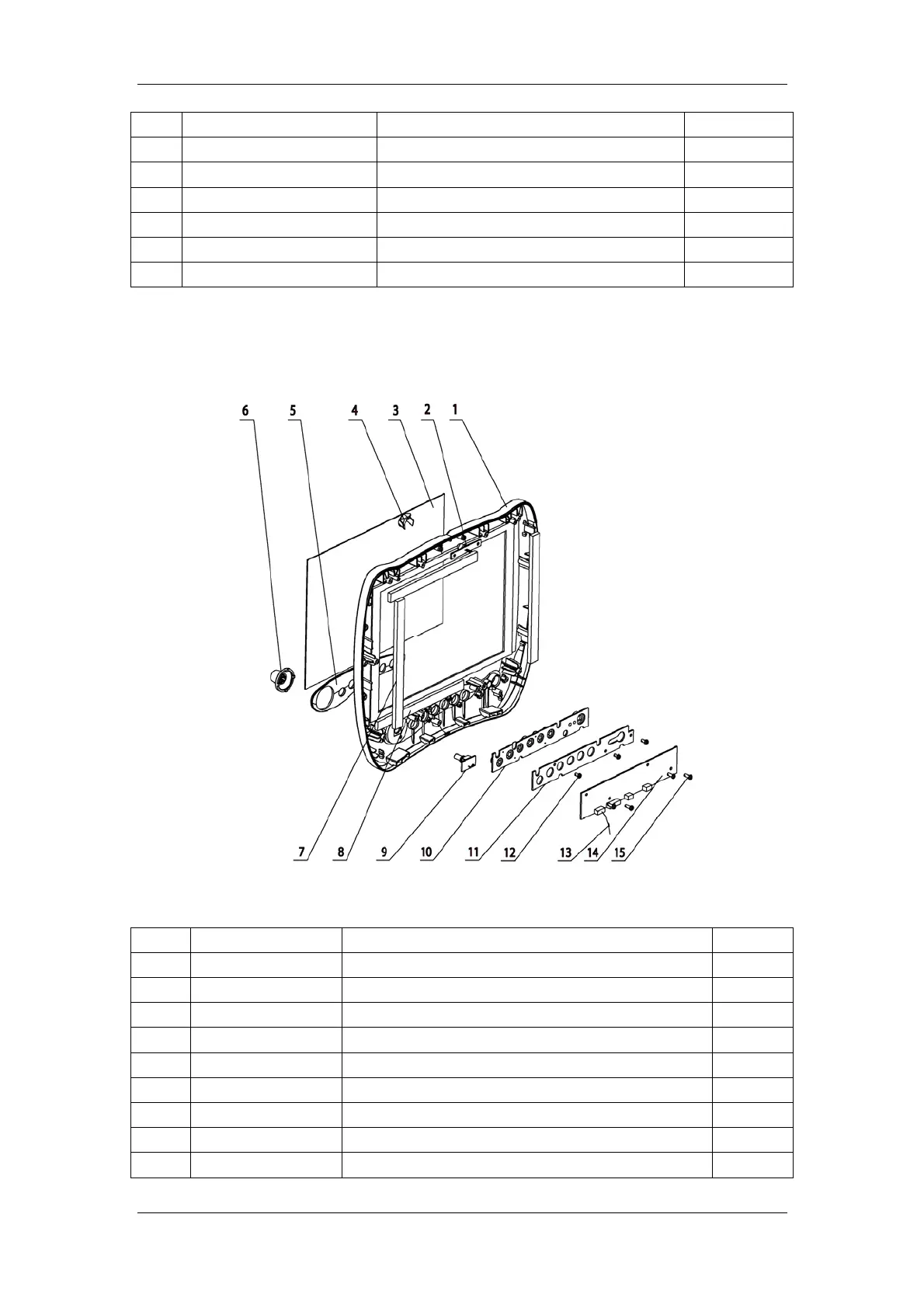

Figure 4-3 Front bezel assembly
SN P/N Description Qty
1 7000-20-24354-51 Front bezel 1
2 9200-30-10701 Alarm light board 1
3 7000-20-24373 Anti-glare screen 1
4 7000-20-24358 Alarm light shade 1
5 7000-20-24357-52 Transparent plate for protecting buttons 1
6 7000-20-24369 Knob 1
7 900E-20-04895 Dust pad 2 2
8 900E-20-04894 Dust pad 1 2
9 6200-30-09774 Screen encoder mount 1
