VS 8/VS 8A Vital Signs Monitor Operator’s Manual 3 - 3
• Make sure that the equipment operating environment meets the specific
requirements. Otherwise unexpected consequences, e.g. damage to the
equipment, could result.
3.4 Setting Up the Equipment
Observance of this manual is a prerequisite for proper product performance and correct
operation. It ensures patient and operator safety.
3.4.1 Installing a Battery
It is recommended to always install a fully charged battery in the monitor to ensure
normal monitoring in case of accidental power failure.
Follow this procedure:
1. Make sure the monitor is off and all cables are disconnected.
2. Lay the monitor down to have access to the bottom of the monitor.

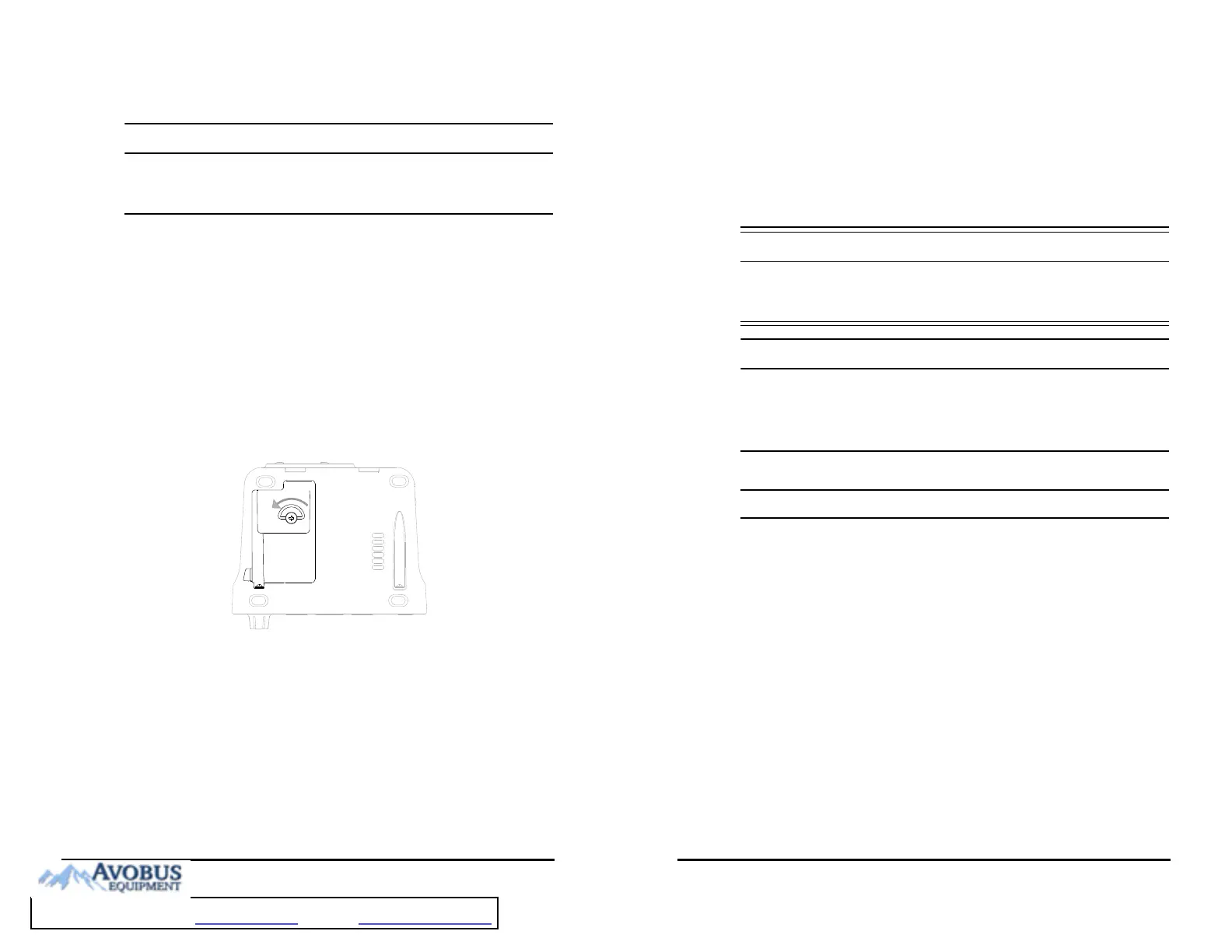

3. Open the battery compartment door by turning the screw counterclockwise.
4. Insert the battery into the battery compartment with the battery terminal out-
wards. Then connect the battery to the connectors on the left of the battery com-
partment.
5. Close the battery door and turn the screw clockwise.
3.4.2 Connecting the AC Mains
The monitor is powered by an AC power supply. Before connecting the equipment to
the AC mains, check that the voltage and frequency ratings of the power line are the
same as those indicated beside the AC power input.
To use the AC power source, follow this procedure:
3 - 4 VS 8/VS 8A Vital Signs Monitor Operator’s Manual
1. Connect the female end of the power cord with the AC power input.
2. Connect the male end of the power cord with a wall AC outlet.
3. Check that the AC indicator is on.
The AC indicator is off if the AC mains is not connected. When AC mains is connected,
the AC indicator is illuminated in green.
• Operate the equipment on battery power if the integrity of the protective
earth conductor or the protective earthing system in the installation is in
doubt.
• Always use the accompanying power cord delivered with the monitor.
• Before connecting the equipment to the AC mains, ensure that the voltage
and frequency ratings of the power line are the same as those indicated
beside the AC power input.
• Use the cable retainer to secure the power cord to prevent it from falling off.
3.4.3 Connecting a Barcode Reader
The monitor supports both linear (1D) barcode reader and two-dimension (2D) barcode
reader. The barcode reader is connected to the monitor via the USB connector.
3.4.4 Connecting a Digital Scale
You can connect a HEALTH O METER 600KL-BT scale via the USB connector to obtain the
height, weight, and BMI data of a patient.
3.5 Turning on the Monitor
Before beginning measurement, turn on the monitor, and perform the following
inspections:
1. Check the monitor for any mechanical damage. Make sure that all external cables,
plug-ins and accessories are properly connected.
2. Connect the power cord to the AC power source. Make sure the battery power is
sufficient if the monitor is powered by the battery.
3. Press the power switch to turn on the monitor.
